Automatic Hemp continuous conveyor dryer

Product details
Function:continuous;Application:Food Processing;
Item:Hemp continuous conveyor dryer;Certification:ISO/CE;
Application:spice,herb,vegetable,herb,bean,grain,fruit;Place of Origin:Henan China;
Name:CE Aprove Industrial New Type Continuous mesh belt drying machine;Vegetable drying machine fuel:Diesel,gas,electricity etc.;
Type:Hot Air Furnace;Port:Qingdao Port,Shanghai Port, as you required;
Dimension(L*W*H):12*2*2.5m;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service;
Type:Dryer;Voltage:240V,480V customized;
Weight:2 ton;Material:SS304 belt;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Escrow;Key Selling Points:Automatic;
Condition:New;Power(W):27.95kw;
Packaging Detail:Hemp continuous conveyor dryer can be put into standard container 40HQ;Warranty:1 Year;
Brand Name:Guoxin;Supply Ability:50 Set/Sets per Month Hemp continuous conveyor dryer;
After-sales Service Provided:Engineers available to service machinery overseas;Applicable Industries:Food & Beverage Factory,Farms;
Capacity:500-5000kg/h;Design:Fully automatic and continuous drying.;

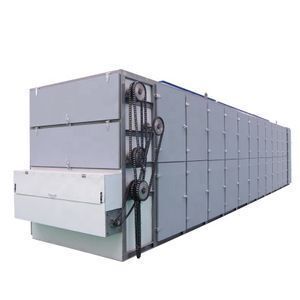

Automatic Hemp continuous conveyor dryer

Brief introduction of Hemp continuous conveyor dryer:

The  Hemp continuous conveyor dryer is widely used for foods, Agriculture products, dehydrated vegetables, traditional Chinese medicinal materials,  fodder and chemical material and other processing industry.





The working principle of Hemp continuous conveyor dryer:

Hemp are fed by the feeding conveyor to the dryer. The material passes from the first layer to the last layer via the conveyor belt, it use hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the Hemp continuous conveyor dryer. After drying, the dried material is conveyed by the discharge conveyor.





The structure of Hemp continuous conveyor dryer:

1.Feeding conveyor

2.Drying system

3.Fan

4.Heat resource

5.Discharge conveyor

6.Control system



Technical Parameters of Hemp continuous conveyor dryer:

Model No.

GX4-6

GX4-8

GX4-10

GX4-12



Dimension L*W*H (mm)

6000*2000*2300

8000*2200*2300

10000*2000*2300

12000*2000*2400



Layers

4

4

4

4



Drying area (m2)

29

45

57

69



Drying capacity of fresh hemp leaf

(30-40 ℃)

100-150   kg/hr

200 kg/hr

300   kg/hr

400 kg/hr




Total Power

15kw

19kw

26kw

27kw




Fan Power

11kw

15kw

18kw

22kw




Operating hours

24 hrs continuous working



Drying temperature

0-120 ℃

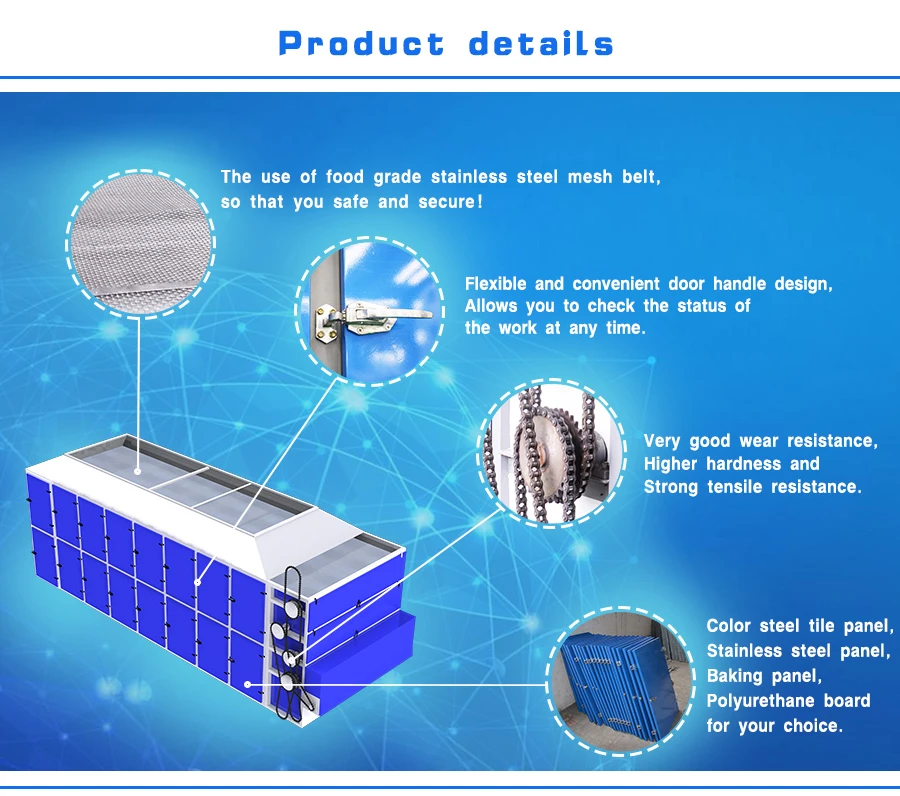

The details of Hemp continuous conveyor dryer:



The advantage of Hemp continuous conveyor dryer:



1. Big Capacity, Automatic Continuous work

2. Low temperature, big air volume drying, no lose on CBD.

3. Material moving in multi layers for drying, excellent drying quality.

4. Clean drying, not direct heating, heat exchange system





Options for Material for Hemp continuous conveyor dryer:



1. Color Steel tile

2. Stoving varnish paint steel

3. Stainless Steel





Our Techinical Support for Hemp continuous conveyor dryer:

1. After sale center in Oregon

2. More spare parts free when delivery

3. One year warranty





Final product for Hemp continuous conveyor dryer

Hemp biomass, CBD oil, CBD isolate or capsule ect.



Customer visit our factory to check Hemp continuous conveyor dryer:

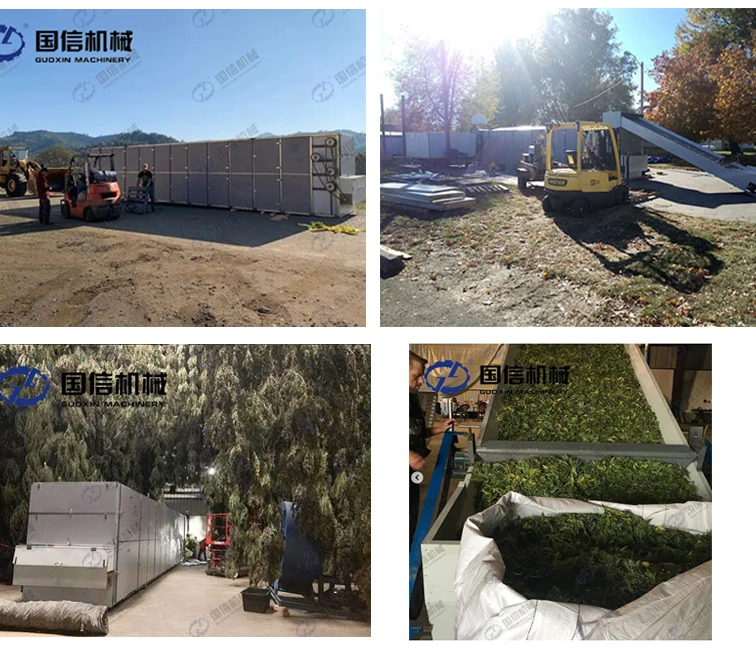

The working sites of Hemp continuous conveyor dryer:



About GUOXIN:





After sales service:

Guoxin Machinery Factory will dispatch one engineer to buy's working sites help buyer install drying processing line until the dryer get good effect.then our engineer will back to China.





If you are interested in our Hemp continuous conveyor dryer, please contact.
