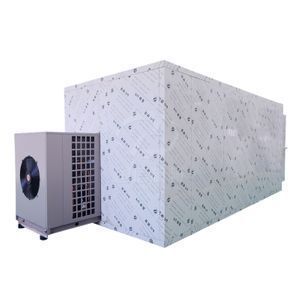

Energy saving heat pump drying machine moringa leaves tea leaves hemp drying oven

Product details
Weight:180kg;Supply Ability:20 Set/Sets per Month hemp drying oven;
Main parts:Heat pumpdryer+drying;Power(W):customer made;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,hemp drying oven can be paid by Escrow, credit card;Trolley Type:Integral/Split type;
Drying model:300kg/600kg/800kg/1200kg;Trolley Material:Galvanized/Stainless steel;
Voltage:380/220;Name:hemp drying oven;
After-sales Service Provided:Engineers available to service machinery overseas;Certification:CE ISO;
Packaging Detail:hemp drying oven by wooden box Machine Size: 1180*680*1800 mm Wooden packing size: 1250*770*1940 mm;Condition:New;
Number Of Trays:96/144/288;Item:hemp drying oven;
Warranty:one year;Key words:hemp drying oven;
Dimension(L*W*H):3500*2100*2200;Number Of Trolley:4/6/12;
Place of Origin:Henan China;Port:Qingdao port, China;
Brand Name:GUOXIN;Type:Tray Dryer;
Model Number:GXRB-3P/7P/14P;

Energy saving heat pump drying machine moringa leaves tea leaves hemp drying oven





Product Description



Equipment Introduction of hemp drying oven

    The heat-pump drying oven is suitable for drying materials that are mainly resistant to range of temperatures between 20-80°C during the drying process, or although the temperature tolerates higher, but the use of a heat pump to dry more energy-efficient or safe materials. Such as: wood, cereals, seeds, edible fungi, medicinal herbs, seafood, preserved meat, fruits and vegetables, tobacco leaves, paper Buddhas and so on.





 Working Principle of hemp drying oven

    Untilize refrigerant compression through the compressor to form the high temperature and high pressure gas.The gas went into the condenser to release heat, the heat will be sent into the chamber by the circulating fan , to heat the air in the chamber(The maximum air temperature up to 75 ℃). Then the air temperature rises, the moisture in the drying material will gradually evaporate, and then exhaust of the moisture by the fresh air dehumidification system,to achieve the drying effect.





The details of the hemp drying oven





The advantages of the hemp drying oven



        l Wide temperature range, high efficiency

l High energy display control

l High precision configuration

l Environmentally friendly

l Energy saving

l Drying quality is good

l Save time







The application of the hemp drying oven









The parameters of  hemp drying oven

Model

GXRB-3P

GXRB-7P

GXRB-15P

Rated Heating Capacity(kw)

10.5

18

36

Draining Capacity(kg/hr)

12

25

50

Host Input Power

2.8 kw

6.5kw

13 kw

Host Rated Current

5.5A

11.2A

22.4A

Compressor Form

                              Enhanced vapor injection fully-closed vortex type

Compressor Refrigerant

R134a

Host Size(L*W*H)(mm)

1675*860*1280

1930*1150*1315

2220*1330*1553

Weight Of Host

180kg

292kg

468kg

Board Room Size(L*W*H)

3500*2100*2200

4900*2200*2200

8000*2800*2200

Number Of Fans

6

8

24

Trolley Size(L*W*H)(mm)

1000*750*1750

1200*875*1750

1200*875*1750

Number Of Trolley

4

6

12

Tray Size(L*W*H)(mm)

730*430*70

600*800*75

600*800*75

Number Of Trays

96

144

288

Tray Material

PP polypropylene /304 stainless steel

Company Information



     Gongyi Guoxin Machinery Factory has passed the ISO9001 international system certification, the main products through the CE certification, with self-import and export rights. The company can also design, customize and install projects for customers on site. In order to meet the needs of enterprise development and market competition, the company has built a first-class modern production base and a global sales and after-sales network. Customers are located all over the country and exported to the United States, Britain, Australia, Malaysia, Indonesia, South Korea, Bangladesh and Russia. , India, Africa, Europe, Southeast Asia and other countries.





Customer Visit





Our Services



Packaging & Shipping

Contact me

    If you have any questiongs about the hemp drying oven,please contact me.
