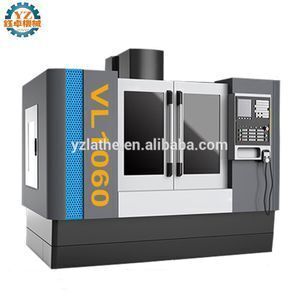

Wholesale China disk auto-tool changer cnc milling machine

Supplier: Taian Yuzhuo Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Chao Han
Price: $13000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Shandong China;	guideways:	Taiwan linear guideways;
Port:	Qingdao/shanghai/tianjin/ningbo/guangzhou;	Packaging Detail:	cnc milling machine frame: exporting standard package, water proof,and anti-rust. fumigation-free;
Condition:	New;	Power(W):	3.7 kw;
Mobile:	18263830915;	CNC CONTROLLER:	Fanuc/Siemens/Mitsubishi/Syntec;
tool changer:	funnel type/ arm type;	Model Number:	VB850;
CNC or Not:	CNC;	Dimension(LWH):	1800x1700x2100;
Type:	Vertical;	Cutting mode:	Machenical;
Product name:	cnc milling machine frame;	Warranty:	1 Year;
Type:	Vertical;	Certification:	CE ISO;
Brand Name:	YZ CNC;	Supply Ability:	30 Set/Sets per Month disk auto-tool changer cnc machining center;
spindle:	Taiwan 8000 rpm spindle;	Color:	Custom-made;
Payment Terms:	L/C,T/T,Western Union;	Weight:	2500kg;
After-sales Service Provided:	Engineers available to service machinery overseas;	lubrication:	auto lubrication;
Voltage:	380V 50HZ /220V 60 HZ;

Wholesale China disk auto-tool changer cnc milling machine

VB850---Box guideways in 3 axes
Travel	X axis	800mm
	Y axis	500mm
	Z axis	500mm
	Spindle nose to table	120-620mm
	Spindle nose to column	581mm
Feed	max X rapid feed	20m/min
	max Y rapid feed	20m/min
	max Z rapid feed	20m/min
	Cutting feed	1-10m/min
	Torque	X:12N.m Y:12 N.m Z:20N.m
Table	Table size	1000×500mm
	Max load	500Kg
	Table surface to floor	840 mm
	T slot	3×18×150mm
Spindle	Type	Belt
	Speed	8000 rpm
	Spindle taper	BT40
	Main motor	7.5KW
Accuracy	Accuracy (JIS)	±0.005/300mm
Accuracy	Repeatability (JIS)	±0.003mm
Other	Frame Weight	3000 Kgs
Other	Frame Size	2300×1800×2000

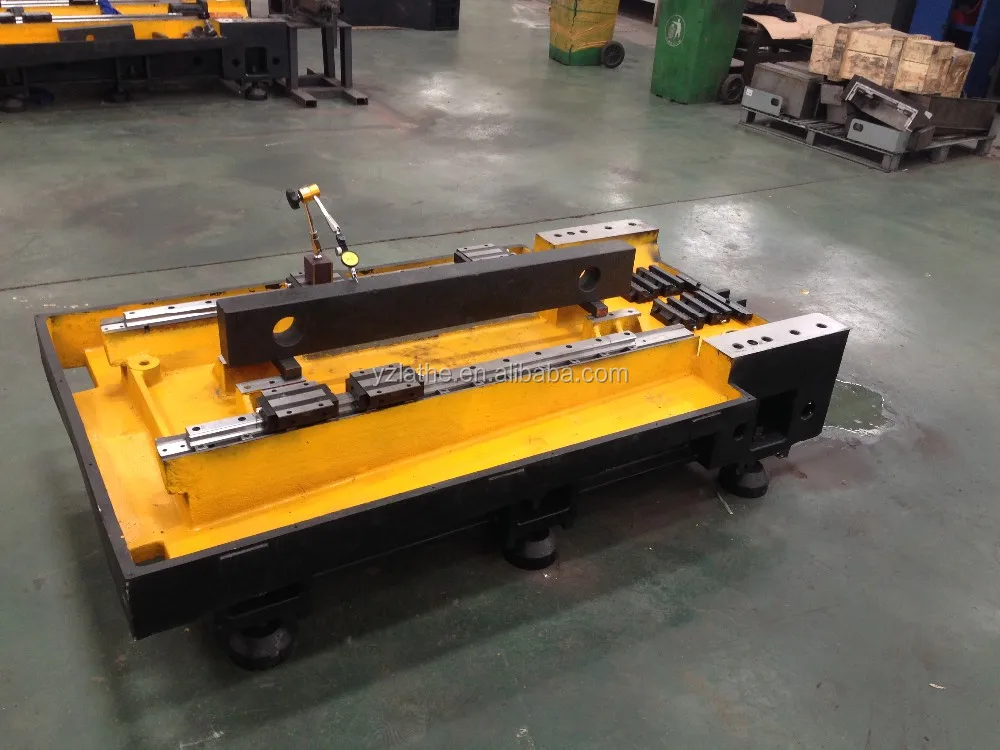

1,Finite Element Analysis

The structural parts are analyzed and designed by the advanced Finite Element Analysis.It provides a detailed analysis for structural stress/strain conditions,and ensures excellent machine rigidity and lifetime stability.

2,Pretensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.

3,The endface of spindle stock,screw support faces and block contact faces are fully Hand --scraped to increase machining accuracy and feeding smoothness.

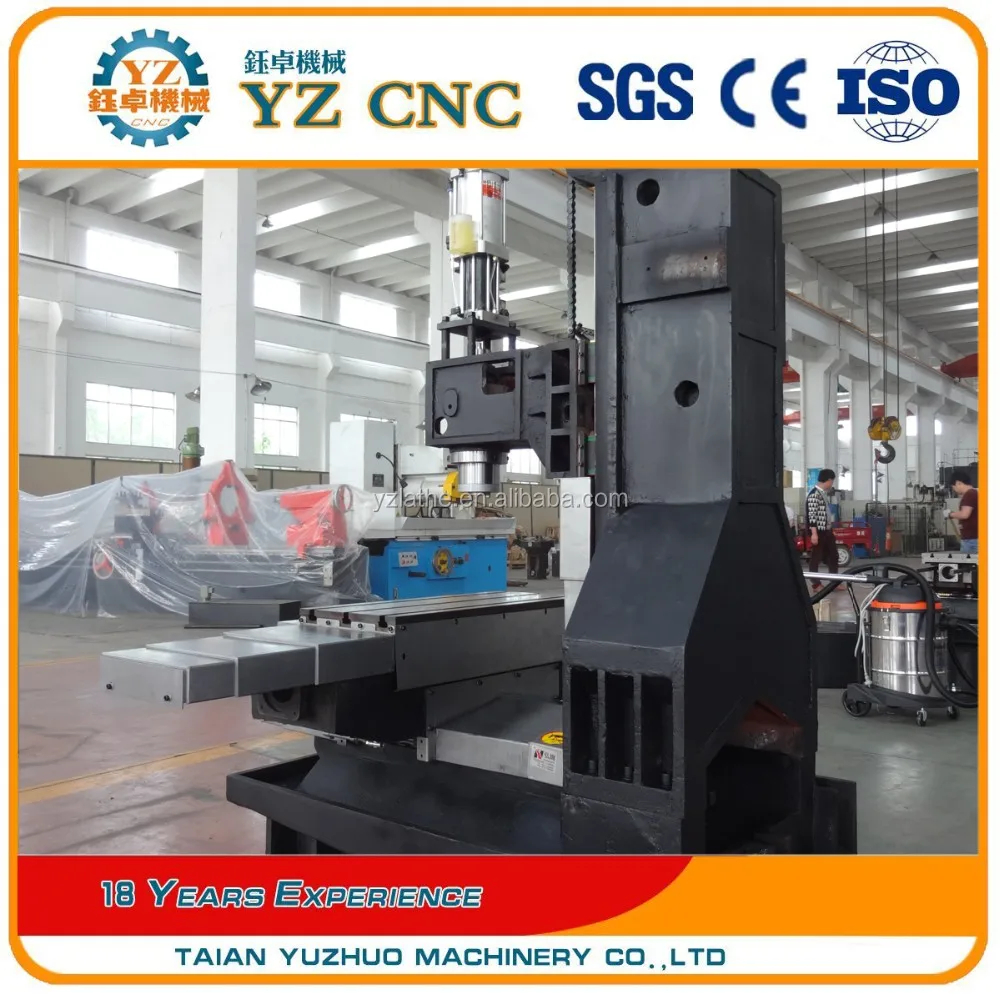

4,The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and precision

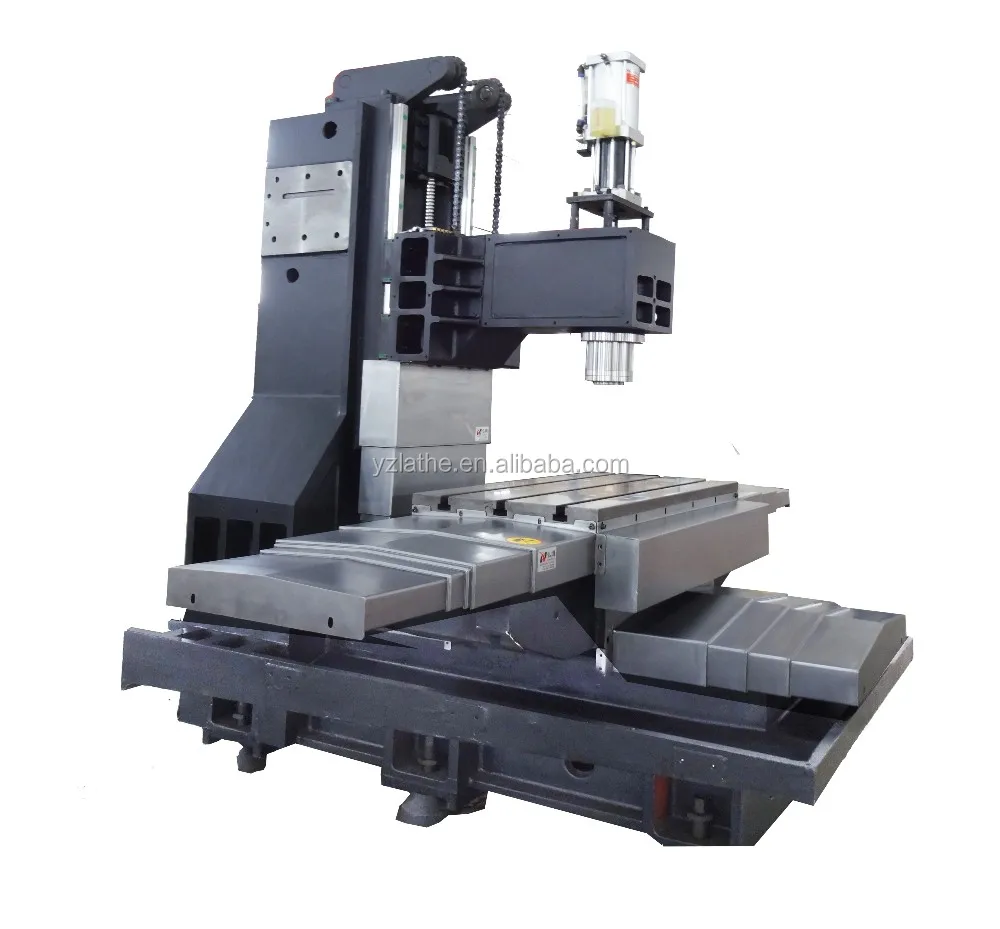

5,Over sized column and bed ,assuring extra high rigidity of machine frame

1,We are dedicated to provide customers with the best, highly value added machines.

2,We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools.

3,We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services.

4,Our dedication to the global marketplace will create a new era of CNC machine tools.

5,Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward.

We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
