Precision: | High Precision; | Payment Terms: | L/C,T/T,Western Union,Trade Assurance; |
Port: | Qingdao/Shanghai/Ningbo/Guangzhou; | Supply Ability: | 80 Unit/Units per Month Horizontal Small Lathe Machine CNC Mini Bench Lathe; |
Model Number: | CK0640; | Delivery Detail: | Shipped within 20 days after receiving payment.; |
Automatic Grade: | Automatic; | Packaging Detail: | Horizontal Small Lathe Machine CNC Mini Bench Lathe: Exporting standard package, water proof, anti-rust and fumigation-free.; |
Type: | Horizontal; | Voltage: | 380V/ 220V/415V; |
Chuck: | 3-jaw Chuck; | Max. Swing Diameter: | 250mm; |
CNC or Not: | CNC; | Brand Name: | YZ CNC; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Turret Type: | Gang-type tool carrier; |
Warranty: | 2 YEARS; | Dimension(L*W*H): | 1550*920*1450mm; |
Place of Origin: | Shandong China (Mainland); | Accessory: | Cutting tools & Tool kit; |
Function: | Metal cutting; | Power(W): | 3kw; |
Certification: | CE ISO; | Weight: | 850kg; |
Condition: | New; | Max swing over bed: | 250mm; |
Control system: | GSK SIEMENS FANUC; | Color: | Custom-made; |
Name: | Horizontal Small Lathe Machine CNC Mini Bench Lathe; |

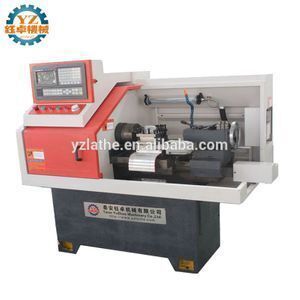

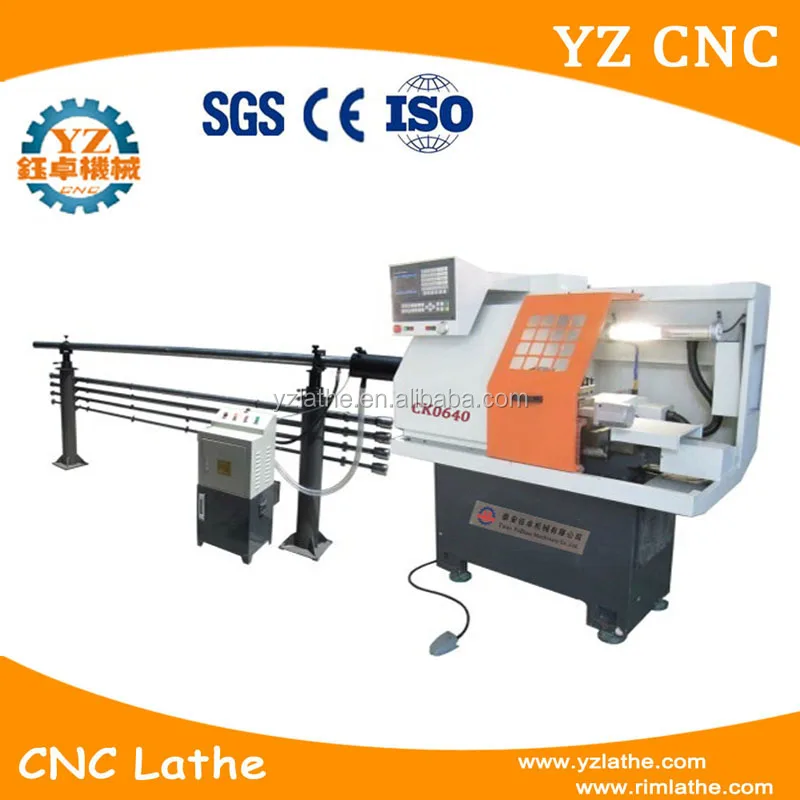

Horizontal Small Lathe Machine CNC Mini Bench Lathe For Sale
Items | CK0640 |
Max. swing dia. over bed | 250mm |
Max. swing dia. over cross slide | 100mm |
Max. processing length | Collet 200mm; Chuck 120mm |
Dia. of spindle | 48mm |
Spindle taper | MT5 |
Through hole dia. of drawing pipe | 40mm |
Spindle speed | 150~2500mm |
Tool holder | Gang-type tool holder |
Tool bar section | 20X20mm |
Main motor power | 3kw |
X/Z axis torque | 4N.M/4N.M |
X/Z axis travel/ stoke | 200/240 |
X/Z axis fast feeding speed | 6/8 m/min |
Tailstock sleeve travel | 100mm |
Tailstock taper | MT3 |
Dimension | 1550mm×920mm×1450mm |
Weight | 850kg |
1- System: GSK928TD-L, servo motor and drive;
2- 3-jaw chuck;

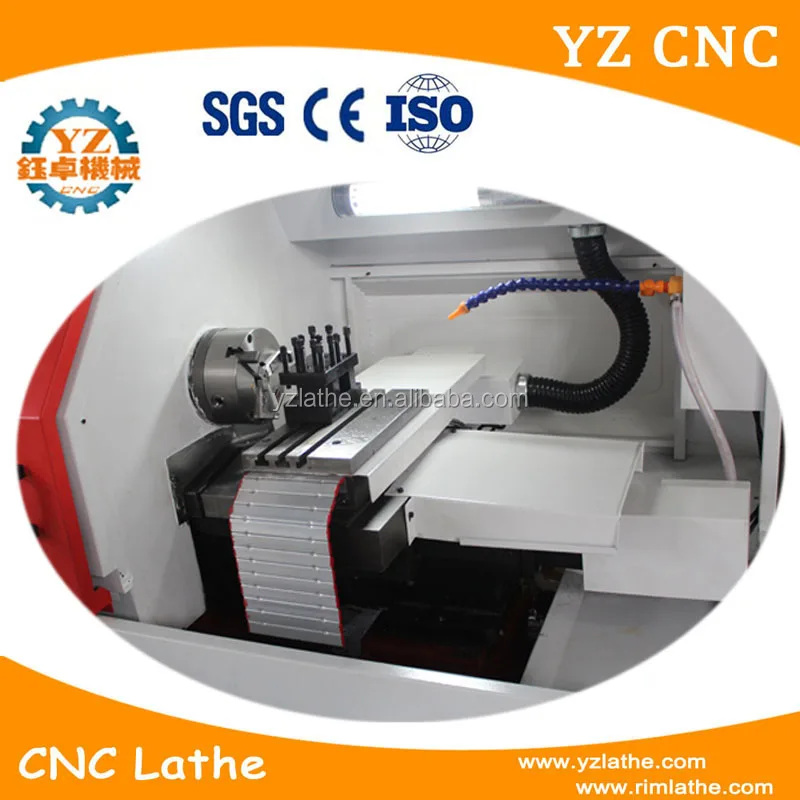

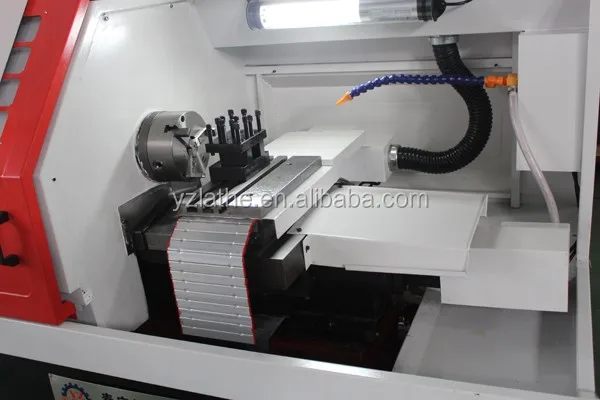

3- Gang-type tool holder;
4- Manual tailstock;
5- Cooling system;
6- Lighten system;
7- Automatic lubrication system.
1- CNC system: Siemens, Fanuc, KND.
2- Hydraulic chuck.
3- Pneumatic chuck.
4- Horizontal six-station turret and eight-station turret.
Aftersales services:
Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
Note :
GSK ,Servo driven, motor and transformer, warranty is 3 years.

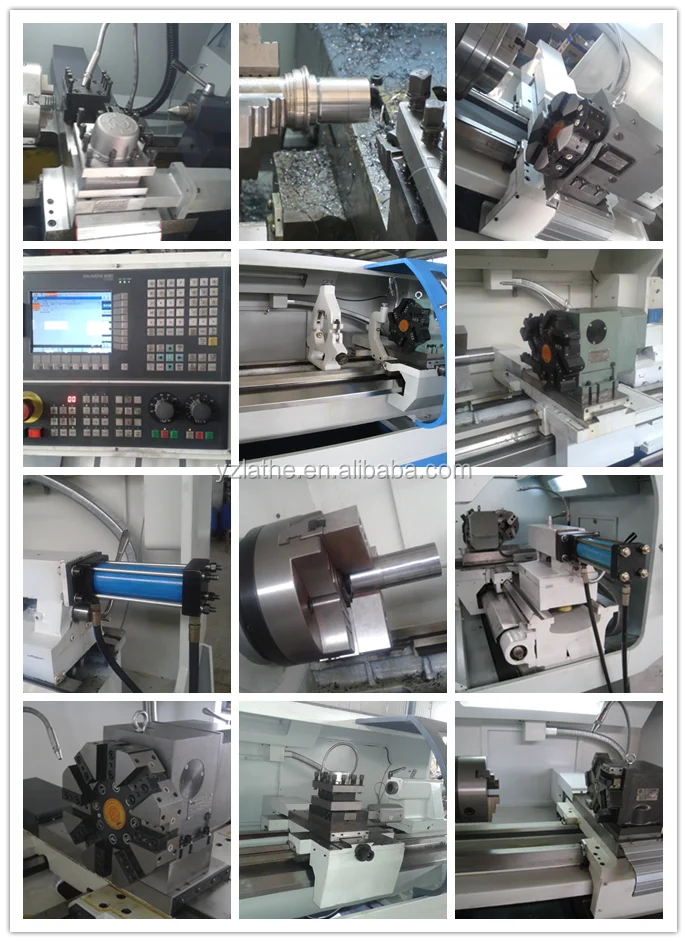

Our Factory
Our Certificate
Tai’an YuZhuo Machinery Co., Ltd (YZ CNC)
Warranty period is one year, life-long after sale service.
Engineers are available to service machinery overseas.
Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
Why choose us?
Reason 1. High Precision
All machinery that are launched by YZ CNC, has tested with laser interferometers,
dynamic balancing instruments and other advanced manufacturing equipment and
measuring instruments
Reason 2. High Stability
All machinery base that launched by YZ CNC have went through aging treatment
for at least two years.
Reason 3. Well-known brand
YZ CNC has been awarded the honor of "Shandong SME", "High-tech Industry",
"Top Ten Industry in Tai'an", "Top 50 CNC Machine Tool Manufacture in China".
Reason 4. Flexibility

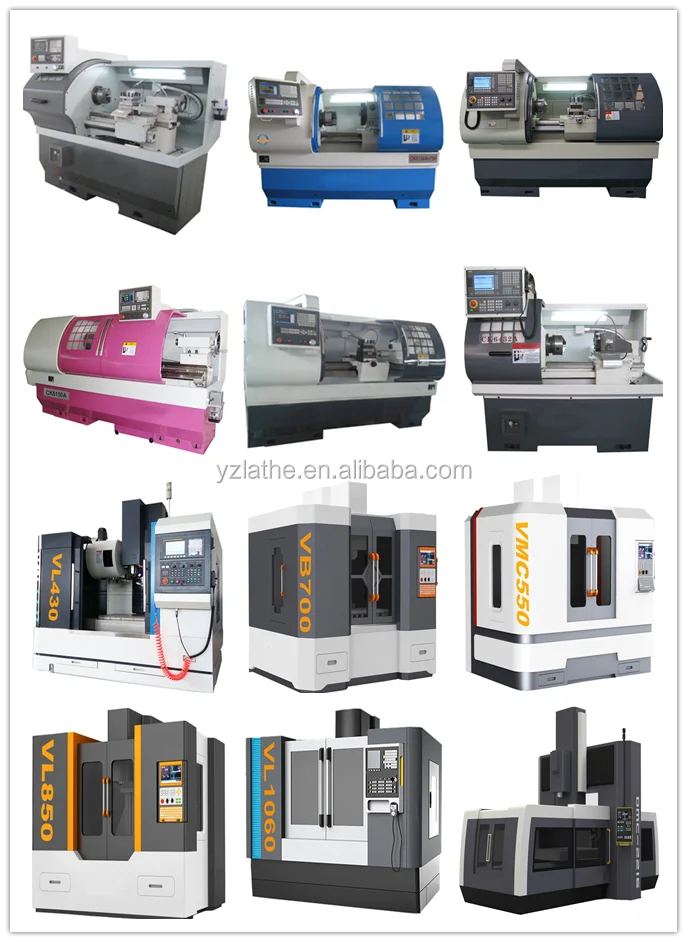

Because we are one of the few machinery company that have product line of more
than 70 CNC machine tools in China, so that we can choose the best CNC machine
tools for our customers. We have a strong R&D team, so that we can design specific
machinery to satisfy customers' requirements.
Reason 5. On time
We always deliver machinery on time so that our customers does not need to waste
extra time to wait. We also respond our customer at the first time in order to satisfy
customers' requirement.
