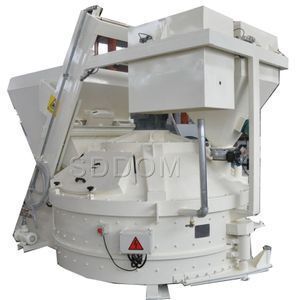

second hand type of Concrete mixer diesel engine ith electric panel for making block on sale

Supplier: Shandong DOM Machinery Equipment Co., Limited
Region: Shandong, China
Contact: Mr Leo Li
Price: $7846.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	2000KG;	Skipper speed:	0.25m/s;
UNIQUE SELLING POINT:	High operating efficiency;	Supply Ability:	5 Set/Sets per Month planetary mixer;
colour:	white;	Reclaiming capacity:	330L;
Applicable Industries:	Building Material Shops,Manufacturing Plant;	Name:	Planetary Concrete Mixer;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;	material:	stainless steel;
Warranty:	1 Year;	Mixing Power:	15kw;
Water Supply Mode:	Water Pump Motor;	Discharge Way:	hydraulic discharging way;
Speed of Mixing Drum:	35r/min;	The max number of discharging door:	3 doors;
After-sales Service Provided:	Engineers available to service machinery overseas;	other model:	MP500,MO750,MP1000,MP1250.....;

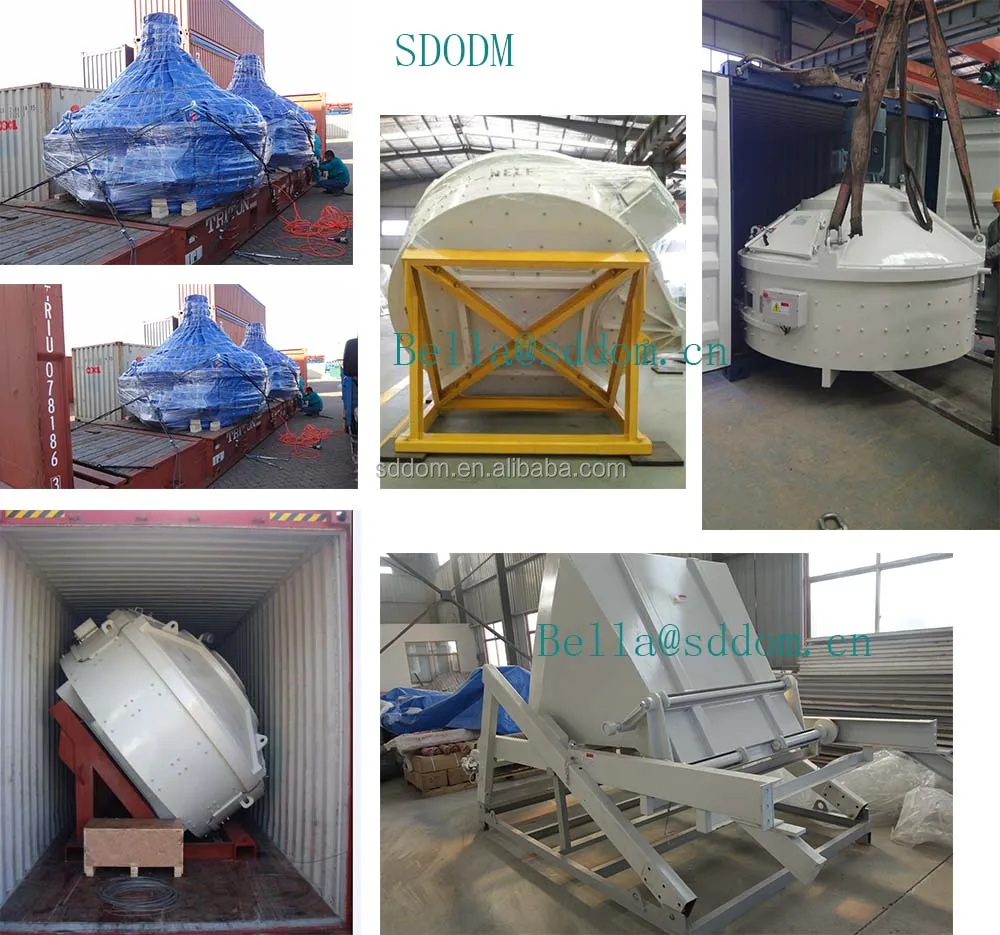

Charging Capacity:	500L;	Packaging Detail:	standard paking in OT;
Condition:	New;	Outline Dimension:	186218501855;
Place of Origin:	Shandong China;	Brand Name:	DOM;
Port:	any port of china;	lifiting powder:	4kw;
Working Cycle Period:	60s;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Motor Power:	Accordingly;	Application:	glass industry ,ceramic industry ,concrete industry;

Concrete mixer diesel engine/concrete mixer electric panel/concrete mixer for making block for sale

mobile concrete batching plant price

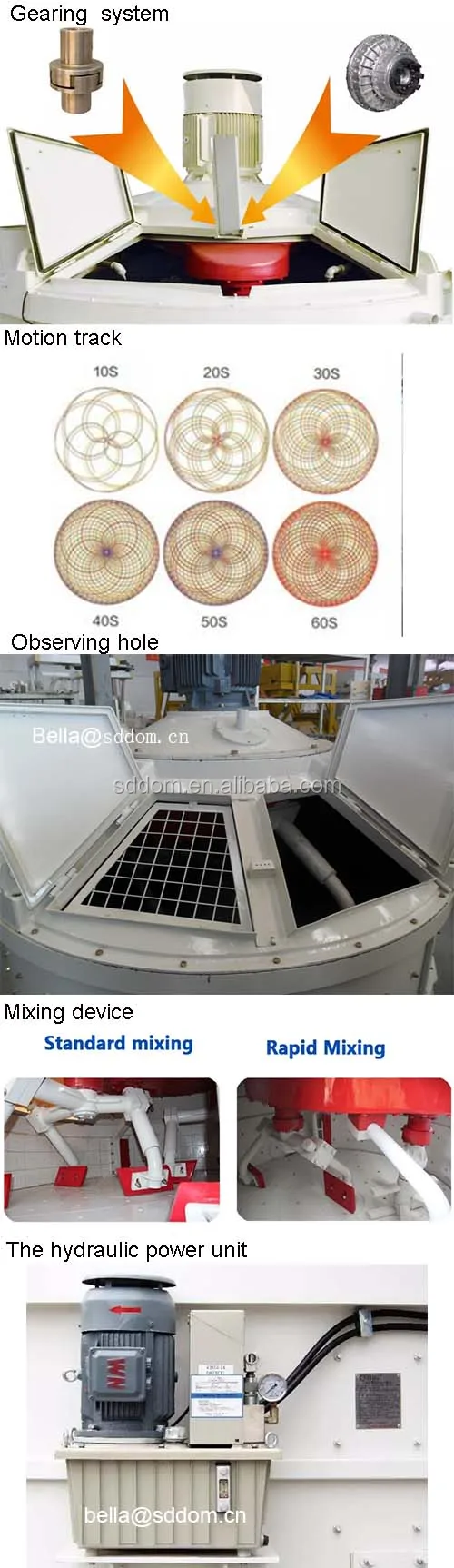

1.Gearing system

Diving system consists of motor and hardened surface gear .The gearbox has lower noise ,

longer torque and more durable. Even in strict productions, the gearbox can distribute power

effectively and evenly to each mix end device, ensuring normal operation, high stability and low maintenance.

2.Motion track

The revolution and rotation on its axis speed of the blades have been extensively studied and

tested to give the mixer a high output without causing the segregation of materials with different

grain size and weight. The movement of the materials inside the trough is smooth and continuous.

As shown in the picture, the blades track covers the whole bottom of the trough after a cycle.

3.Observing hole

There is an observing hole on the maintaining door. You can observe the mixing situation without cutting off power.

4.mixing device

Compulsory mixing is realized by composite moves of extruding and overturning driven

by rotating axis and blades. Mixing blades are designed in parallelogram

structure (patented),which can be turned 180 degrees for reuse to increase service life.

Specialized discharge scraper has been designed according to discharge speed in order to increase productivity

5.Discharging device

According to the different demands of customers, the discharging door can be opened by hydraulic ,

pneumatic or hand. The number of the discharging door is 3 at most. And there is special sealing device on the discharging door to ensure the sealing reliable.

6.The hydraulic power unit

The hydraulic power unit is a special design, which can provide power for more than one discharging gates

. On emergency, these discharging gates can be opened by hand.

7.Water device

Overhead structure is used for water (patent products).It solves the problem of residualadditive and water in pipe.

Avoid losses when customer change formula. Spiral solid cone nozzle has a fine atomization effect ,

large covering area, the material to be mixed more evenly.

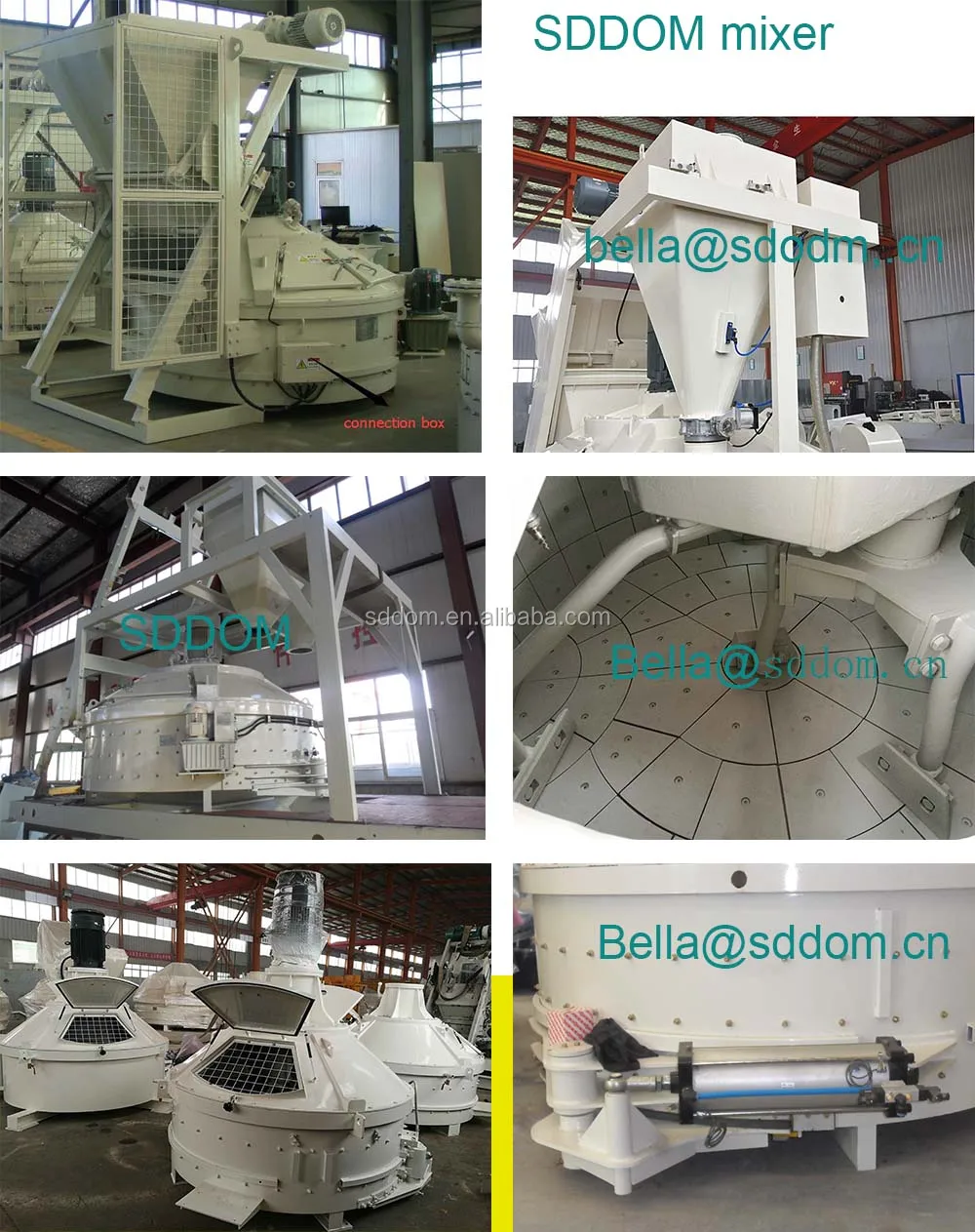

detail of concrete mixer for making block

8.Experimental center

We set a testing center to meet different mixing demand from customers.

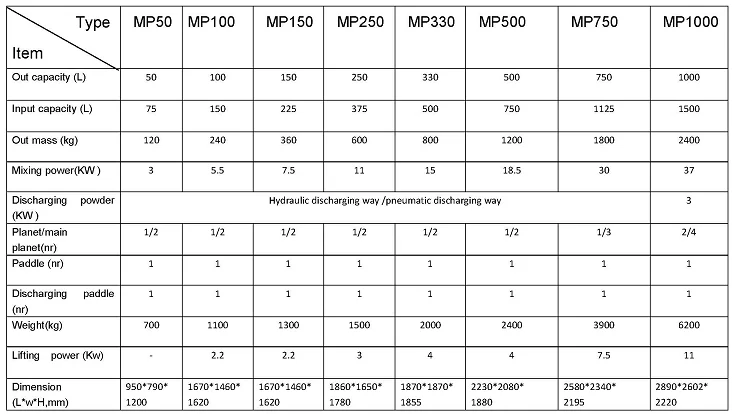

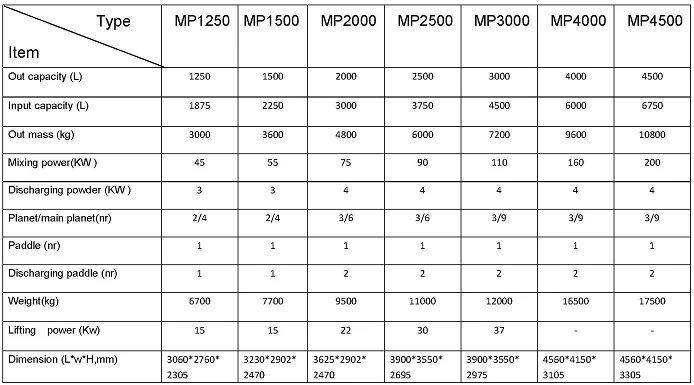

other model

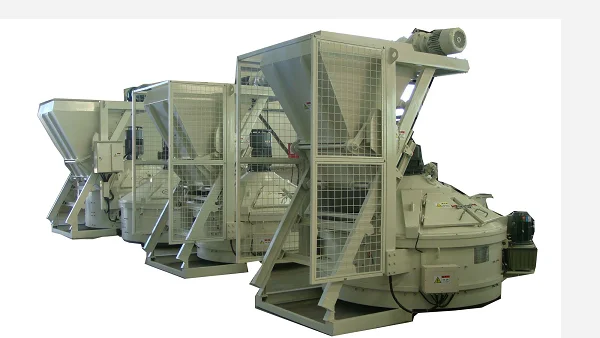

Features of our Planetary Concrete Mixer:

1 Strong, Steady, Fast and Homogeneous Mixing Performance
2 Vertical Shaft,Planetary Mixing Motion Track
3 Compact Structure, No Slurry Leakage Problem, Economic and Durable
4 Hydraulic or Pneumatic Discharging

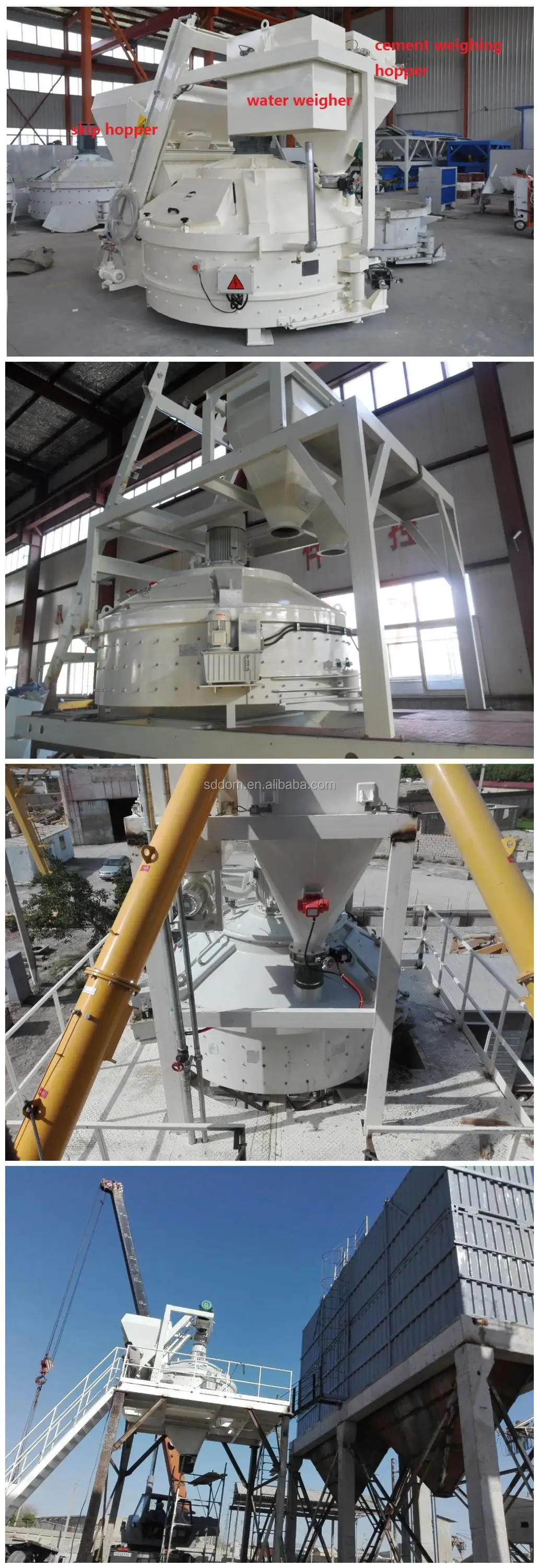

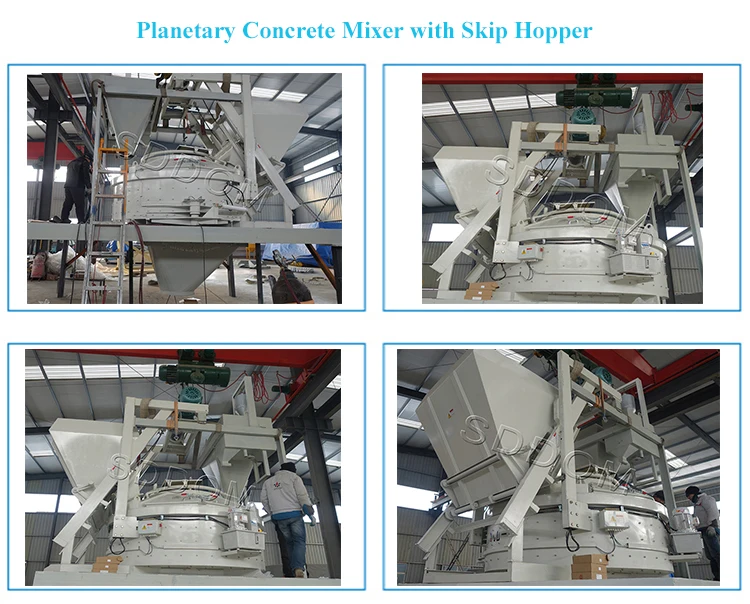

Optional items of concrete mixer for making block

1.The skip hopper

It can be chosen according to the requirement of customers.

2:The feeding door

automatically opens when feeding and close when the hopper begins to descend .

The device effectively prevents the dust overflow during the mixing to protect the environment

.According to different requirements we can add aggregate, cement ,and water weighting.
