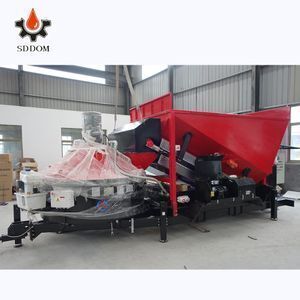

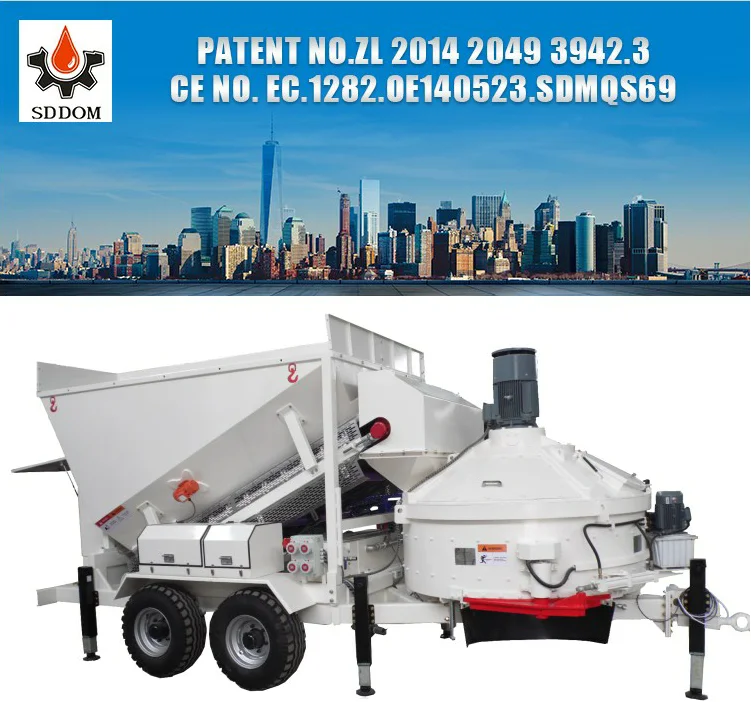

Patent ce&iso certificated mini mobile concrete batching plant for sale

Supplier: Shandong DOM Machinery Equipment Co., Limited
Region: Shandong, China
Contact: Mr Leo Li
Price: $17140.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Applicable Industries:	Construction works ;
Place of Origin:	China;	color:	customized;
Additive measurement:	Stainless additive pump;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight:	8.8t;	Control:	SIEMENS FULL AUTO CONTROL SYSTEM;
Supply Ability:	10 Set/Sets per Month;	Type:	wheels type;
Packaging Detail:	Standard package;	Power Type:	Electric;
Port:	QingDao;	Showroom Location:	None;
Certification:	CE ISO;	Warranty:	1 year;
Local Service Location:	None;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Machine Type:	Batching machine;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Application:	Construction Projects;	weighing way:	Aggregate cumulative measure,USA Amcells sensor;
sensor:	mettler toledo;	Brand Name:	DOM;
Condition:	New;	Roller:	Macromolecules;

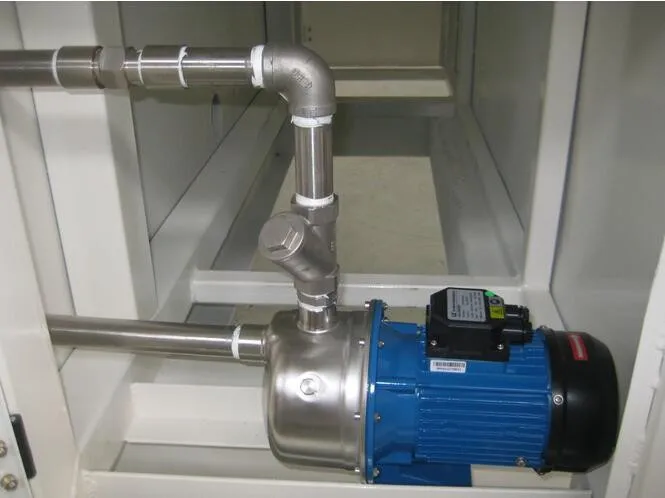

water measurement:	Grundfos water pump;	Dimension(LWH):	622024902622mm;
Power(W):	36.5kw;

Product Description

With a mobile batching plant, it is possible to produce concrete at the same place over a longer period and then move on to new jobs. The robust container frame is equipped with a draw hook, which allows the batching plant to be pulled on to a lorry with a hook hoist. Alternatively, it can be lifted on to a lorry with a crane.

The batching plants require no poured foundation and they can be placed on any even surface. You can start producing concrete within a few hours after the batching plant is erected. All you have to do is connect electricity, water and any other equipment, and fill sand and gravel in the hoppers.

The powerful pan mixer is equipped with adjustable mixing arms with robust mixing shovels and side scrapers, providing a short cycle time and a high, uniform concrete quality. A high quality is also ensured by the integrated control system, which controls and monitors all processes and connected equipment, e.g. a belt conveyor and/or cement silos.

A hook container model is a profitable investment which will soon pay for itself and return a profit. All wearing parts are produced in robust materials and can be replaced separately, which minimizes operating costs. There is free access to all of the plant functions, facilitating daily cleaning, maintenance and service.

Model	MB1200
Capacity	10-17M³/H
Floor Area(L x W)	5.8m x 2.5m
Total Power	34KW
Total Weight	7T
Aggregate Hopper Volume	2.4M³x2
Mixer	MP500	Filling Volume	750L
		Feeding Capacity	1.2T
		Compacted Concrete	500L
		Mixing Power	18.5KW
		Mixing Star & Mixing Blade(Qty)	1 x 2
		Side Scraper / Discharge Scraper	1/1
		Weight	2.5T
Control System	1 Set (Simens)
Weighing System	1 Set (Mettler Toledo Sensor)
Belt Conveyor	Customized(Optional)
Screw Conveyor	Φ219(Optional)

Model	MB1200	MB1800	MB2200
Capacity	10-17m³/h	28-35m³/h	30-50m³/h
Total Motor Power	34KW	58KW	80KW
Total Weight	7T	8.5T	16T
*Floor Area LW**	*5.8m2.5m**	*6.5m2.5m**	*11.8m3.1m**
Mixing Model Number	MP500	MP1000	MP1500
Motor Power	18.5KW	37KW	55KW
Input Capacity	750L	1500L	2250L
Output Capacity	500L	1000L	1500L
Aggregate Hopper Volume	*2.4 m³ 2**	*2.4 m³ 2**	*2.4 m³ 4**
Power of Electric Drum	*3KW2**	*4KW2**	*4KW4**
Screw Conveyor	Φ219	Φ219	Φ273
Control System	Siemens	Siemens	Siemens
Sensor	Mettler Toledo	Mettler Toledo	Mettler Toledo

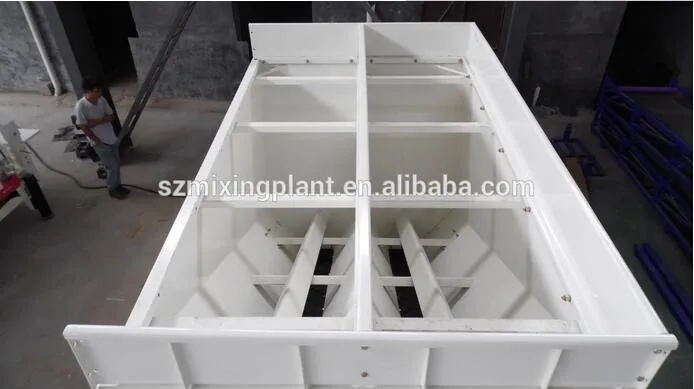

1. The batching hoppers

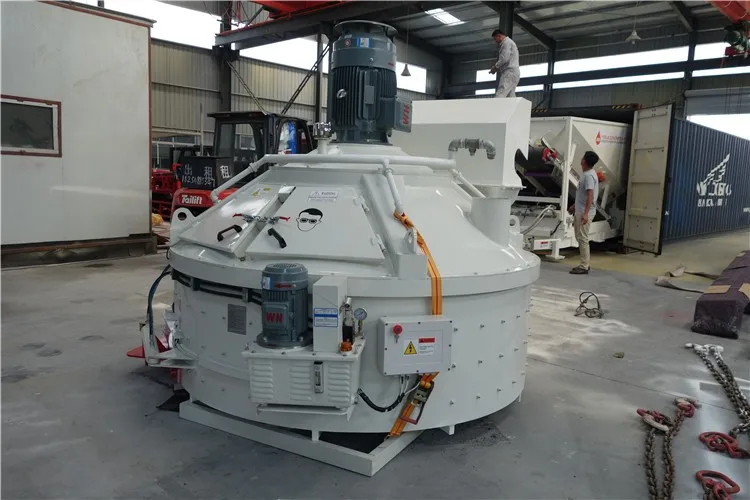

2. The planetary concrete mixer

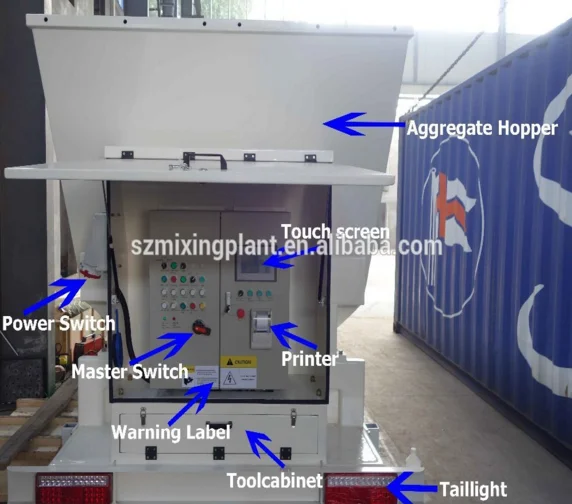

3. The control system(possibility of manual, semi-automatic and automatic operation and PC interface, all of the electric elements are"SCHNEIDER")

4. The addictive pump(stainless steel, turbine flowmeter accuracy+-0.5%)

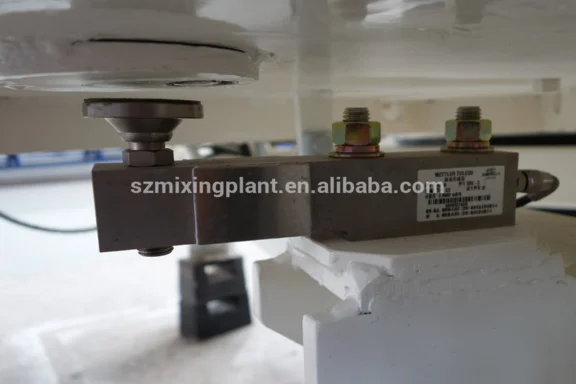

5. The Mettler Toledo Sensor

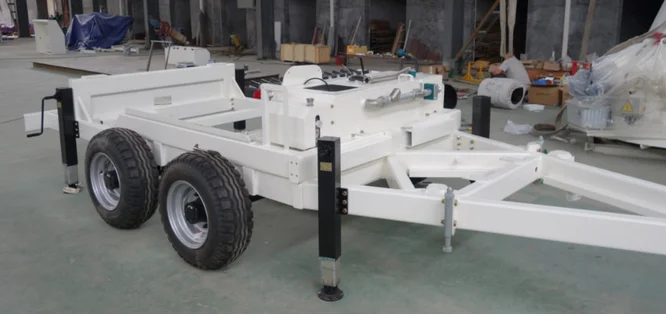

6.Support with wheels (brake system included)

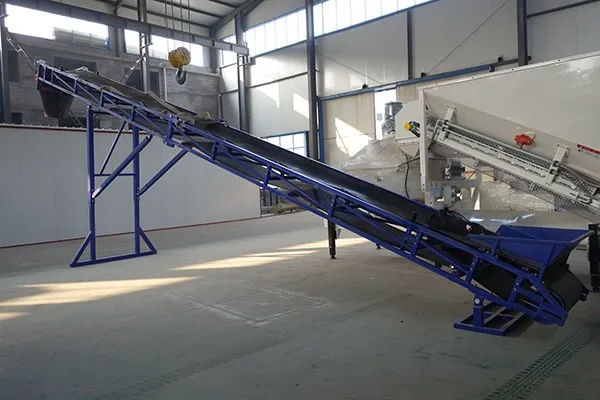

7.Optional Belt Conveyor(Simple structure, easy installation and convenirnt maintenance ,with the belt conveyor ,the discharging height can be adjusted as different height trucks)
