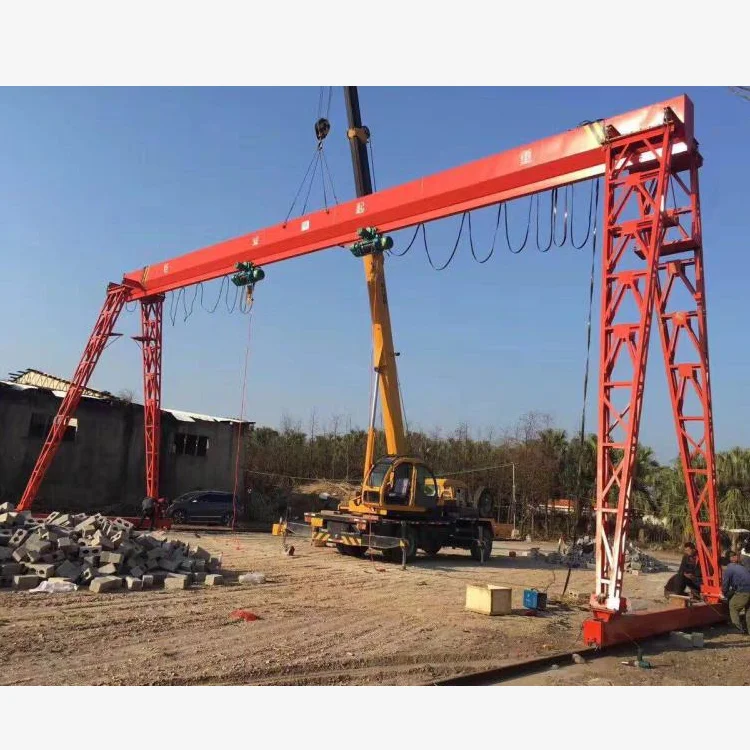

5 tons simple structure gantry crane
-
Supplier: Shandong DOM Machinery Equipment Co., Limited -
Region: Shandong, China -
Contact: Mr Leo Li -
Price: $23000.00 /set -
Min. Order: 1 set
| After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Certification: | CE; | Span: | 11.75m; |
| Local Service Location: | Thailand,Malaysia,South Korea,Kazakhstan; | Condition: | New; |
| Speed: | Double Speed; | Place of Origin: | Shandong China; |
| Port: | Qingdao; | Type: | Box Girder; |
| Warranty: | 1 year; | Main electrical parts: | Schneider; |
| Feature: | Gantry Crane; | Product name: | Single Girder Gantry Crane; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Brand Name: | SDDOM; |
| Crane feature: | High Efficiency; | Supply Ability: | 15 Set/Sets per Month; |
| Application: | work shop; | Lifting mechanism: | Electric Winch; |
| Max. Lifting Height: | 9.5m; | Packaging Detail: | Bulk package; |
| Erection method: | Balanced Cantilever; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Construction works ,Energy & Mining; |
| Rated Loading Capacity: | 5 tons; | Control Method: | Cabin Control; |
| Showroom Location: | Thailand,South Africa; |
5 tons Gantry crane
Loading capacity(t) | 5 | |
Span(m) | 11.75 | |
Lifting height(m) | 9.5 | |
Rated working speed(m/min) | Hoisting speed | 8 |
Travelling speed(span direction) | 20 | |
Travelling speed | 20 | |
Motor | Hoist | YSE-4/0.8; 0.8kw; 1380r/min |
Electric hoist | ZDY21-4/0.8; 0.8kw; 1380r/min | |
Travel | ZD141-4/7.5; 7.5kw; 1380r/min | |
Wheel diameter | Φ300 | |
Temperature | -20℃~+45℃ | |
Operation mode | Remote controller | |
Features:
1.Simple and compact structure, steady performance.
2.Easy to install and high efficiency.
3.Overload, low voltage protective device.
4.Pendent control and remote control.
5.Easy maintenanc

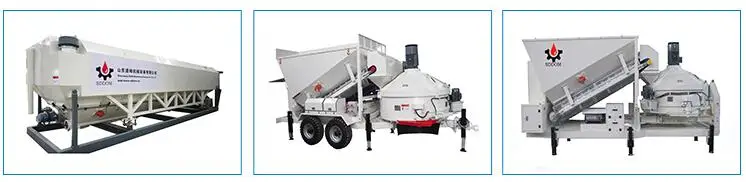

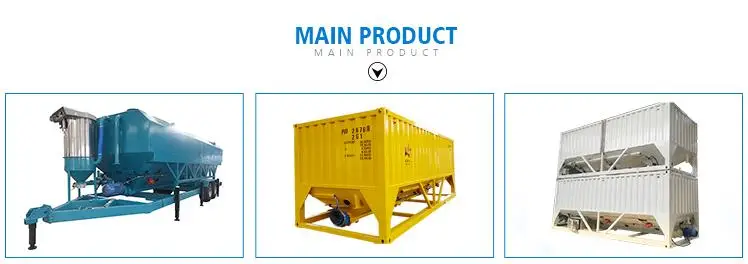

Mobile cement silo Container cement silo stackable cement silo
