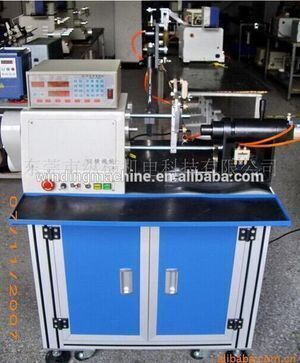

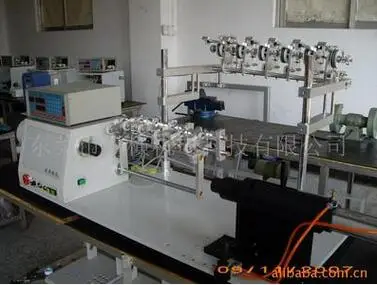

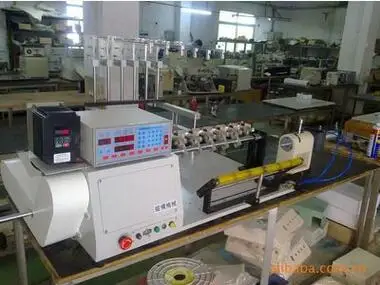

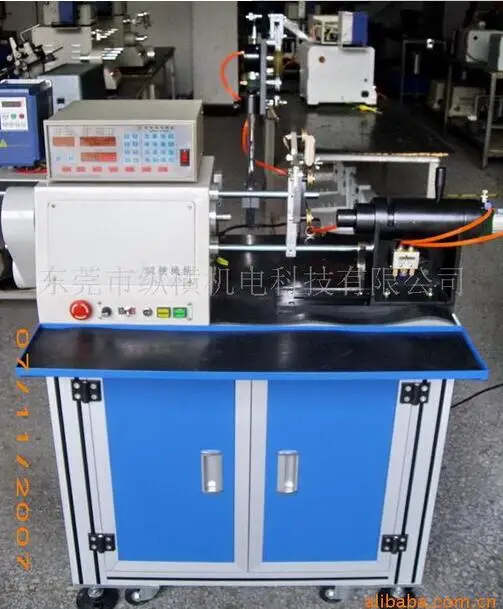

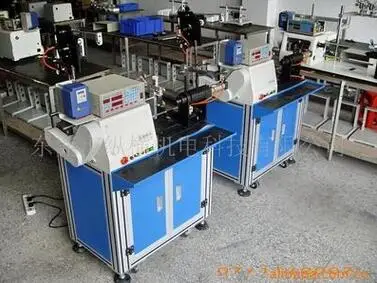

Professional Speaker Voice Coil Winding Machine

Supplier: Dongguan City Zongheng Automation Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms. Julia Tian
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	export wooden packing;	Model Number:	XML-002;
Port:	shenzhen;	Payment Terms:	T/T,Western Union,MoneyGram;
Place of Origin:	Guangdong China;	Brand Name:	Yicheng;
Delivery Detail:	within two weeks;	Coil Winding Machine:	Automotive Winding Machine;
Supply Ability:	50 Set/Sets per Month;

Professional Speaker Voice Coil Winding Machine

Products Features:

1,Coil winding,spreading winding work together to wind, spreading coil and assistant spreading coil ( Imitate human hands),coils winding evenly,protecting environment and saving energy.

2,Automatic precision winding machine which imitate human hands to spread wire, its system adopt real-time testing device ,spreading wire and coil winding to form close loop micro-trim production process,it can correct the difference timely which produce between spreading wire and winding in the multi-layers to realize car motor armature coils array precision winding,getting rid of inefficient and unstable factors of this kind coils depend on human spreading wire.

3,CNC control input,domestic exclusive research and development professional procedures of winding coils.Stable performance to make qualified rate more than 98%.

4,Patented Products,counterfeiting will be punished.

Products Specification:

Control Methods	CNC Control
Save Methods	Touch Panel Input Save
Winding Spindle Nu	Single Spindle
Max Speed	Max1500 Round/Min
Lead Screw Move Distance	Front and Back:40mm,motion union: 0.01mm
Applicable wire Diameter	Below 2.00mm
Max coil Diameter	260 mm
Max Spreading Width	145mm
Spreading Coil Motor	Servo 400w
Winding Coil Motor	Servo 1500W
Power Supply	Single 220V,50/60 HZ
Machine Table Size	800(L)x500(w)x900(H)mm
Machine Weight	260kg
Packing Size	1310(L)x800(w)x1220(H)mm
