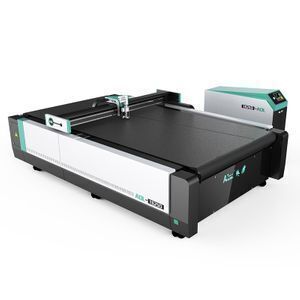

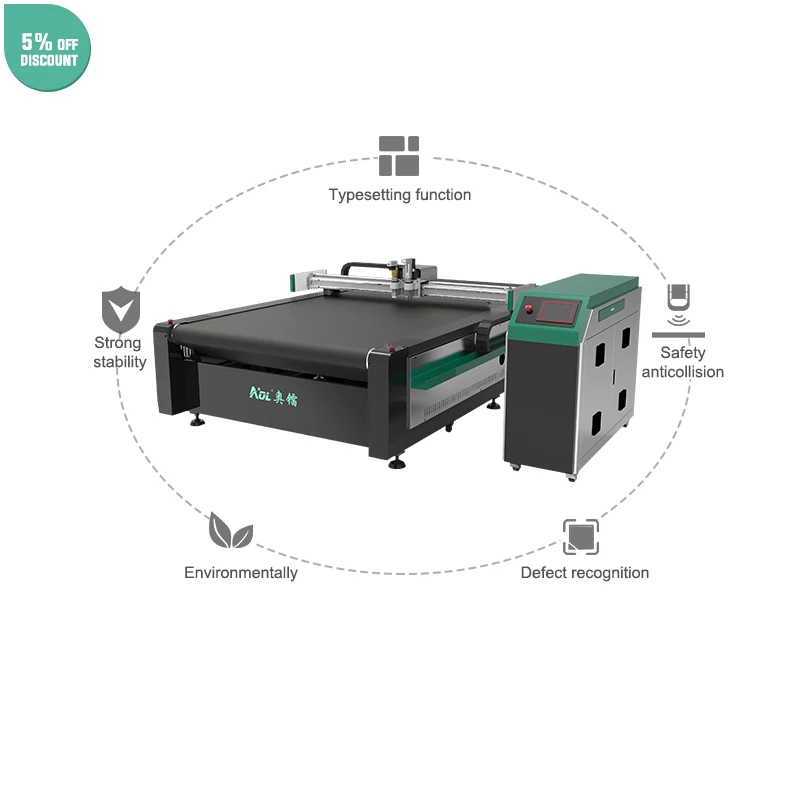

fast speed cnc knife rubber Sound insulation board Cutting machine

Product details
Dimension(L*W*H):3.67*2.23*1.40m;Place of Origin:Shandong China;
Warranty:1 Year;Applicable Industries:Advertising Company,rubber;
Demision:3.67*2.23*1.40m;Weight:1500kg;
Condition:New;Certification:CE ISO9001;
Single package size:250X200X100 cm;Single gross weight:1,100 KG;
Command mode:HP-GL compatible format;Power(W):11KW;
Function:Multi material cutting with high speed;Warranty:24 Months;
Selling Units:Single item;Brand Name:AOL;
Package Preview:https://sc02.alicdn.com/kf/H705090cb80fe44d187d35cf879f5b160M.jpg_640x640.jpg;Voltage:220V/380V;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;Package Type:Plastic film wrapped in machine, then put in plywood wooden case (standard exported case) PVC PP film Kevlar oscillating knife cutting machine from China;
Application:Automobile, Advertising, Textile Industry etc;Max. Speed:Up to 1500mm/s;
Weight:1.6t;Advantage:Fast cutting without smoke and scorch;
Max Cutting Depth:Up to max 40mm;

fast speed cnc knife rubber Sound insulation board Cutting machine







Product Description

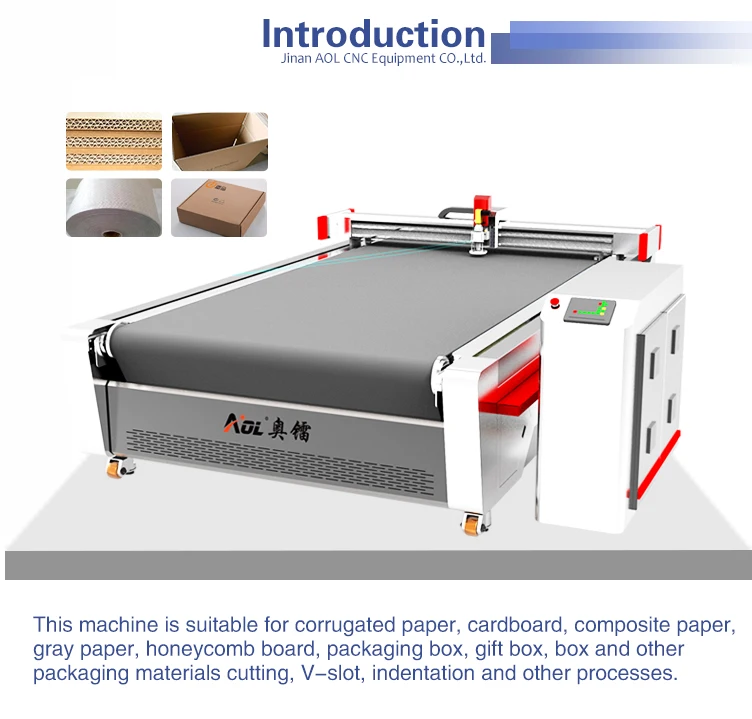

What is CNC oscillating knife cutter?



CNC Oscillating Knife Cutter is a type of CNC cutting machine which is used for high-precision cutting of heavier flexible and semi-rigid materials.



CNC oscillating knife cutting machine is carried on the multi-tool cutting head–Vibration knife, Oblique knife, Circular knife, Punching knife, Milling knife,

Punch roller and Marking pen. CCD camera and Projector are optional for more precise cutting.



CNC Oscillating Knife Cutter is also called CNC Oscillating Knife Cutting Machine, Oscillating Knife Cutting Machine. CNC Oscillating Knife Cutter is used for cutting

Leather, Gasket, PP, PE, EVA, PTFE, ETFE, Carpet, Carton, Wood, MDF, PVC, Acrylic, Carboard, Rubber, Corrugated box, Foam, Leather strip, Composites, Cardboard,

Corrugated board, Honeycomb paper, Plastic film, Fiber paper, Plastic box, Rebound rubber, Rubber cloth, etc.



CNC Oscillating Knife Cutter is widely used in Sign and Graphics, Digital Printing, Packaging, Automotive, Recreational boat, Exhibits and Fixtures, Sign Making,

Gasket Materials, Arts and Crafts and other industries.

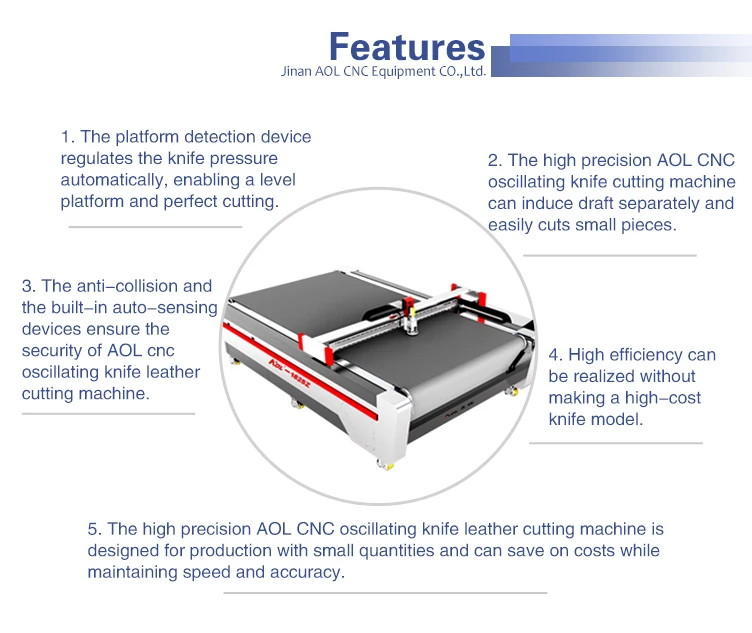

Why Choose CNC Oscillating Knife Cutter?



1.High speed with high quality, its cutting speed is 5-8 times faster than laser cutting machine.

2. Advanced computerized CNC system, which is easy to operate with Ethernet port.

3. The cutting without air pollution, no burnt edge, uniform in color.

4. Oscillating knife cutting machine can cut soft materials with perfect edges and corner.

5. Oscillating knife cutting machine adopts Japan YASKAWA servo motor and drive,fast cutting speed with high precision.

6. Oscillating knife cutting machine can be equipped with different tools to meet a variety of needs.

7. Special safety sensing device meets the European standard.



PVC PP film Kevlar oscillating knife cutting machine

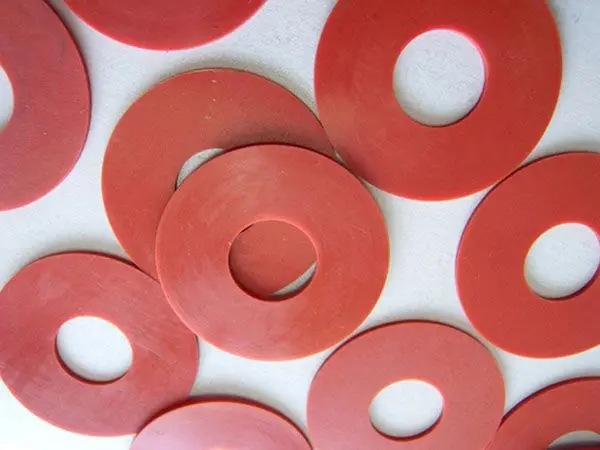

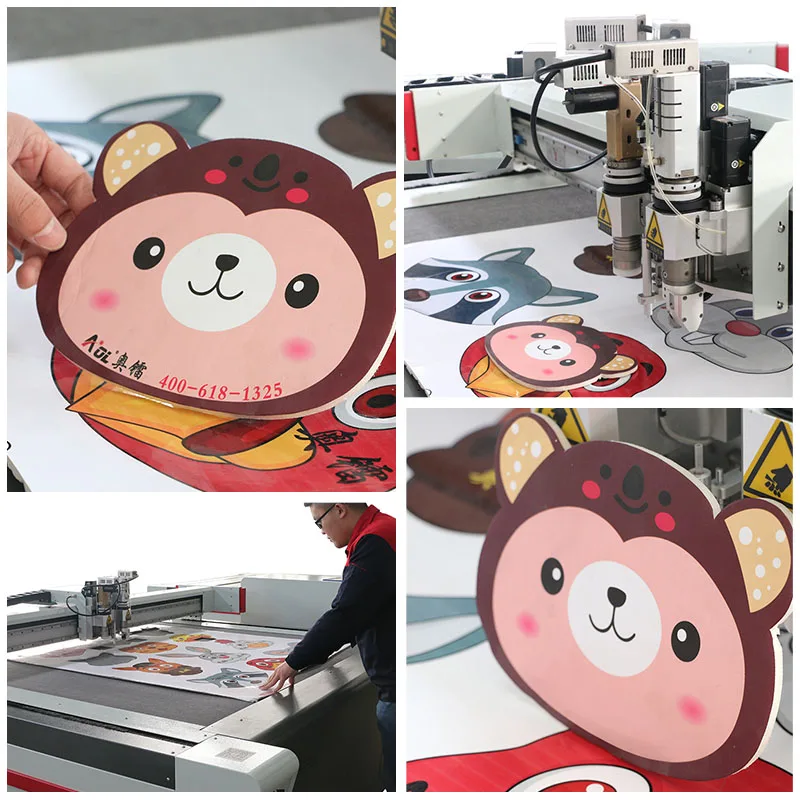

Cutting Samples







Model

  Flat table / Auto feeding table

Rated power

11KW

Working area

(length x width ):2500*1600mm

Multi functional head

(optional)

 Oscillating/Vibration knife

Circular knife

Punching knife

V cutter

Pen

Pinch roller/Creasing wheel

Milling knife

Projector and camera

cross positioning laser

Tool configuration

Multiple cutting knives

Safety device



Using infrared sensors,  responsive, safe and reliable.

translational velocity



800-1500mm/s

Cutting speed

200-1000mm/s(according to different cutting materials)

Cutting thickness

≤22mm(according to different cutting materials)

Cutting materials

Cardboard, Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber

Buffer Capacity

2GB

Transmission system

Imported(Digital servo motor, linear guide, synchronous belt)

Instruction system



HP-GL compatible format

Voltage

380V±10%

Other configuration

Yaskawa servo motor,Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, 9kw vacuum pump

Material fixing method

High power vacuum absorption and intellectual partition

Repeated positioning accuracy

Maximum 0.01mm

Mechanical Precision

Maximum 0.02mm

Drive system

          Belt transmission, AC servo motor, linear guide rail

Operating mode

Operation platform + data output control software (operation

platform can be divided into connected and separated parts)

Display mode

Chinese and English liquid crystal screen

Data transmission method

Ethernet


Our Services



1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date,Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cncknife cutting machine supplier with 8 years experiences.
8) International quality certificate: CE, ISO9001





Company Information



Jinan AOL CNC Equipment Co.,Ltd was founded in 2005. For over 10 years, AOL laser machines and Intelligent
CNC knife cutting machine cover all Chinese market and also very popular in America, West Europe, South Asian,
East Asian etc. More than 80 countries. AOL team will try our best to serve for you with suitable laser solutions.
AOL CNC knife cutting machine is more popular for cutting market, without smoke and noise, but with high precise
and fast cutting! Welcome you to join AOL,share top laser&cnc knife cutter products and services together with
word-wide customers. Continuously create long-time value for customers.


If any questions about machine, pls feel free to contact me. And welcome to visit to AOL factory !!!
