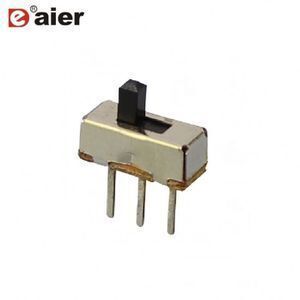

SS-12D00 Slider Switch

Product details
Packing:Bulk Packing;Pin Number:3 Pin;
Material:Iron;Place of Origin:Zhejiang China;
Package size per batch:25X18X7 cm;Electrical Life:≥ 10000 Cycles;
Selling Units:Multiple of 1,000;Gross weight per batch:1 KG;
Package Type:1000pcs a box of SS-12D00 Slider Switch;Free sample:Available;
Handle Height:2/3/4/5MM;Max. Current:0.3A;
Model Number:SS-12D00;OEM&ODM:Yes;
Max. Voltage:30VDC;Terminal:PCB Terminal;
Rating:0.3A 30VDC;Function:1P2T;
Mechanical Life:10000 Cycles;Brand Name:Daier;

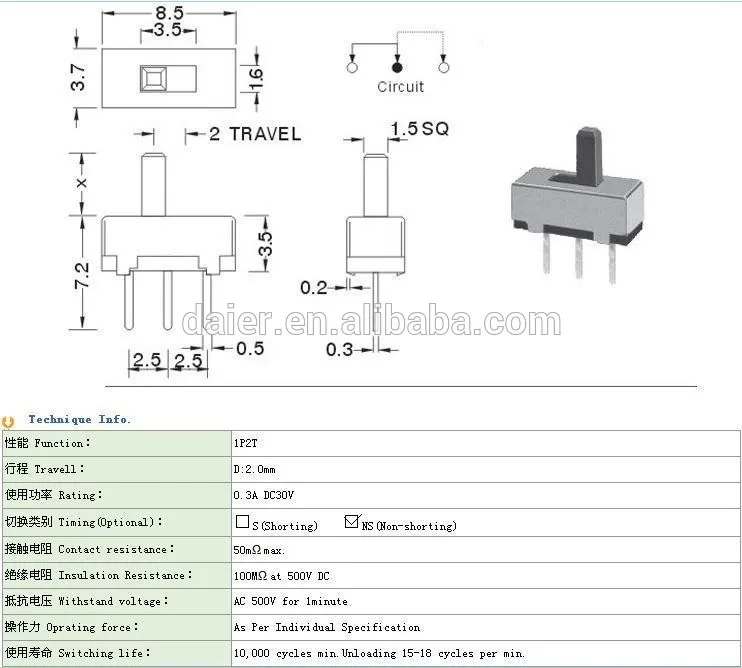

Product Description
Product Name
SS-12D00 Slider Switch
Rating
0.3A 30VDC
Insulation Resistance
100mΩ MIN.at DC 500V
Pin Number
Slider Switch
Contact Resistance
50mΩ MAX
Function
1P2T
Withstand Voltage
AC 500V for 1 minute
Products Show

Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.

Daier's many series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods; headphones or HVAC controls; portable speakers or laptops; audio equipment or alarms, Daier slide switches quickly integrate into your next design.

Related Roducts

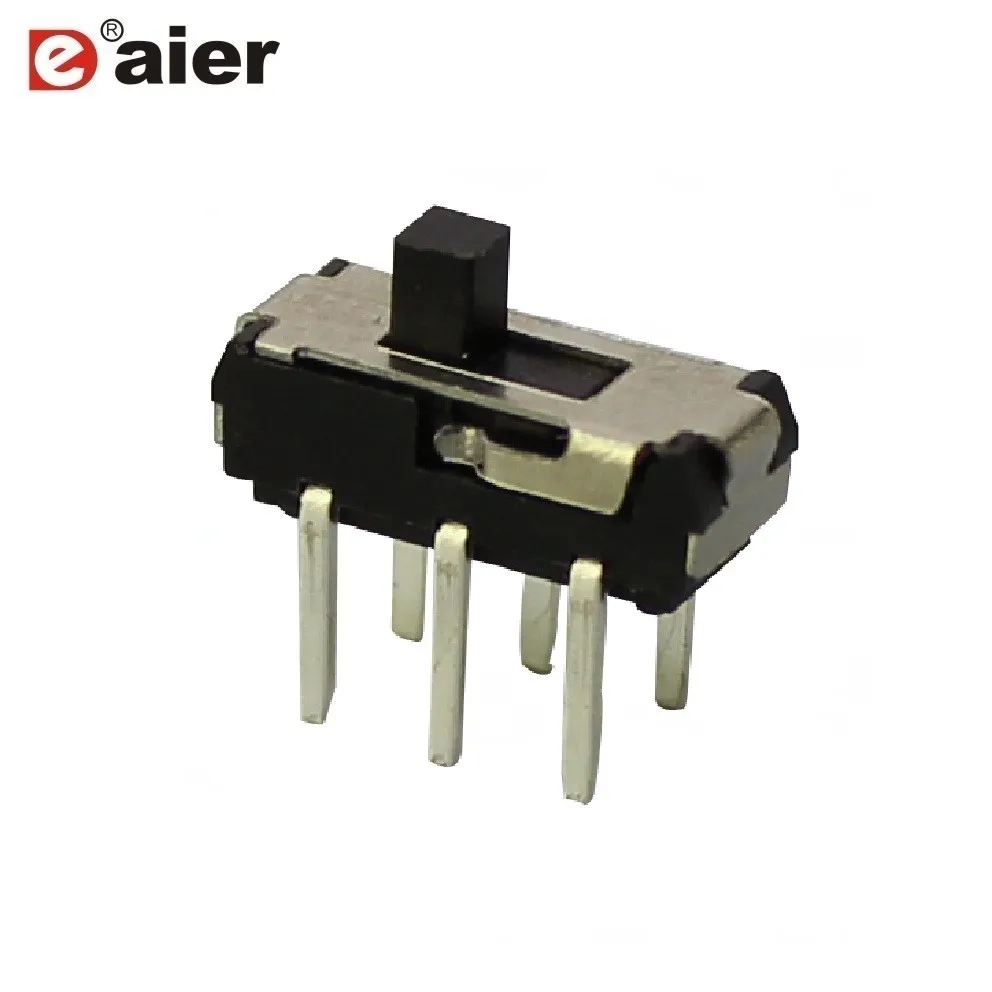

                    MSS-22D18



                         SS-22N04

                               SS8-5

APPLICATION
Company Information


Our Certifications

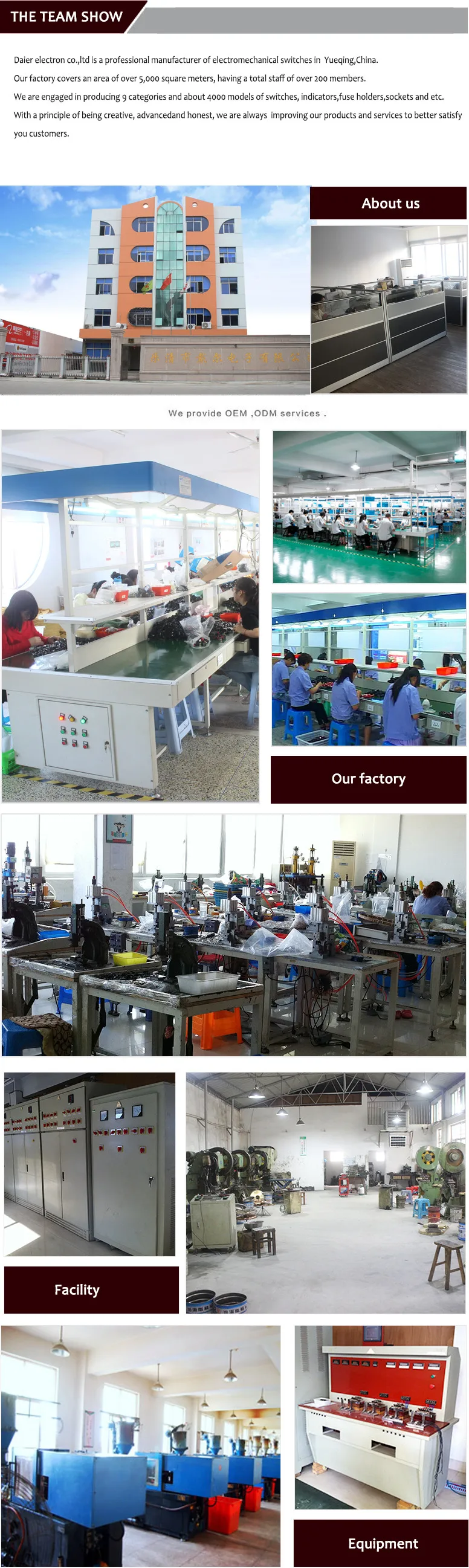

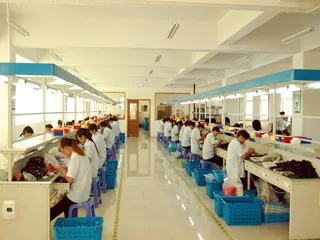

Our Factory
