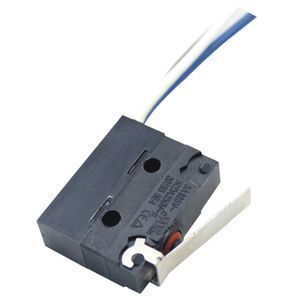

IP67 Black Wiring Waterproof Microswitch 5A 250VAC T85

Product details
Electrical Life:≥10000 Cycles;Operating Temperature:-25℃~+75℃;
Lever:Short Lever/Long Lever/Short Roller Lever/No Lever;Protection Level:IP67;
Switch Function:SPDT;Selling Units:Multiple of 100;
Rating:5A 250VAC;Item:IP67 Black Wiring Waterproof Microswitch 5A 250VAC T85;
Operating Temperature:T85℃;Housing Color:Black;
Package Type:100pcs/box, 5000pcs/carton of IP67 Black Wiring Waterproof Microswitch 5A 250VAC T85;Model Number:WS1;
Operating Force:0.5N/1N/1.5N/2N/3N;Max. Current:5A;
Max. Voltage:250VAC;Place of Origin:Zhejiang China;
Gross weight per batch:1 KG;Brand Name:Daier;
Package size per batch:31X17X2 cm;Certification:TUV;
Wire Length:200 MM;
Product Description
Item
IP67 Black Wiring Waterproof Microswitch 5A 250VAC T85
Rating
5A 250VAC
Circuit
SPDT    waterproof microswitch 5a 250vac t85
Housing Color
Black
Actuator Forms
0:No Lever

A1/1:Short Lever

A2/2:Long Lever

A3/3:Middle Lever

A4/4:Short Roller

A5/5:Long Roller

A6/6:Arc Lever
Operating Force
050:0.5N

100:1N

150:1.5N

200:2N

300:3N

Note:If it is not standard operating force,indicate with the upper limit.
Electrical life
>10000 Cycles

WS1 Series Micro Switch:

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50GF to 400GF.

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.


Mounting options include vertical, right angle, PCB and snap-in mounting.


They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.


Product Show

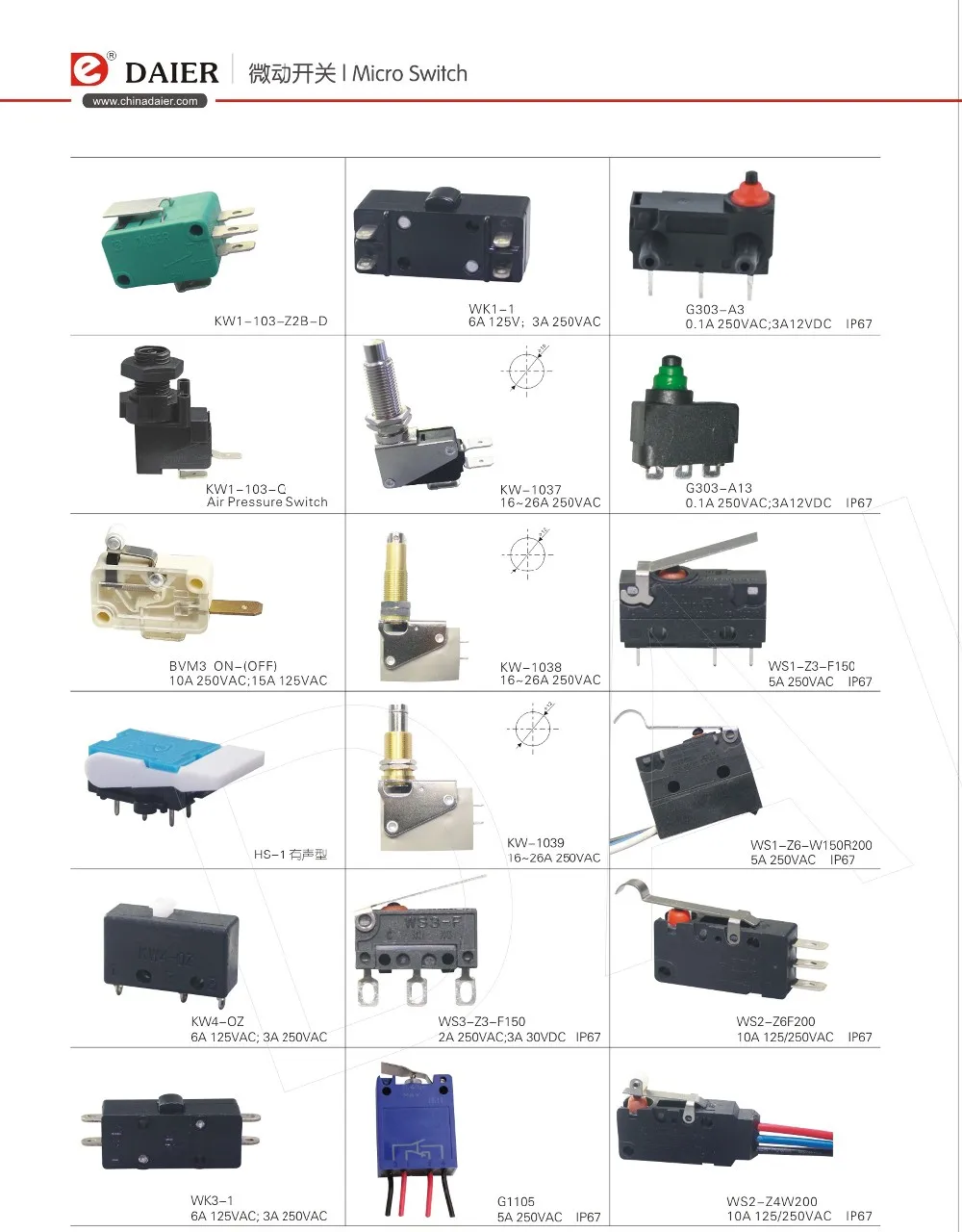

Related Roducts
