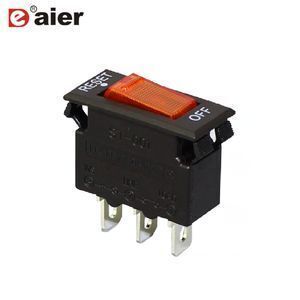

Black 15A Plastic Rocker Switch 12V Circuit Breaker With Light

Product details
Model Number:ST-001L;Brand Name:Daier;
Free Sample:Available;Package size per batch:28X16X16 cm;
Gross weight per batch:2.1 KG;Button Color:Red / Green / Orange / White;
Rated voltage:125 / 250VAC / 32VDC;Led Voltage:110V / 220V;
Selling Units:Multiple of 200;Place of Origin:Zhejiang China;
Housing Material:Plastic;Package Type:200Pcs A Box Of Black 15A Plastic Rocker Switch 12V Circuit Breaker With Light;
Function:Manual Reset;Poles Number:1;
Rated current:3~20A;Terminal Type:Long Straight Pin;
Housing Color:Black;Type:Conventional;
Item:Black 15A Plastic Rocker Switch 12V Circuit Breaker With Light;
Product Description
Item
Black 15A Plastic Rocker Switch 12V Circuit Breaker With Light
Material
Plastic
Function
Manual Reset
Working Voltage
min. 12V, max. 250V (Double usage of DC and AC)
Insulated Resistance
≥100MΩ
Dielectric Strength
≥1500VAC (1min)
Electrical Life
≥10,000 times
OEM or ODM
Available  12v circuit breaker

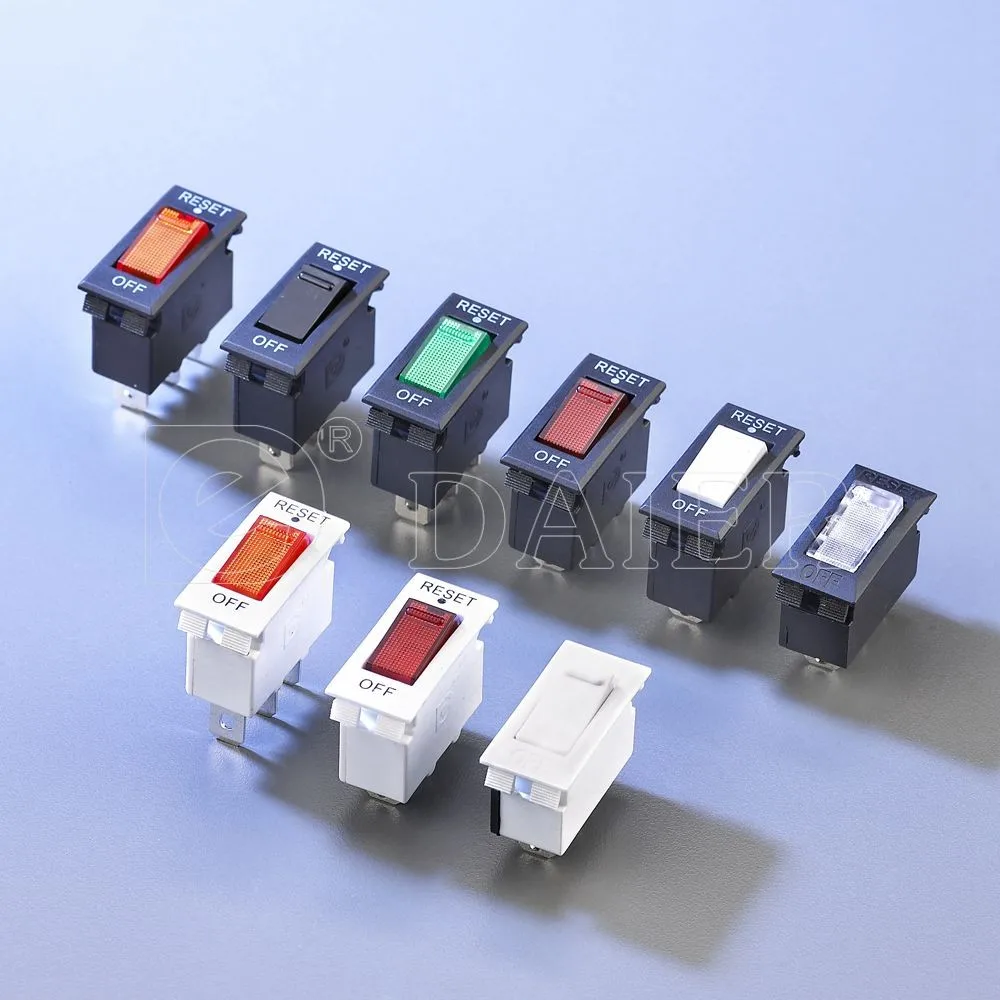

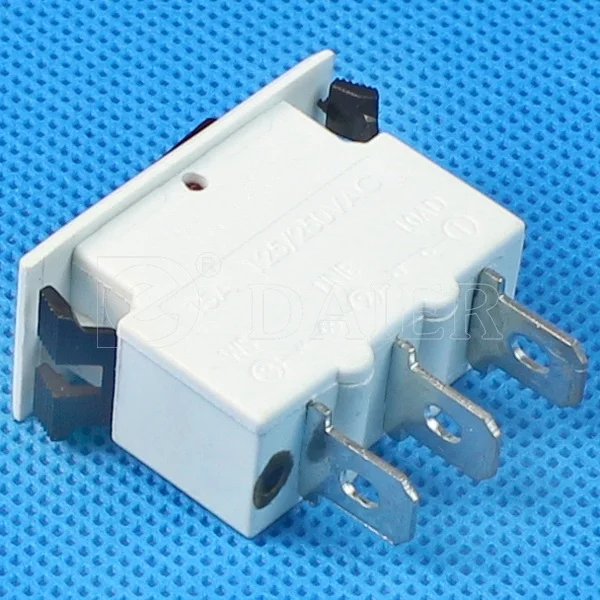

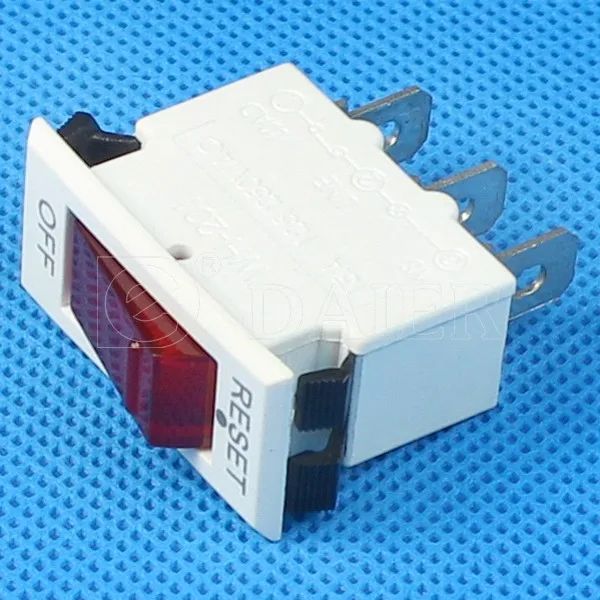

Product Show

This Daier range offers a compact thermal circuit breaker in a rocker switch design, with or without illumination. The rocker switch offers a compact thermal circuit breaker in a rocker switch design.

By incorporating the thermal circuit breaker into your system you can provide overload protection and On/Off switching using just a single component. This provides significant cost savings over using a separate rocker switch and circuit breaker combination.


Combined rocker switch and circuit breakers, which trips to off status under overload condition.

High visibility red marking on actuator indicates when breaker is tripped / awaiting reset.

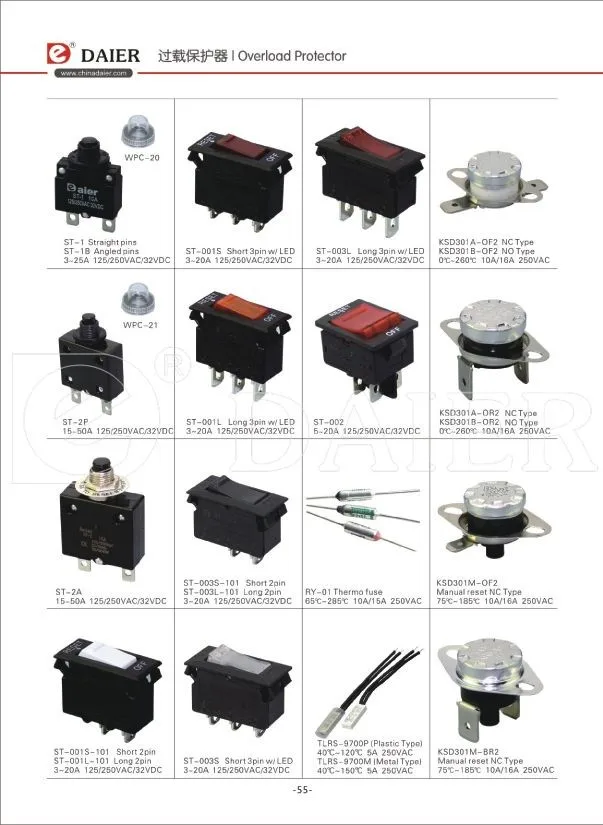

Related Roducts

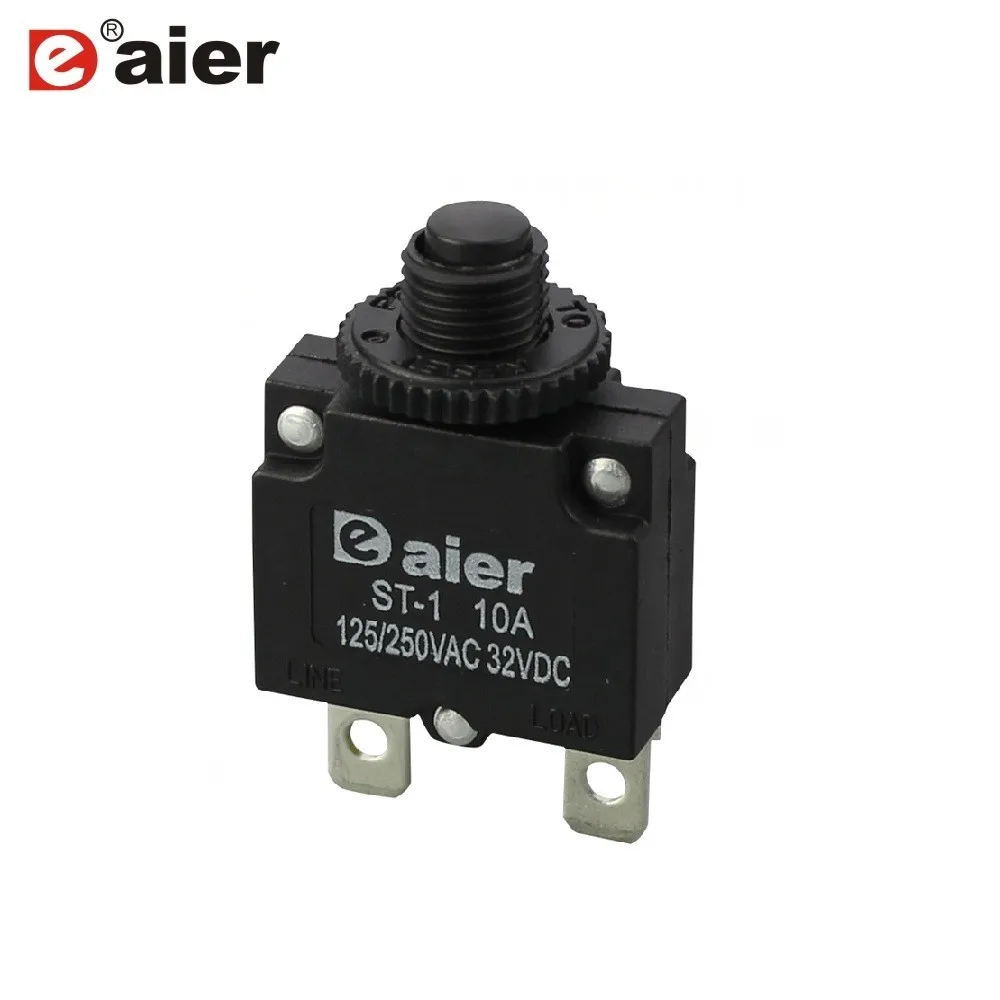

                    ST-1

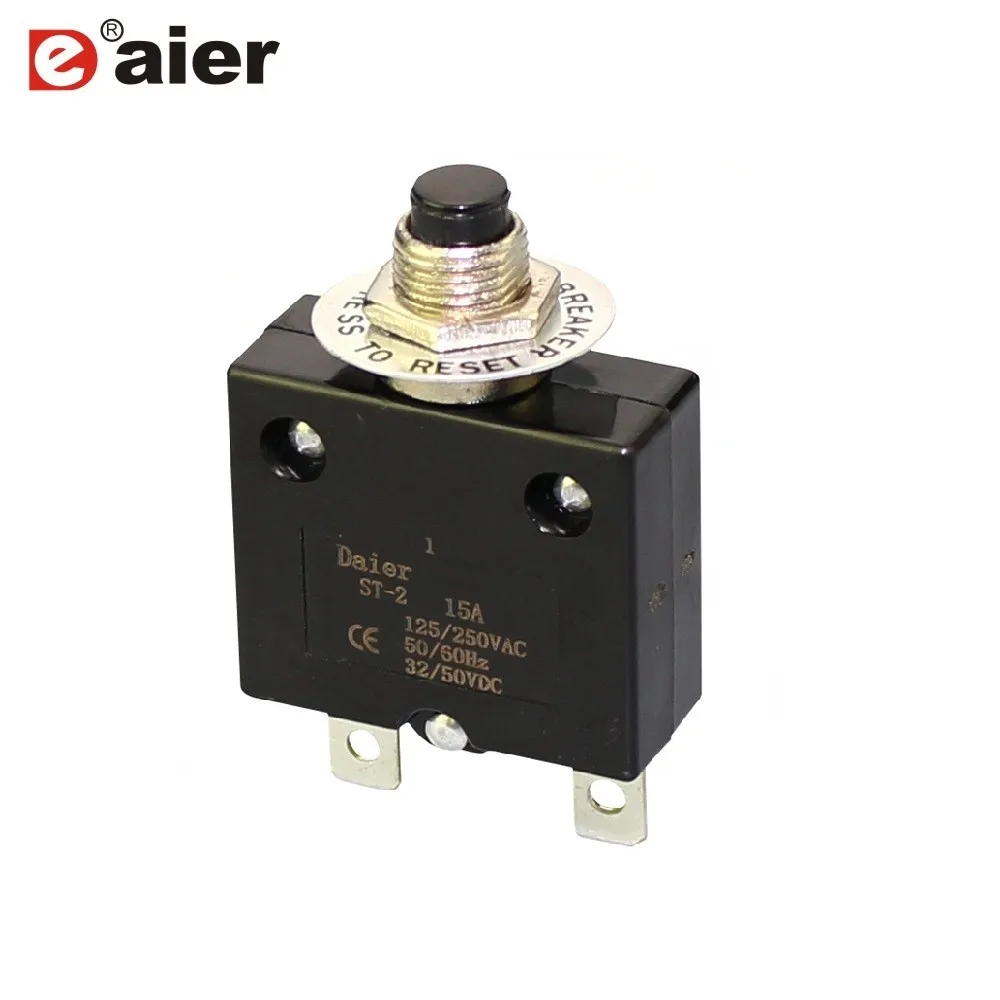

                      ST-2A

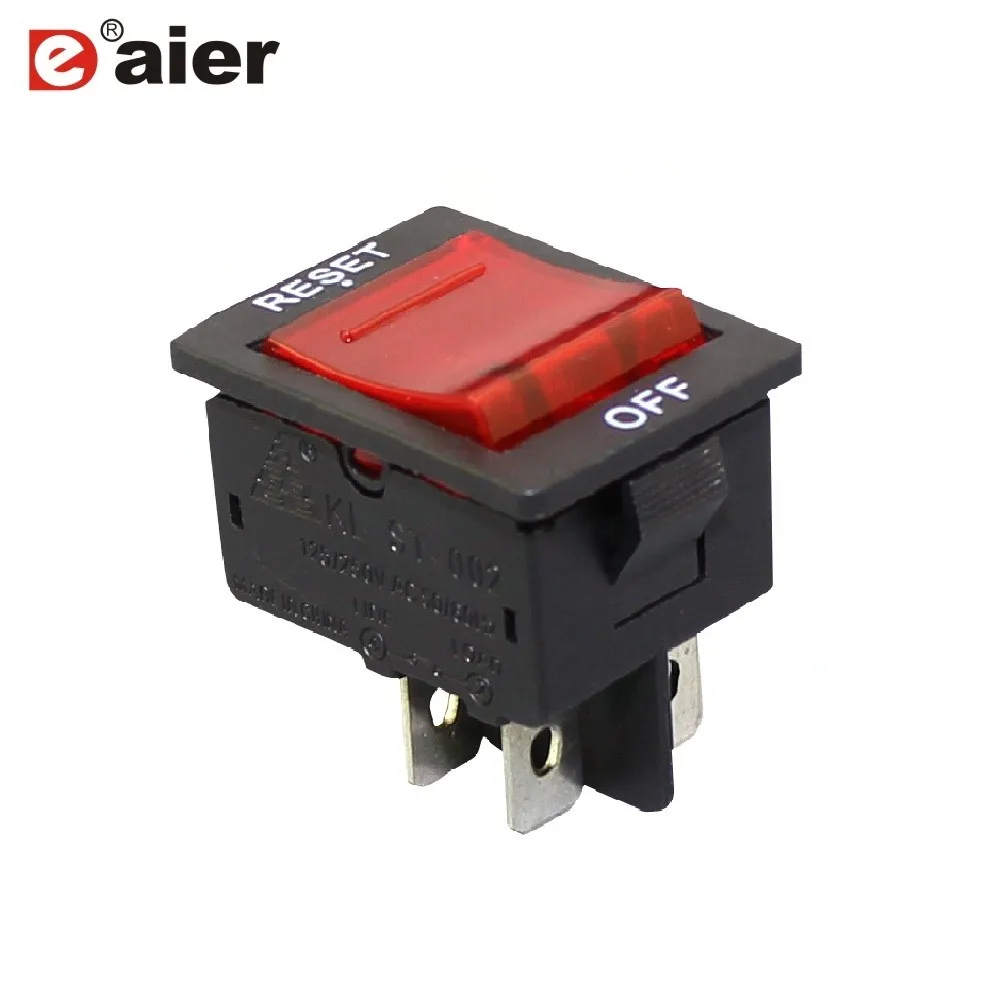

                        ST-002
