Dimension(L*W*H): | 930*600*950; | Weight: | 235KG; |
Fuel: | Electric; | After-sales Service Provided: | Video technical support; |
Place of Origin: | Shanghai China; | Motor: | 10HP(7.5KW); |
Brand Name: | LESP; | Inverter: | 15HP(11KW); |
Port: | Shanghai shenzhen ningboport; | Current: | 24A; |
Condition: | New; | Voltage: | 220V/240V 380V/440V; |
Packaging Detail: | The standard wooden case; | Condition: | New; |
Cleaning Type: | Burn-Off / Thermal System; | Warranty: | 1 year; |
Automatic Grade: | Manual; | Frequency: | 50/60HZ; |
The name: | concrete floor grinder; | Voltage: | 380-440V; |
Supply Ability: | 1000 Set/Sets per Month; | Power(W): | 11KW; |
Certification: | CE,ISO9001; | Payment Terms: | L/C,T/T,Western Union,Trade Assurance Order; |
Use: | Burnishing; |
Welcome to visit concrete floor grinder
Model:JH650-T8A
Main Product Feature
1:Uhandle, which can rotate around 360°, and is safe and reliable with convenient operation conforming to the ergonomics.

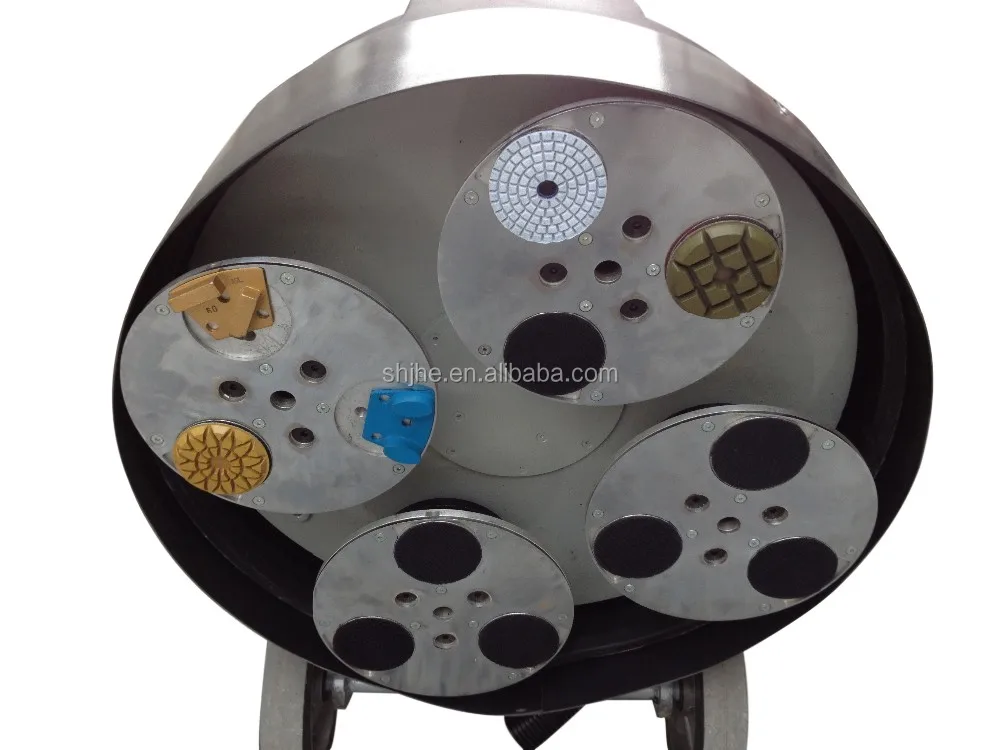

2:: Special big multi-functional magnet chassis, which enables the grinding material installation and replacement to be more convenient and quicker, and the high-speed running to be safer.
3:: The central integrated design of the control panel, which can choose the speed specific to different grounds, improve the equipment stability and achieve the low-noise working environment.
4:: The built-in vacuum cleaner connection device, which can achieve the dust-free working environment, thus good for staff’s health and equipment’s maintenance.
5: Easy operation, which enables the staff to easily complete the whole construction process by strictly followig the manual.
Technicial data:
Model | JH650-T8A | JH650-T8A2 | JH650-T8B | JH650-T8B2 |
Voltage | 380-440V | 380-440V | 380-440V | 380-440V |
Current | 24A | 26.9A | 24A | 26.9A |
Motor | 10HP(7.5KW) | 10HP(7.5KW) | 10HP(7.5KW) | 10HP(7.5KW) |
Inverter | 15HP(11KW) | 15HP(11KW) | 15HP(11KW) | 15HP(11KW) |
Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
Rotating Speed | 450-1800RPM | 450-1800RPM | 450-1800RPM | 450-1800RPM |
Working Area | 650MM | 650MM | 650MM | 650MM |
Grinding Disc | 250MM*3 | 250MM*3 | 250MM*4 | 250MM*4 |
Water Tank | 30L | 30L | 30L | 30L |
Weight | 235KGS | 235KGS | 300KGS | 300KGS |
Dimension | 930MM*600MM*950MM | 930MM*600MM*950MM | 930MM*700MM*1050MM | 930MM*700MM*1050MM |

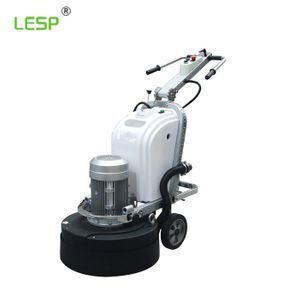

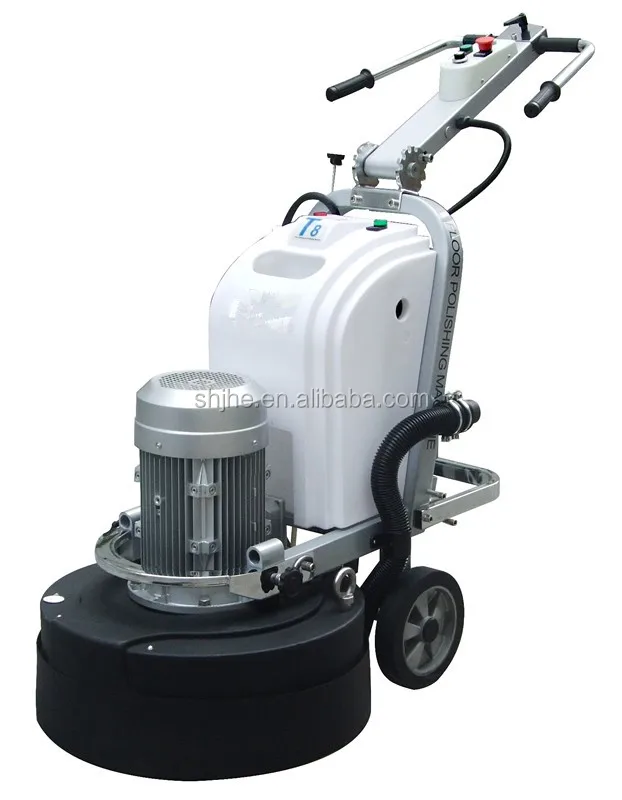

The product picture:

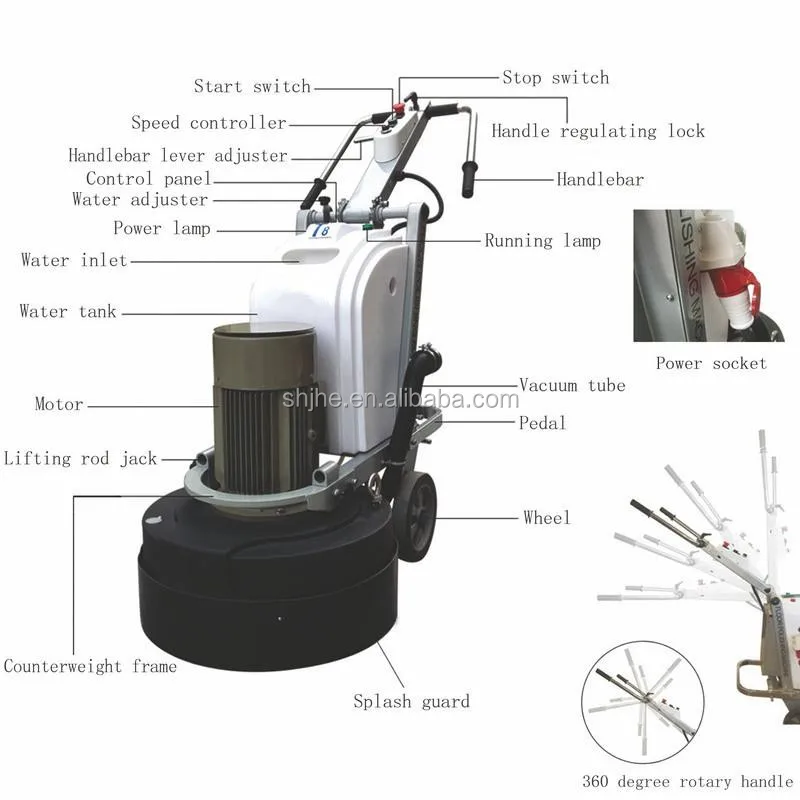

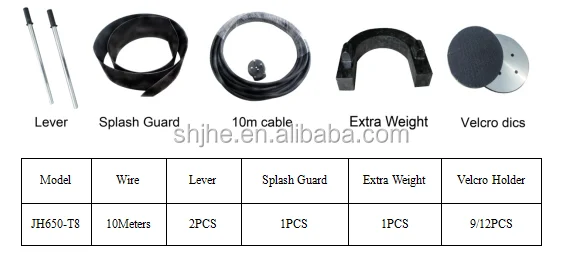

The parts detail information:
The factory picture:
The certificate:
The project:
MAIN BUYING PROCEDURES:
TRADE TERMS:
OUR SERVICE:
Please kindly check the packages after you receive the goods, if you got wrong products/ quality problem/ short quantity, please get back to us as priority. Please note that you need to send us pictures of the defective items concerning this, and we will consider to replace or refund accordingly.
