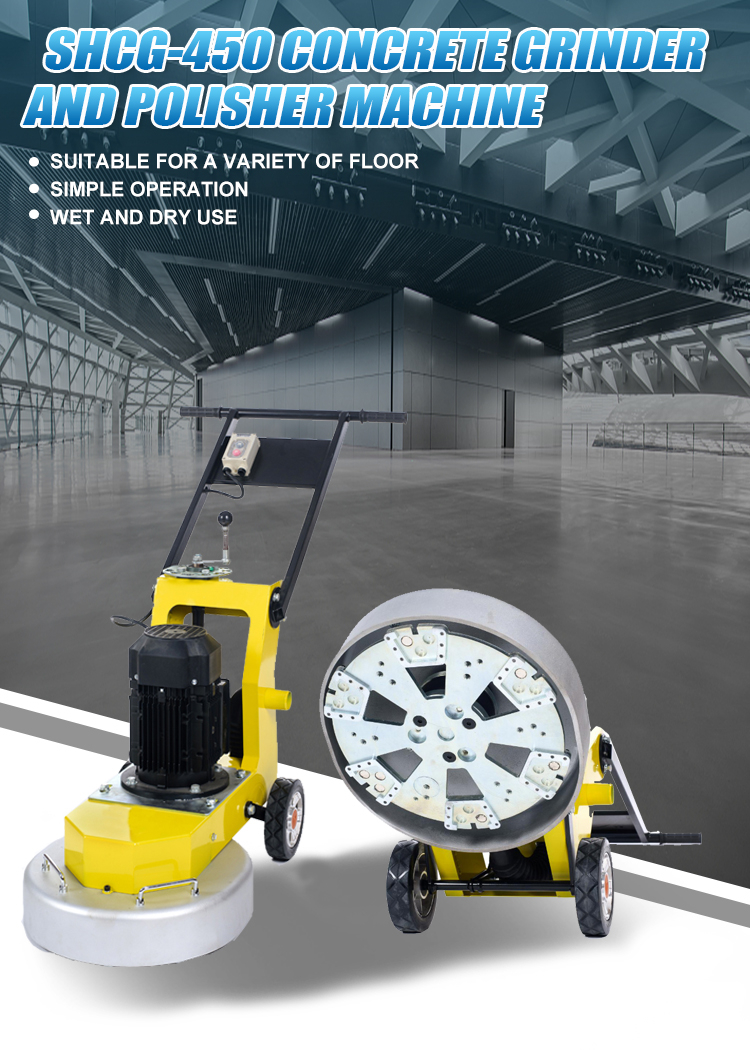

Core component warranty: | 1 year | brand: | West Hawk |
Dimensions (L*W*H): | 900*520*850mm | Mechanical test report: | if |
payment terms: | L/C, T/T | Video outbound inspection: | if |
Core components: | engine | Marketing Type: | normal product |
Showroom location: | not any | port: | Ningbo |
usage: | Terrazzo concrete floor grinding and polishing machine | weight: | 110 kg |
Packaging Details: | Terrazzo Concrete Floor Grinding Polishing Machine Wooden Box Shipment Safe | Voltage: | 220V/380V, 220V/380V |
Working diameter: | 450 mm | stage: | 1 phase/3 phase |
Applicable industries: | construction project | Health status: | new |
strength: | 3 kW | Package preview: | |
Automatic level: | automatic | color: | orange/yellow/white |
Origin: | China | Warranty: | 1 year |
Unique selling point: | high operating efficiency | CD: | 6 heads |
spinning speed: | 550 rpm | application: | floor edge sander |
Certification: | ISO/CE | Election motor: | 3 kW |
Supply capacity: | 100 pcs terrazzo concrete floor grinder polisher per week |

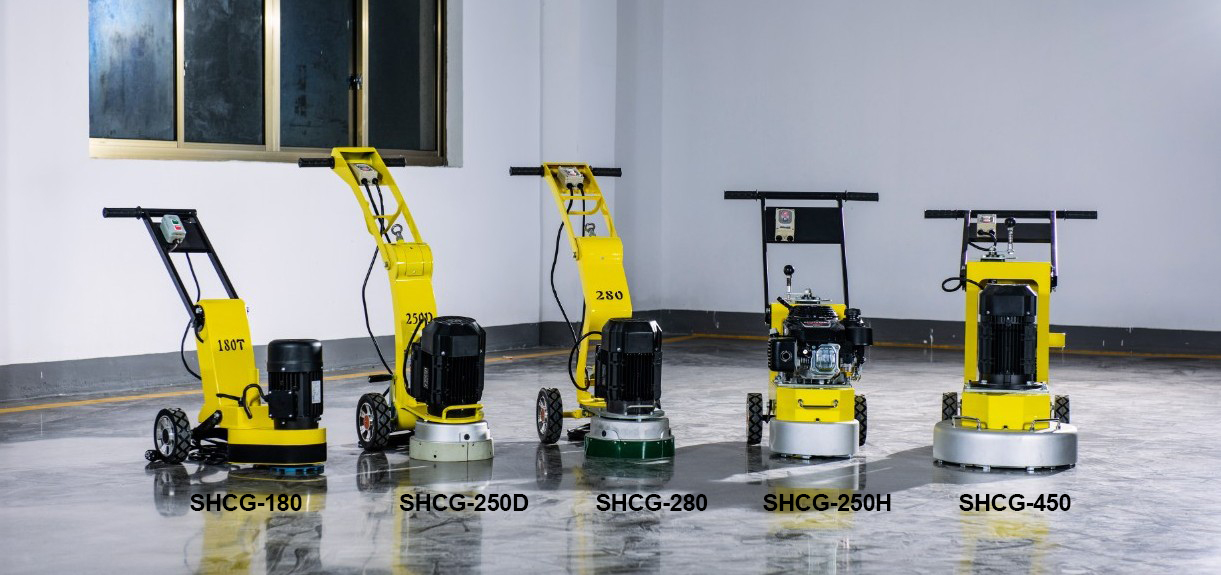

Model | SHCG-180 | SHCG-250D | SHCG-280 | SHCG-450 |
working diameter | 180mm | 250mm | 280mm | 450mm |
Voltage | 110V/220V/380V | 110V/220V/380V | 220V/380V | 220V/380V |
stage | 1 phase/3 phase | 1 phase/3 phase | 1 phase/3 phase | 1 phase/3 phase |
strength | 1.5 kW (2.0 hp) | 2.2 kW (3.0 hp) | 2.2 kW (3.0 hp) | 3 kW (4 hp) |
number of discs | 1 | 3 | 3 | 6 |
Rotating speed | 1410 rpm | 1410 rpm | 600 rpm | 550 rpm |
weight | 40 kg | 65 kg | 80 kg | 110 kg |
aspect | 680*220*600mm | 500*410*410mm | 900*520*900mm | 900*520*850mm |

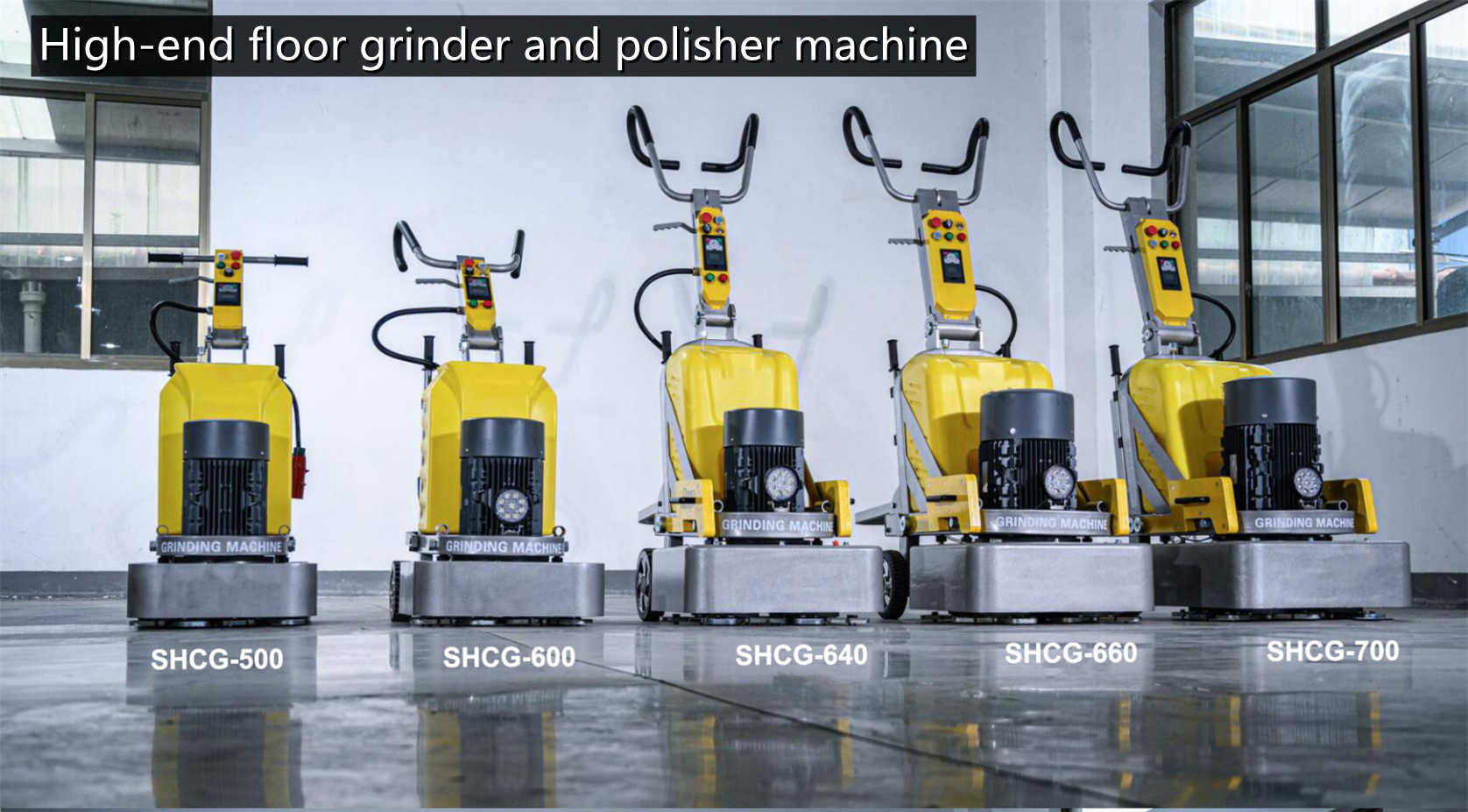

Model | SHCG-500 | SHCG-600 | SHCG-640 | SHCG-700 |
Voltage | 220V/380V | 220V/380V | 220V/380V | 380V |
frequency converter | 7.5 kW | 7.5 kW | 11 kW | 15 kW |
electricity | 7.5 kW | 7.5 kW | 7.5 kW | 11 kW |
working width | 500mm | 580 mm | 630 mm | 680 mm |
spinning speed | 300-1800 rpm | 300-1800 rpm | 300-1800 rpm | 300-2400 rpm |
number of discs | 12 | 12 | 12 | 12 |
tank capacity | 60 liters | 60 liters | 60 liters | 80 liters |
weight | 195 kg | 235 kg | 260 kg | 340 kg |

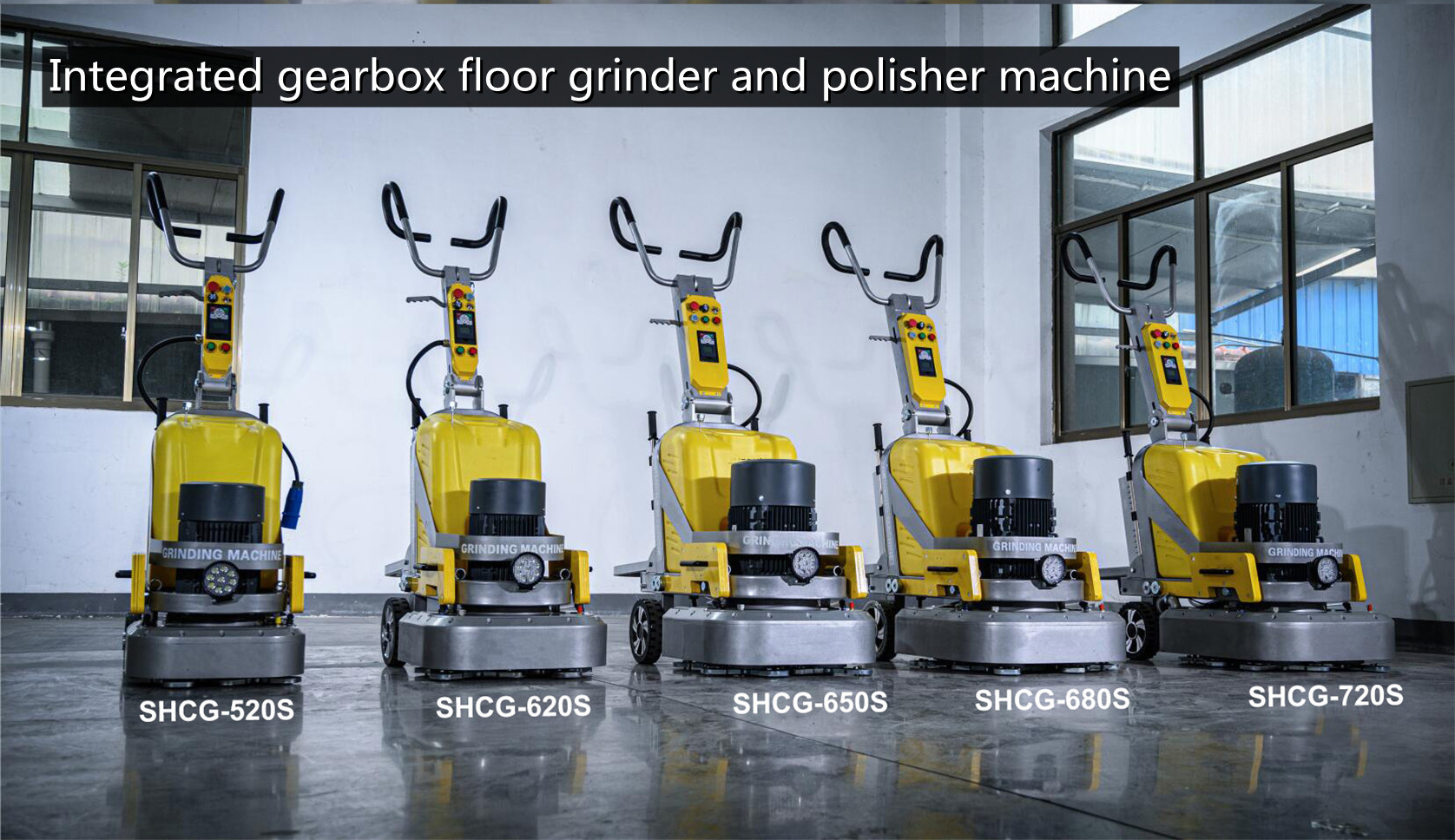

Model | SHCG-520S | SHCG-620S | SHCG-650S | SHCG-680S | SHCG-720S |
Voltage | 220V/380V | 220V/380V | 380V | 380V | 380V |
frequency converter | 7.5KW/5.5KW | 7.5KW/11KW | 15 kW | 15 kW | 15 kW |
electricity | 7.5KW/5.5KW | 7.5 kW | 11 kW | 11 kW | 18 kW |
working width | 520mm | 620mm | 650mm | 680mm | 720mm |
spinning speed | 300-1800 rpm | 1000-1800 rpm | 1000-1800 rpm | 1400-1800 rpm | 1400-1800 rpm |
number of discs | 12 | 12 | 12 | 12 | 12 |
tank capacity | 60 liters | 60 liters | 80 liters | 80 liters | 80 liters |
weight | 210 kg | 280 kg | 340 kg | 370 kg | 395 kg |
