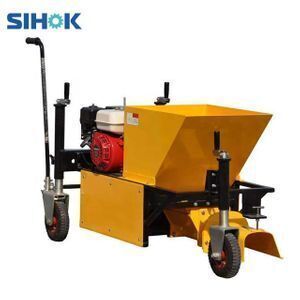

High capacity concrete kerb machine for road construction (SCC-11)

Product details
Total Width:720mm;Working Type:walk behind;
Payment Terms:L/C,T/T,Western Union;Work Speed:1-2m/min;
UNIQUE SELLING POINT:Low Maintenance Cost;Package Preview:;
Condition:New;Fuel Tank Volume:3.6L;
Warranty:1.5 years;Product Name:concrete kerb machine;
Total Height:1100mm;Port:Qingdao;
Place of Origin:Shandong China;Total Length:1500mm;
After-sales Service Provided:No overseas service provided;Supply Ability:100 Unit/Units per Week concrete kerb machine;
Packaging Detail:concrete kerb machine in wooden case, safty package for shipment.;Engine Type:Gasoline;
Weight:160Kg;Power:5.5Hp;
Applicable Industries:Construction works ;

High capacity concrete kerb machine for road construction (SCC-11)

Product Description

High capacity concrete kerb machine for road construction (SCC-11)

This machine is used for the curb forming, especially for the curb forming of recreational green space, community garden curb etc.
1.With famous brand engine, reliable performance, easy to start up.
2.With spiral feeding hopper, the counterforce drives the machine backward walking.
3.With walking indicator to ensure the correct direction.
4.Slipform is easy to dismantle, and can be designed as per customer's requirement.
5.Plastic treated, anti-tust and beautiful.

Product Parameters

High capacity concrete kerb machine for road construction (SCC-11)

Model

SCC-11

working

Working Type

Walk-behind Type

Work Speed

1-2m/min

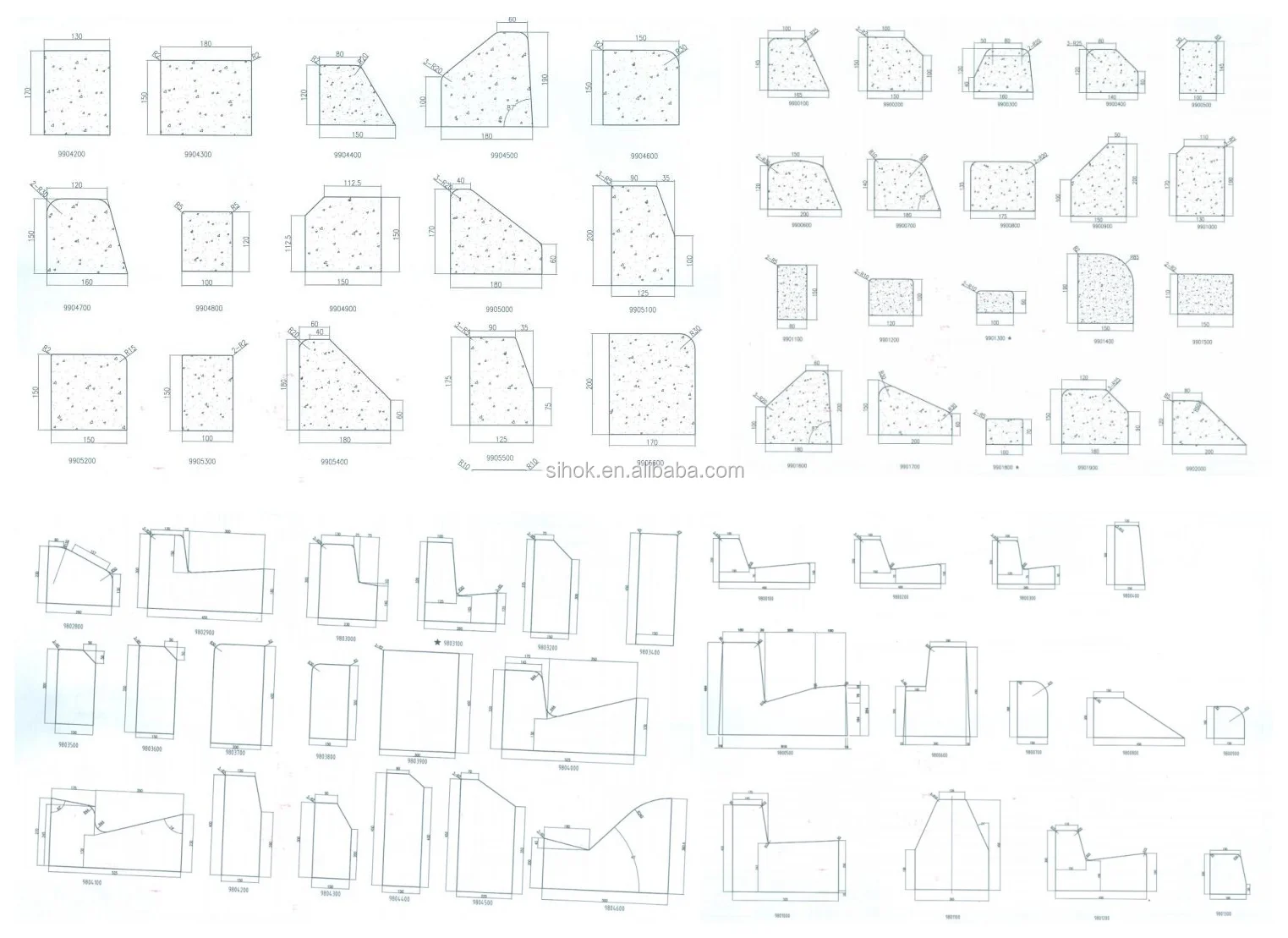

Work Mold

As per customer’s requirement.

Engine

Gasoline Engine Model

Honda GX160/Diesel CF170

Diesel Engine Type

Single cylinder, vertical, air cooling, 4 stroke, directly injection.

Power

5.5Hp/3600rpm

Fuel Tank Volume

3.6L

Lubricant L

0.6L

Fuel Consumption

313g/kWh

Machine Size

1500*720*1100mm

Package Size

1540*790*910mm

Net weight

160kgs

Package weight

200kgs

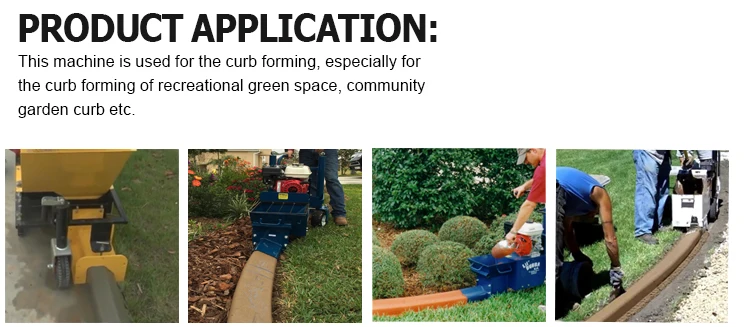

Product Application

High capacity concrete kerb machine for road construction (SCC-11)



Packaging & Shipping

Packaging:

1.Standard seaworthy packing suitable for long-distance transportation

2. Inner packing of carton and the transportation packing of wooden case

3.All of the productions are inspected carefully one by one by QC before delivery.



Delivery Time:

1.Conventional products: 5-7working days after payment received.

2.Customized products: 10-30 days according to detail request.



Min. Order:

1.We can provide customized service for a minimum order quantity of 1 set.

 2.Larger quantity, price will be more favorable.



 Payment:

 a various of payment terms are optional,guarantee 100% payment security.

Company Information

Jining Sihok Machinery Co., Ltd. founded in 2003, is a professional construction machines manufacturer and exporter concerned with the design, development and production kinds of machines. Our products cover vibratory roller, excavator, light tower, concrete power trowel and so on. We are located in Jining city of Shandong Province. We have 300 employees and an annual sales figure exceed US 7-15 million. Our well educated and professional team which have international vision have built long-term cooperation with customers all over the world, like Australia, USA, Spain, Thailand, Indonesia, Colombia,etc.
