180m deep good price DTH Borehole Water Well drill/drilling rig

Product details
Voltage:Diesel Engine Driven;Supply Ability:5 Set/Sets per Day Deep Hole Drilling Machine;
Condition:New;Deep Hole Drilling Machine:Air Dth Water Well Drilling Rig;
Air consumption:16-31m3/min;Drilling depth:180m;
Applicable Industries:Construction works ,Drilling works;Power Type:Diesel;
Dimension(L*W*H):3500*1400*2300mm;Working pressure:1-2.5Mpa;
Impactor:Middle and high pressure series;color:red or as your required;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Port:qingdao;
Warranty:1 Year;Drill hole diameter:75-235mm;
After-sales Service Provided:Engineers available to service machinery overseas;Usage:Water Well;
Drill pipe length:3m;Type:Rotary Drilling Rig;
Packaging Detail:200m dth drilling machine Deep Hole Drilling Machine;Portable Drill Machine:crawler drilling rig;
Place of Origin:Shandong China;After-sales Service Provided:Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Certification:ISO9001;Brand Name:HW;
Weight:4500kg;
Product Description



    HQZ hydraulic down-hole drilling rig is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate. This drill is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight. HWQ hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.

Main Features

1: These water well drilling rig are small size, light weight, easy to install.
2: These water well drilling rig three major components, host, pump station, console.
3: In the original transport, prospecting roadway can be put into production, the overall structure of the mine play a protective role. These water well drilling rig can also be used for surface 0-90 degree drilling.
4: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.
5: the use of box-type to the rack, the holder to tighten, power head rotary drilling, cylinder pull drilling tools, Save the bulky rig.
6: with a linkage function, through the console centralized control, simple and safe, stepless speed.
7: hollow shaft design, drill pipe length is not limited by drilling rig. Can be drilled at any angle of 360 °.

8: disintegration is good, easy to move and transport. Φ33-Φ43 drill pipe can be used with the machine, the replacement only 15 minutes. .

Technology Parameter



SPECIFICATIONS FOR HQZ-180L WATER WELL DRILLING RIG
      Model
unit
HW-180L
Max final hole diameter
M
180
Drill hole diameter
mm
75-235
Working pressure
Mpa
1.05-2.45
Air consumption
m³/min
16-31
Drill pipe length
m
3
Recommended drill pipe diameter
mm
76
Axial pressure
T
15
Lifting force
T
35
Fast lifting speed
m/min
30
Fast forward speed
m/min
65
Maximum rotary torque
Nm
14000
maximum rotation speed
r/min
100
Mate winch lifting force
T
-
Small Auxiliary hoist lifting force
T
1.5
High leg  trip
m
1.7
Efficiency footage
m/h
10-30
Walking speed
Km/h
5
Gradeability
slope
21°
Weight
T
4
Dimensions
m
3.3*1.5*2.4
Adapt to conditions
Loose layers and bedrock
Drilling mode
Hydraulic rotary top drive and propulsion,
DTH hammer drilling rig or mud
Impactor
Middle and high pressure series
Optional accessories
After circulating means, mud pumps,
centrifugal pumps, generators, foam

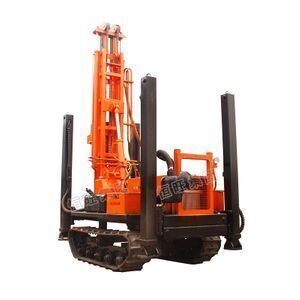

Product Real Photos





Factory



Certifications
