auto feeding small 3 cubic meters self loading mobile concrete mixer truck

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Jiang
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

UNIQUE SELLING POINT:	Low Maintenance Cost;	Place of Origin:	Shandong, China;
Degree of bias:	16 °;	Actual stirring capacity:	2.4 m3;
Applicable Industries:	Construction works ;	Single gross weight:	55.000 KG;
Video outgoing-inspection:	Provided;	Power:	78 Kw;
Local Service Location:	Viet Nam,Philippines,Peru,Indonesia,Thailand;	Single package size:	65X65X65 cm;
Certification:	ISO;	Condition:	New;
Marketing Type:	New Product 2020;	Weight:	5550kg;
Brand Name:	Hengwang;	Min. steering radius:	4500mm;
Core Components:	Engine;	Showroom Location:	Viet Nam,Peru;
Packaging Detail:	nude package on 40HQ;	Driving way:	4*4;
Selling Units:	Single item;	Warranty:	1 Year;
Rotary drum capacity:	2.3 m3;	Warranty of core components:	1 Year;
wheelbase:	2300mm;	Buckket capacity:	0.5 m3;
Rotation speed:	20-30 r/min;	Engine:	78Kw;
Dimension(LWH):	635025102850mm;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Climbing capacity:	30 °;
Machinery Test Report:	Provided;

Related Products

Product Description

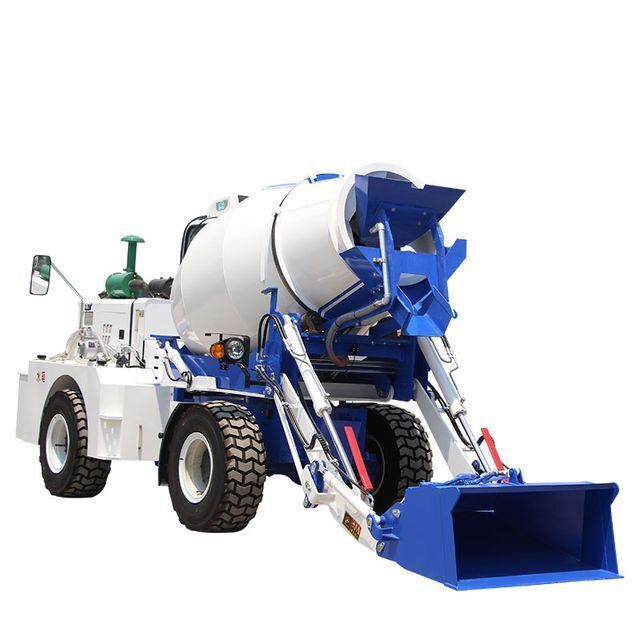

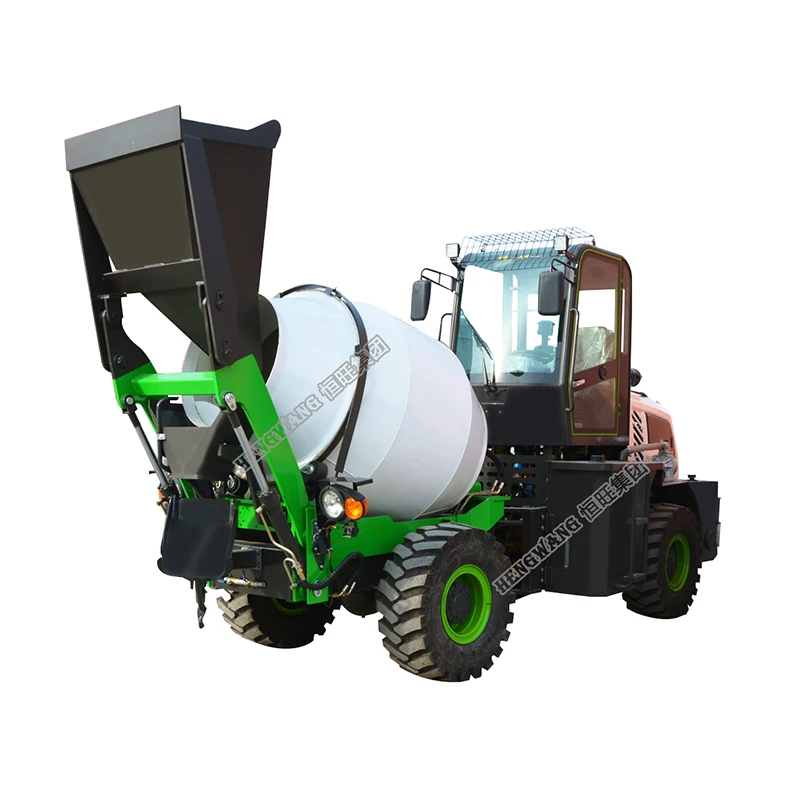

self loading concrete mixer truck

Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mixing and discharge concrete mixture. Equipped with powerful Yunnei / YUCHAI (Cummins optional ) Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate,stone,etc .

We have different capacity 0.8m3 ,1.2m3 ,1.8m3 ,2.0m3 ,2.4m3 ,3.5m3,4m3 ,etc.

Product Paramenters

auto supply mobile concrete mixer truck

Actual stirring capacity			2.4 m3
Rotary drum capacity			2.3 m3
Degree of bias			16 °
Rotation Speed			20-30 r/min
Direction of rotation			feed:clockwise output:counter clockwise
Mixing drum blade			Two sets of spiral blade and 4 sets of auxiliary blades
Slump of concrete			70-260mm
Hydraulic Power Transmission System
Pump model			CBGV-4025
Hydraulic model			BM5-400
Reducer Ratio			01:24
Water Supply
Tank Capacity			540L
Engine power			78Kw /2400 r/min
Max.torque			380 N.M /1500-1800 r/min
Max.running speed			24 km/h
Min. steering radius			4500mm
Climbing capacity			30 °
Tire			16/17-20
Driving type			4X4
Max.load capacity			5600kg
Whole machine weight			11150 kg
Dimension			635025102850mm
Wheelbase			2300mm
Bucket capacity			0.5 m3

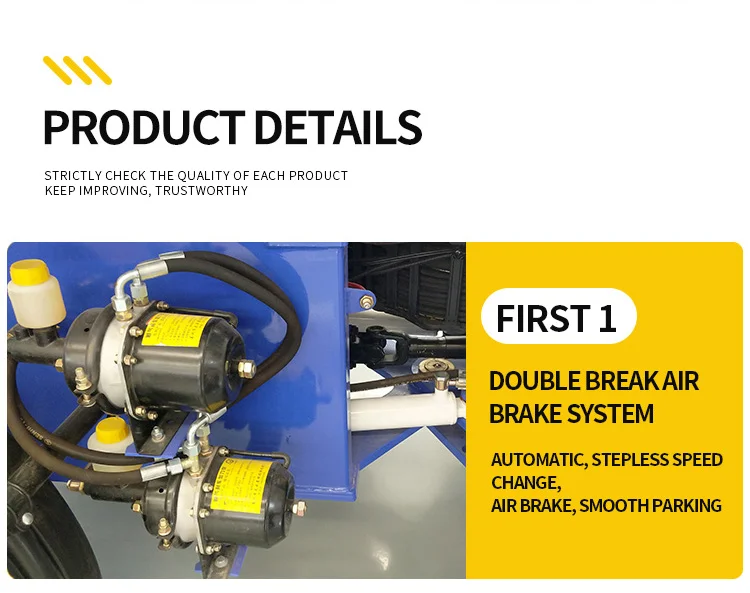

Detailed Images

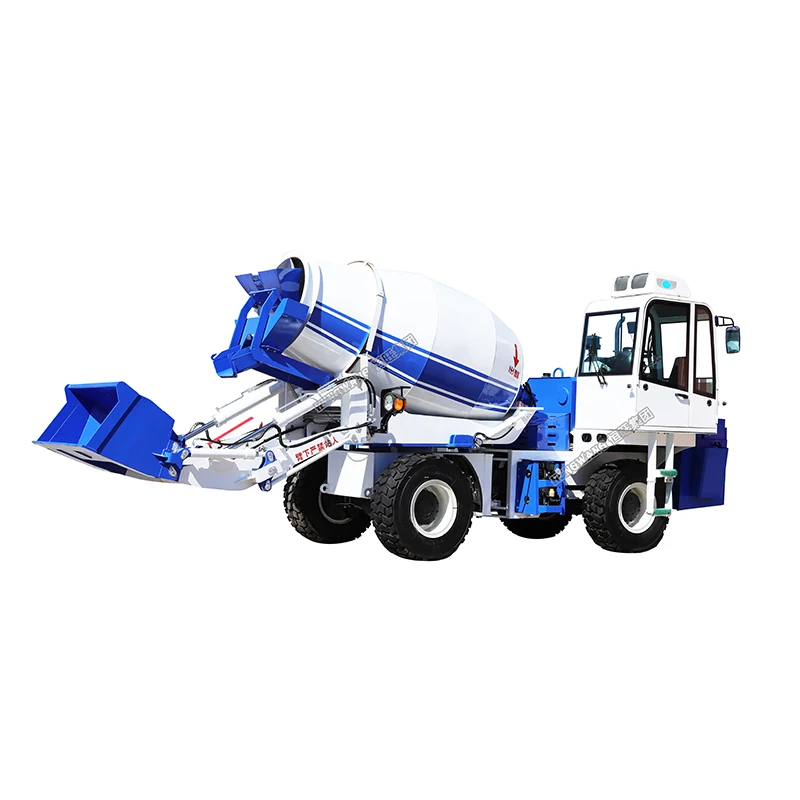

self loading concrete mixer truck

1.auto loading

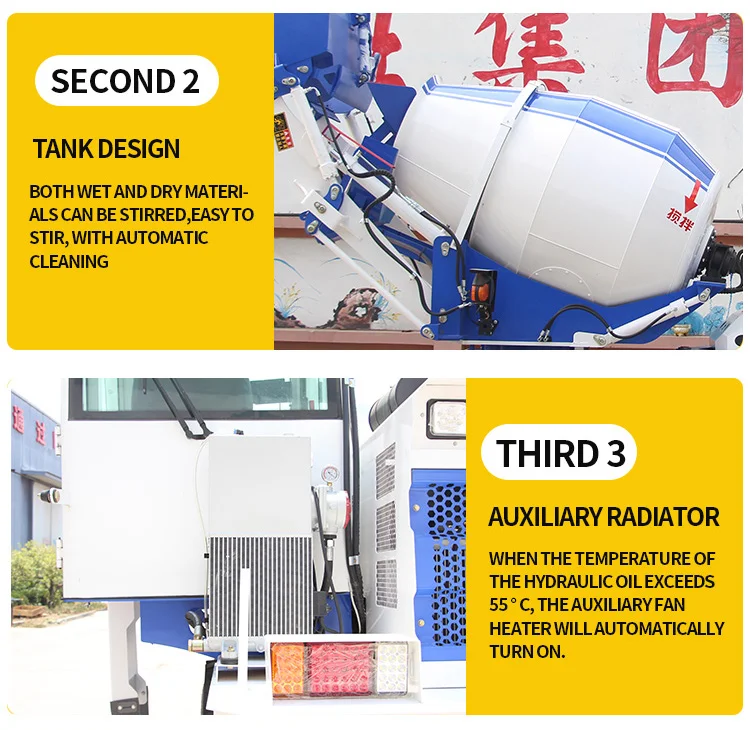

2.auto water supply

3.auto mixing ,mixing speed is about 20-25 r/min

4. 10 minutes can finish mixing one tank

5. powerful engine

Concrete Mixer Truck Advantage :
1. Italy leading design, automatic feeding mixing system
2. Simple and convenient operation
3. High efficiency output, save time and labor, save cost
4. The perfect combination of mixing truck and loader.

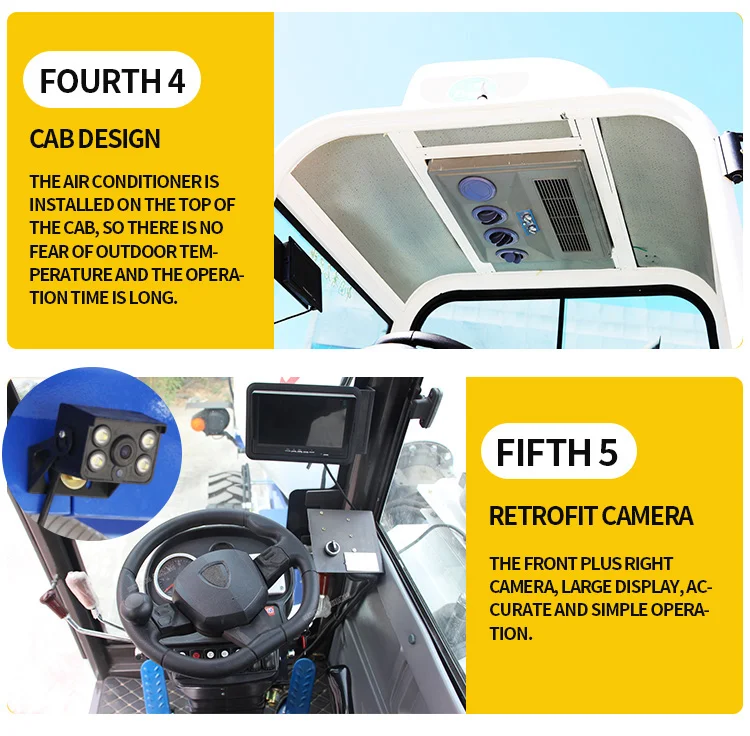

5.Standard equip with auto water metering supply , drive camara . and weighting system ,seat rotary , Air conditioning ,etc optional .
