YD-22 Railway Ballast Tamper/Rail Tamping Machine For Railway

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Jiang
Price: $2500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Name:	Rail Tamping Machine;	Supply Ability:	50 Piece/Pieces per Month;
Type:	Sleepers;	Max. lifting amount:	12-800mm;
Usage:	Railway Relaying and Maintaining;	Certificate:	ISO9001:2008;
Port:	Any China Main Port, Usually Qingdao Port;	Packaging Detail:	Plywood case (export standard) OR wooden box packing YD-22 Hydraulic Rail Tamping Machine railway ballast tamper;
Model Number:	YD-22 Railway tamping machine;	Material:	Carbon Steel;
Vibrating Frequency:	66.7Hz;	Brand Name:	Hengwang;
Keyword:	YD-22 Hydraulic Rail tamping machine railway ballast stamper;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Application:	Novel Structure,portable operation;	Dimensions (L x W x H) (mm):	1390mm750mm1600mm;
rated top lifting force:	150-250KN;	Weight:	25-600kg;
Place of Origin:	China;

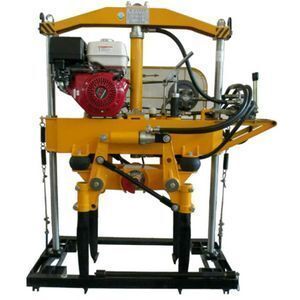

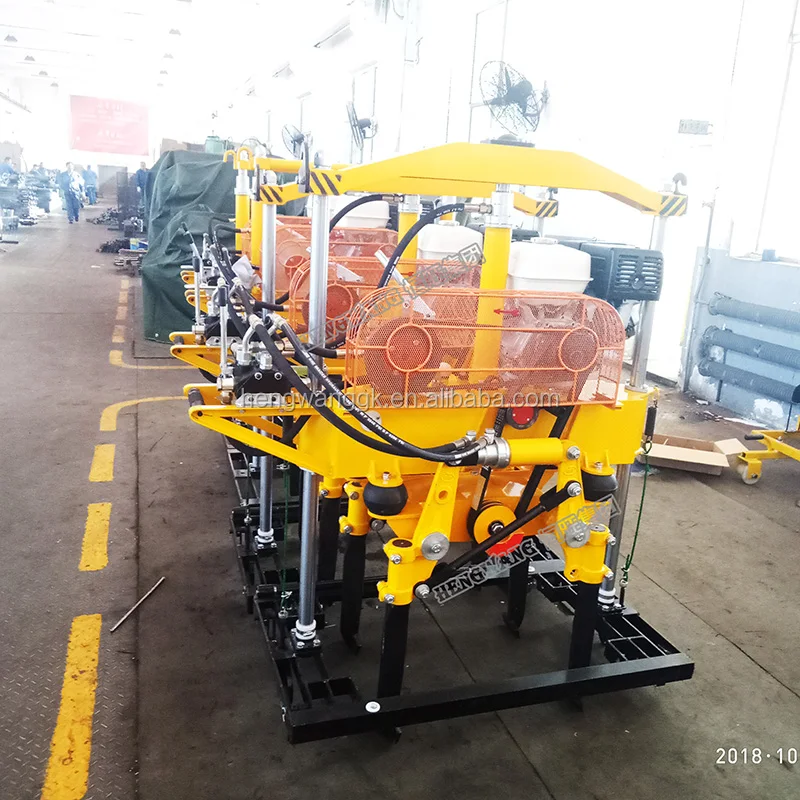

YD-22 Railway Ballast Tamper/Rail Tamping Machine For Railway

Product Description

Internal Combustion Rail Tamping Machine Description

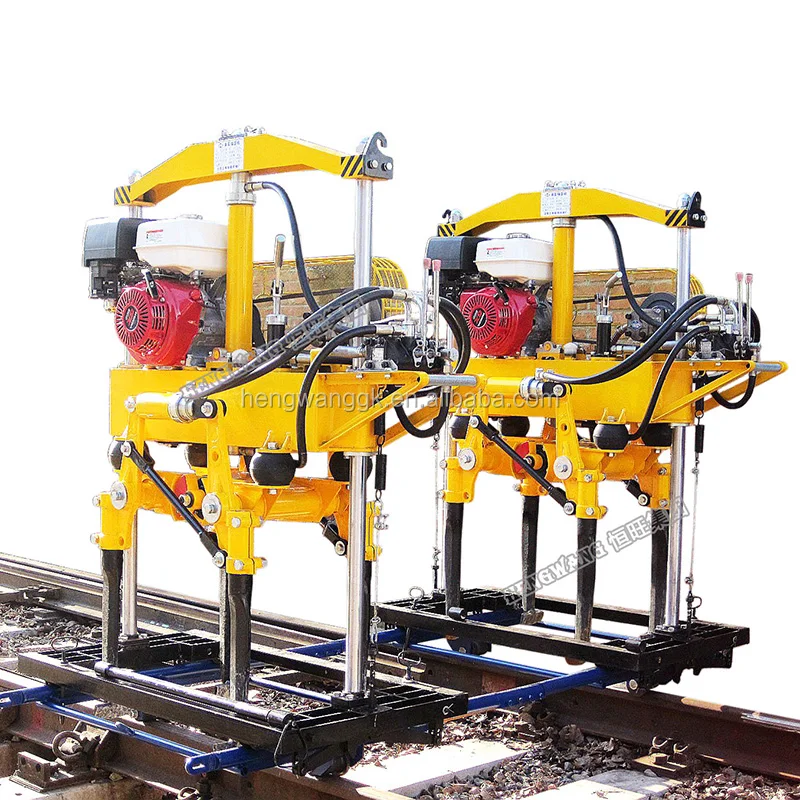

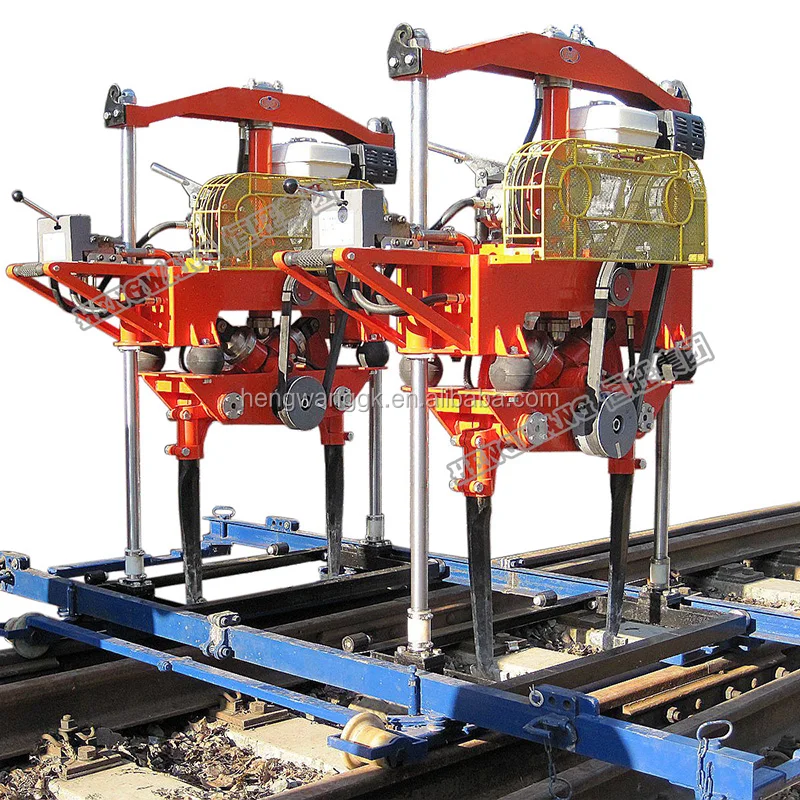

YD-22 Tamping machine is our upgrading products by collecting end-users’ experience at home and abroad,adopting new material and technology.It’s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation,and also suitable for tamping operation on the new track ballast bed.It adopts single cylinder structure,high-power,water-cooled diesel engine.It has the features that compact structure,big vibration force,good tamping quality,superior performance,safe and reliable,high efficiency,fully meet the needs of the railway ballast tamping operation.

Internal Combustion Rail Tamping Machine Parameter

Product	Description
Model	YD-22II Hydraulic tamping machine
Dimension	13907501600mm
Material	Metal and stainless steel
Color	yellow or orange
Application	Rail track ballast tamping operation

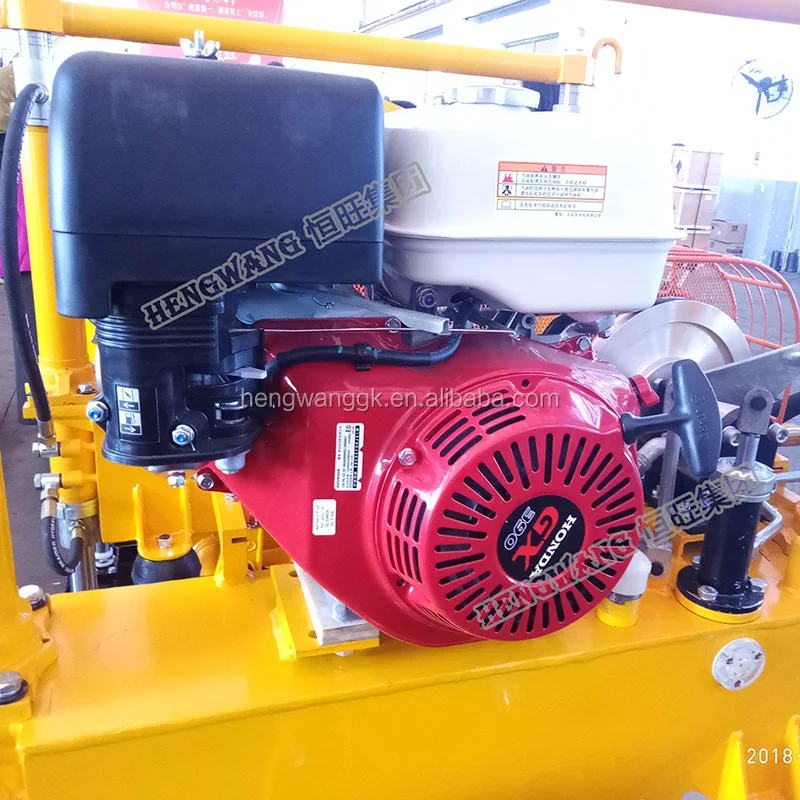

Motive power	GX390 petrol engine power:9.5KW, RPM:3600round/min
Hydraulic pressure	5~6MPa
Vibration frequency	66.7Hz
Exciting force	22kN
Max.under thrust force	110mm±10mm(beneath the sleeper)
Production efficiency	≥ 270pieces/(group/per hour)
Main frame net weihgt	422KG
