LCD Display Food Freeze Dryers for Sale

Product details
Voltage:220V 50HZ;Machine Dimension:600*460*(720+450) mm;
Certification:CE ISO;Packaging Detail:In wooden case or as your requirement.(food freeze dryers for sale);
After-sales Service Provided:Online support;Interlayer Spacing:70 mm;
Freeze Area:0.12 ㎡;Weight:120 kg;
Brand Name:ZZKD;Applicable Industries:Manufacturing Plant;
Dimension(L*W*H):600*460*(720+450) mm;Port:Shanghai, Ningbo, Dalian, Tianjin, Qindao Port;
Key Selling Points:High Safety Level;No-load Temperature:<-56 ℃;
Power(W):950 W;Vacuum Degree:<10 pa;
Ability to Capture Water:4 kg;Type:Freeze Drying Equipment;
Display:LCD Display;Plate Load Capacity:1.5 L;
Warranty:1 Year;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal, Credit Card, Secure Payment;
Condition:New;Supply Ability:500 Set/Sets per Month;
Cold Trap Size:215*216 mm;Application:Food Processing;
Sample Tray Size:4*200 mm;Place of Origin:Henan China;

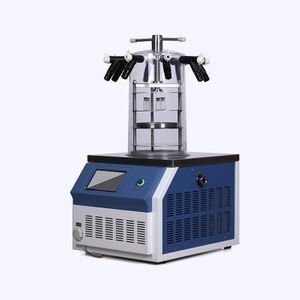

 LCD Display Food Freeze Dryers for Sale

Product Description

Freeze drier  machine is the watery element in advance to freeze, then lifted its moisture content under the vacuum state and obtain a technical method of dry goods, freeze-dried article easy to long-term preservation, after adding water can be recovered to form and maintain the original form of biochemical characteristics. For heat-sensitive substances such as antibiotics, vaccines, blood products, enzyme, hormone and other biological products, the freeze-drying technology can display its superiority, more suitable for laboratory the freeze-drying experiment and a small amount of production of the sample.

Freeze drier  is divided into four kinds: normal type mini freeze drying machine , gland type mini freeze drying machine, manifold type mini freeze drying machine, manifold pressure cap type mini freeze drying machine, with the function of precool.



Standard

Ordinary branch manifold

Condensing Temperature(no-load)

<-56℃

Vacuum degree(no-load)

<10Pa

Freeze-dried area

0.18m2

The material plate

Ø240mm×4 layers

Interlayer spacing

70 mm

Tray material

2L

Penicillin bottle

360



740



1320

Branch manifold quantity

8

Eggplant shaped bottle quantity

8

Catch water capacity

6kg

Cold trap size

Ø270mm×410mm

Power Supply

220V50HZ

Total Power

1.3kw

Motor dimensions

W670×D530×H800 mm


Details dhow:

Freeze Drier Features:

( 1 ) The freeze dried  machine  adopts international brand Danfoss compressor refrigeration, rapid , low temperature cold trap .

( 2 ) 7- inch TFT LCD touch screen control system , easy to operate , and powerful .

( 3 ) industrial embedded operating system , ARM9 core control circuit design , 32M RAM 128M FLASH, operating fast response, store large volumes of data .

( 4 ) control system automatically saves lyophilized data, and can be viewed in the form of real-time curve and the curve of history , the whole freeze-drying process clear.

( 5 ) drying chamber using colorless, transparent organic glass , clear and intuitive sample can be observed in the whole process of freeze-drying .

( 6 ) connected to a vacuum pump and a host of international standards KF quick connector , simple and reliable.

( 7 ) The machine can store multiple freeze-drying curve, and extracted with U-disk data to a computer, use the PC software to view and print a variety of options in the computer



Packaging & Shipping

Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.



+
Shipping methodNote
ExpressDoor to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By seaPort to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.



Our Services

Warranty & Service:
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan



Company Information

Company introduction:

Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation.



Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America





FAQ

1.What's the minimum order quantity?
One set at present
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood case
5.Can you accept OEM terms?
Sure.







We have the confidence in providing the professional products that you want.
For more details, welcome to contact us!  Click "Send" now!
