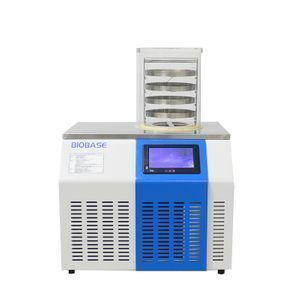

BIOBASE China Factory price freeze dryer with large LCD display panel/vaccum lyophilizer/vacuum freeze dryer machine

Supplier: Biobase Meihua Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Jeffrey Xue
Price: $1450.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Freeze Drying Area (m2):	0.12;	Supply Ability:	500 Unit/Units per Month;
Warranty:	1 Year;	Type:	Standard chamber;
Dimension(LWH):	580625530/960mm;	Type:	Freeze Drying Equipment;
Packaging Detail:	WOODEN BOX;	USB Interface:	Yes;
Final Condenser Temp (℃):	≤-56;	Brand Name:	BIOBASE;
Port:	QINGDAO,SHANDONG;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Model:	BK-FD10S;	Certification:	CE ISO;
Place of Origin:	Shandong China;	Vacuum Degree (Pa):	<10;
Payment Terms:	L/C,T/T;	Weight:	105kg;
Material Loading Capacity (ml):	1200;	Power(W):	/;
Material Loading Capacity/Shelf (ml):	300;	Ice Condenser Capacity (Kg/24h):	3;
Condition:	New;	Application:	Chemicals Processing;
Voltage:	AC220V±10%, 50/60Hz;	After-sales Service Provided:	Engineers available to service machinery overseas;

BIOBASE China Factory price freeze dryer with large LCD display panel/vaccum lyophilizer/vacuum freeze dryer machine

INTRODUCTION:

The tabletop type and vertical type freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

FEATURES
1. The 7 inch LCD display panel.
2. Cascade refrigeration technology.
3. With historical data inquiry function.
4. Drying cabinet is transparent which is visual and safe.
5. Large capacity Ice condenser trap and without coil inside.
6. The machine is equipped with USB interface on control panel.
7. Ice condenser trap and operation panel are made by stainless steel.
8. The pre-freeze shelf can be used as guide barrel to speed up the drying rate.

Technical Parameters

Model		BK-FD10S	BK-FD10T		BK-FD10P		BK-FD10PT
Type		Standard chamber	Stoppering chamber		Standard chamber with 8 port manifold		Standard stoppering chamber with 8 port manifold
Final Condenser Temp (℃)		≤-56	≤-56		≤-56		≤-56
Vacuum Degree (Pa)		<10	<10		<10		<10
Freeze Drying Area (m2)		0.12	0.09		0.12		0.09
Ice Condenser Capacity (Kg/24h)		3	3		3		3
Shelves		4	3		4		3
Material Loading Capacity/Shelf (ml)		300	300		300		300
Material Loading Capacity (ml)		1200	900		1200		900
Freeze Drying Time (H)		24	24		24		24
Manifold		/	/		8 pieces		8 pieces
USB Interface		Yes	Yes		Yes		Yes
Drying Chamber (Standard)		Transparent acrylic
Vacuum Pump (Standard)		Model: 2XZ-2, Speed: 2L/s (China-Made)
Control System		Microprocessor, touch screen
Power Supply		AC220V±10%,50/60Hz
External Size (WDH)		580625530/960mm
Package Size	Main Body	670660610mm
	Drying Chamber	350350570mm
	Vacuum Pump	570370190mm
Gross Weight		105kg		110kg	110kg	110kg
Note		Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; The vacuum pump, standard drying chamber and all other accessories,like valve, flask etc. are standard accessories; The vacuum pump is independently packed in a separate package.

Accessories

BIOBASE China

Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.

BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.

With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
