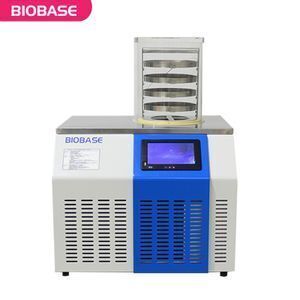

Drugs Biological Products Scorpion Venom BK-FD10PT China Freezer Dryer lyophilizer

Product details
After-sales Service Provided:Online support,Video technical support;Dimension(L*W*H):720*705*730;
Supply Ability:500.0 Set/Sets per Month;Vacuum Degree:<10 Pa;
Height Between Trays:68mm;Core Components:pump;
Place of Origin:Shandong China;Package Preview:;
Local Service Location:United States,INDIA,UAE;Cold Trap Temperature:≤-56℃;
Cold Trap Capacity:9.5L;Showroom Location:United States,INDIA,UAE;
Packaging Detail:Standard Wooden Package;Brand Name:Biobase;
Water Capture Capacity:3 Kg/24h;Power(W):1.3KW;
Model:BK-FD10PT;After Warranty Service:Video technical support;
Port:Qingdao Guangzhou Shanghai;Tray:3 pcs;
Application:Medicine Processing,Chemicals Processing,FOOD PROCESSING;Type:Stoppering chamber with 8 port manifold,Freeze Drying Equipment;
Key Selling Points:Automatic;Condition:New;
Certification:CE,ISO;Cold Trap Size (Diameter*H):215*260mm;
Marketing Type:New Product 2020;Voltage:220V/50Hz,60Hz (single phase);
Machinery Test Report:not available;Payment Terms:L/C,T/T,visa;
Freeze Drying Area:0.09 m2;Video outgoing-inspection:Provided;
Warranty:1 YEAR;Applicable Industries:restaurant,Energy & Mining;
Warranty of core components:1 YEAR;
Company



Product Description
  • Description

1. LCD touch screen.

2. With historical data inquiry function.

3. With USB interface to export the data.

4. Large capacity ice condenser trap and without coil inside.

5. With cascade refrigeration technology.

6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.

7. Ice condenser trap and operation panel are made by stainless steel.

8. Drying chamber is transparent which is visual and safe.

9. Shelves are stainless steel, which can be adjustable per the requirements

  • Technical Parameters

Model

BK-FD10S

BK-FD10P

BK-FD10T

BK-FD10PT

Type

Standard chamber

Standard chamber with 8 port manifold

Stoppering chamber

Stoppering
chamber with

8 port manifold

Freeze Drying Area

0.12 m2

0.09 m2

Tray

4 pcs

3 pcs

Height Between Trays

50mm

68mm

Cold Trap Temperature

≤-56℃

Cold Trap Capacity

9.5L

Cold Trap Size (Diameter*H)

Φ215*260mm

Vacuum Degree

<10 Pa

Water Capture Capacity

3 Kg/24h

Tray Size (D*H)

Φ200*20mm

Φ180*20mm

Freeze Drying Time

24h

Loading Capacity/Shelf (Liquid)

0.3L

Total Loading Capacity (Liquid)

1.2L

0.9L

Drying Chamber Size (Diameter*H)

Φ260*310mm

Φ260*450mm

Total Qty. Of Vial Φ22

260

195

Total Qty. Of Vial Φ16

480

360

Total Qty. Of Vial Φ12

920

690

Refrigerant

R600a+R290+R23

Cooling System

Air cooling

Power Supply

220V/50Hz,60Hz (single phase)

110V/60Hz (single phase)

Power Consumption

1.3KW

Standard Accessory

Vacuum pump 2L/S, 8m3/h (for all models)

Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT)

Optional Function & Accessory

Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT)

Import vacuum pump

External Size (W*D*H), mm

640*610*550/810

640*610*550/950

640*610*550/990

Package Size(W*D*H),mm/Gross Weight

Main Body

720*705*730(83kg)

Drying Chamber

/Vacuum Pump

590*705*530

(40kg)

590*705*530

(44kg)

590*705*530

(50kg)

590*705*530

(53kg)



  • Package







comany show

Shipping Way



Certifications

We are certificated by ISO9001, ISO3458, ISO14001, CE Mark, MET and NSF 49, EN 12469.



package

Fast  Transportation

Shipped in 15 days after payment
