2020 BIOBASE LCD Digital Biological Microscope with Backward Quadruple Nosepiece

Product details
Model Number:DM-125;Eyepiece:WF10X/18;
Packaging Detail:wooden box;Viewing Head:Monocular Head Inclined at 30°;
Place of Origin:Shandong China;Payment Terms:L/C,T/T,Western Union;
Theory:Biological Microscope;Achromatic Objective:4X ,10X,40X,100X;
Nosepiece:Backward Quadruple Nosepiece;Drawtube:Monocular;
Supply Ability:100 Unit/Units per Month;Package Size:370*260*465mm;
Optical System:Finite Optical System;Port:Qingdao ,Guangzhou;
Power Supply:AC110/220V±10%,50/60Hz;Brand Name:BIOBASE;
Accessories:Polarization Set ;Phase Contrast Kit;Model:DM-125;
Fluorescent Attachment:Fluorescent Illumination, LED Lamp;

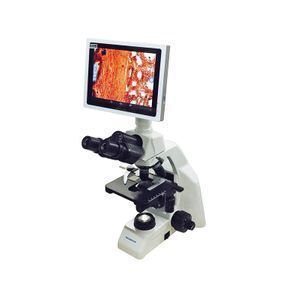

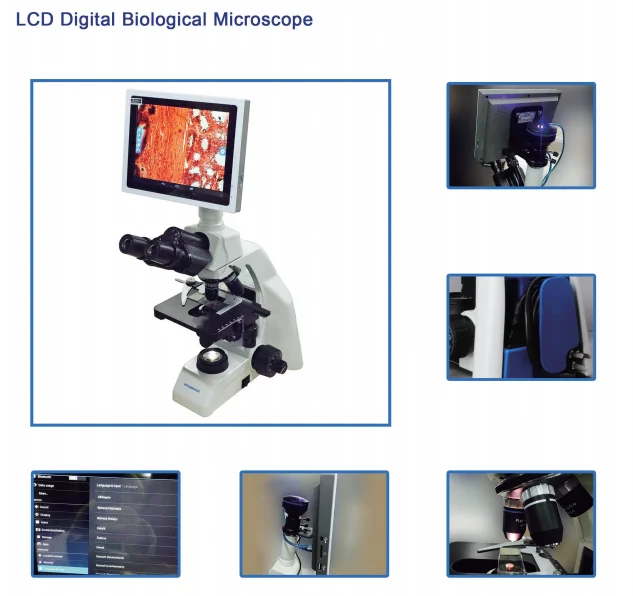

 LCD Digital Biological Microscope











Features:

* 8’’Touch screen LCD display

* Support WiFi and Bluetooth,HDMI video output and SD card expansion .

* The integration of structure design,to save space.

* Valid mouldproof design,it can be used under the high temperature and high humidity environment.



Model

DM-125

Optical System

Finite Optical System

Eyepiece

WF10X/18

Viewing Head

Monocular Head Inclined at 30°



Seidentopf Binocular Viewing Head Inclined at 30°,

Interpupillary 48~78mm

Seidentopf Trinocular Viewing Head Inclined at 30°,

Interpupillary 48~78mm



Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi



Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS



Achromatic Objective

4X    N.A=0.1   WD=17

10X   N.A=0.25  WD=7

40X   N.A=0.65  WD=0.53

100X  N.A=1.25  WD=0.13

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140x140mm, Moving Range 75x50mm

Condenser

NA 1.25 Abbe Condenser

Dark Field Condenser (Dry, Oil)



Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,

Moving Division 25mm

Illumination

S-LED Illumination



S-LED Illumination with Recharger

Kohler Illumination



ECO Function



Plane-cancave Mirror



Fluorescent Attachment

Fluorescent Illumination, LED Lamp



Fluorescent Illumination, 100W HBO Lamp



Power Supply

AC110/220V±10%,50/60Hz

Accessories

Polarization Set



Phase Contrast Kit



Package Size

370*260*465mm

Gross Weight

8.5kg



Trinocular microscope can be installed camera and scree
