Model Number: | Lantian series; | Warranty: | One year; |
Supply Ability: | 50 Set/Sets per Month wooden sawdust dryer for sale; | Brand Name: | Lantian; |
Size: | Can be custmoized; | Place of Origin: | Henan China; |
Color: | Any color; | Dimension(L*W*H): | According to your type; |
Port: | Qingdao port, Shanghai port; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Type: | Rotary Drying Equipment; | Packaging Detail: | Main machine loaded in standard container 20GP, 40GP, etc. Spare parts are wrapped with plastic, nude package, or free fumigation wooden case with steel frame.; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash; | Type: | wooden sawdust dryer for sale; |
Raw materials: | Sawdust, sand, coal, clay; | Voltage: | 380v; |
Factory: | 30 years history; | Application: | Sand, coal, sawdust,; |
Shipping: | Standard container; | Power(W): | 3-155kw; |
Certification: | CE ISO; | Weight: | According to your type; |
Delivery Detail: | Within 15 days; | Warranty: | One year; |
Certificates: | CE ISO; | Install: | Overseas; |
Condition: | New; |

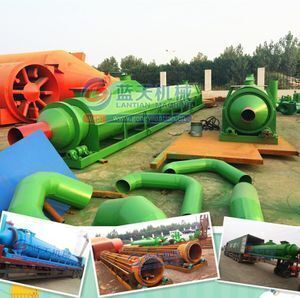

Chicken manure dryer rotary drum dryer wooden sawdust dryer for sale
1.Product description of wooden sawdust dryer for sale
Lantian series wooden sawdust dryer can dry many different raw materials contain moisture, such as sawdust, coal, coal slurry, slag, clay and other wet materials. They are widely used in building materials, metallurgy, and chemical industry.
Wooden sawdust dryer cosists of rotary body, lifting blade, driving device, supporting device, sealing ring and other components.
Heating source can be coal, charcoal, wood, wood chips, gas, electricity, oil, wind power, etc.
Working principle: The drum of the dryer is a slightly inclined cylindrical rotatable body. The wet materials enter into from the upper end and dry materials are collected from the lower part of the other side. Hot air enter from the feed end or the discharge end, and exits from the other end of the upper part. Cylinder allocated with forward copy board make the material in the process of rotating in cylinder are constantly raised and shed and made full contact with the hot air, in order to improve efficiency and make the drying material to move forward. Usually the heating source of dried material is heat hot air, hot flue gas and water vapor.
The types we had as follows, others can be customized according to your special demands.
Specification
(m) | Drum diameter | Drum length | Inclination | Rotate speed | Power | Volume | Weight |
0.6×8 | 600 | 8 | 3-5 | 8 | 4 | 2.26 | 5.1 |
0.8×10 | 800 | 10 | 3-5 | 7.2 | 4 | 5.02 | 6.9 |
1.0×10 | 1000 | 10 | 3-5 | 6.73 | 5.5 | 7.85 | 7.5 |
1.2×12 | 1200 | 12 | 3-5 | 5.8 | 11 | 13.31 | 13.1 |
1.5×12 | 1500 | 12 | 3-5 | 4.8 | 15 | 21.2 | 22.3 |
1.8×14 | 1800 | 14 | 3-5 | 3.2 | 30 | 48.22 | 45.8 |
2.2×1.8 | 2200 | 18 | 3-5 | 3 | 37 | 70.43 | 50.3 |
2.4×20 | 2400 | 20 | 3-5 | 2.83 | 45 | 90.43 | 78.4 |
2.8×24 | 2800 | 24 | 3-5 | 2.59 | 75 | 147.8 | 97 |
3.0×20 | 3000 | 20 | 3-5 | 2.6 | 55 | 141.3 | 102 |
3.0×25 | 3000 | 25 | 3-5 | 2.6 | 75 | 176.7 | 110 |

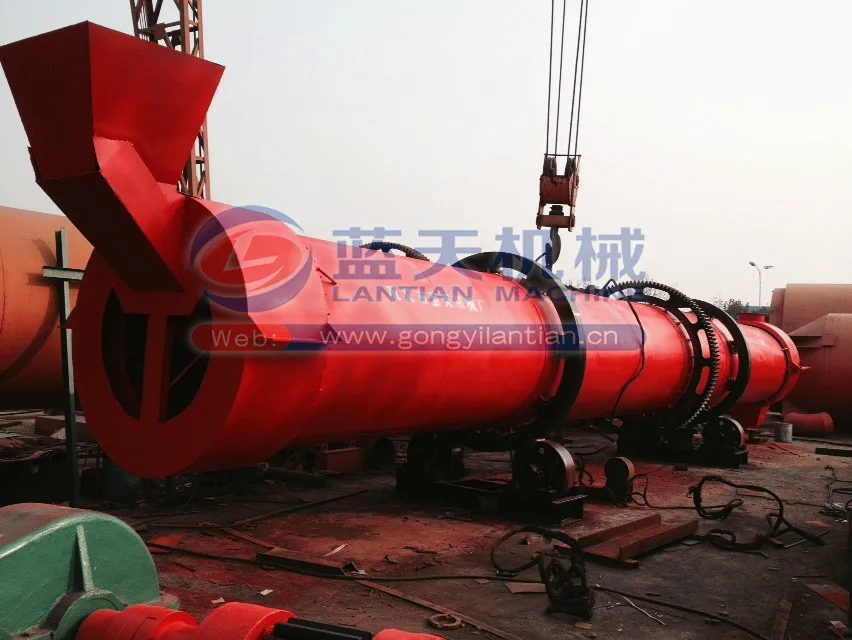

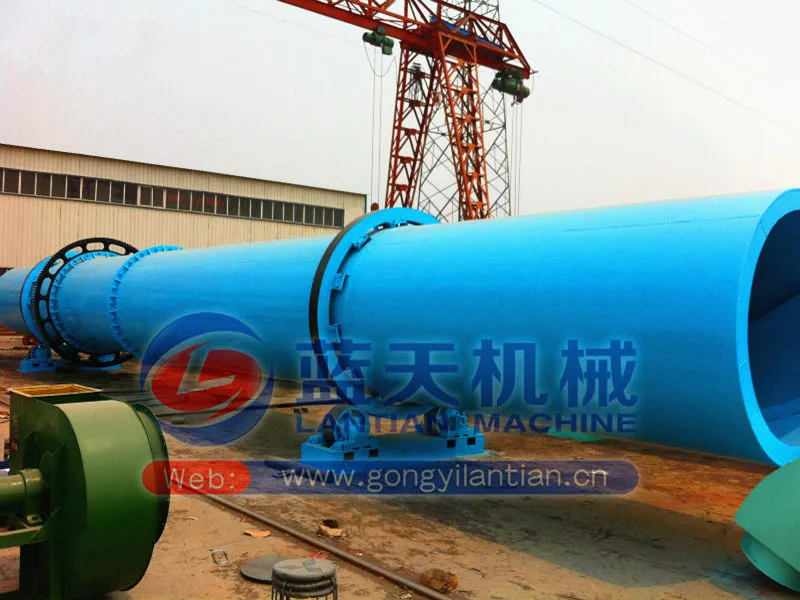

The first kind: (mutil function dryer)
This dryer not only can dry sawdust, but also can dry sand, coal, chicken manure, cassawa, sugar bagasse,etc.

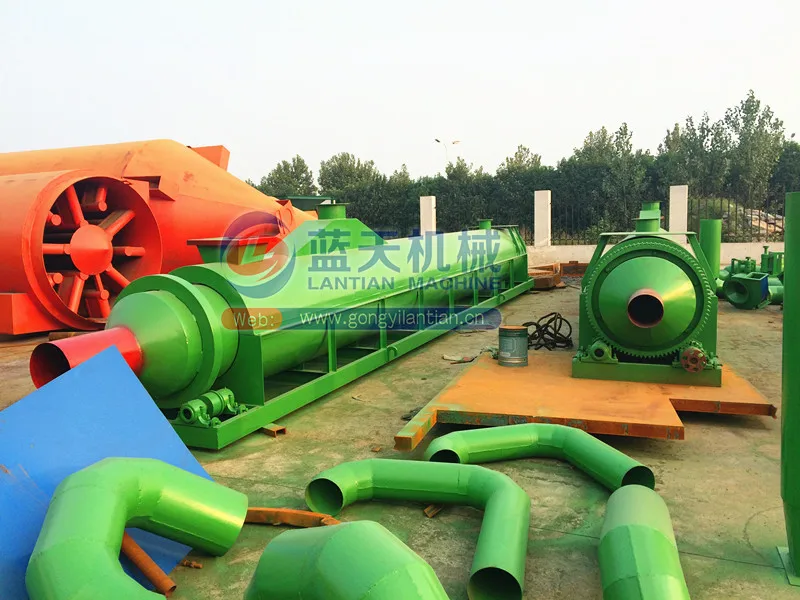

The second kind:

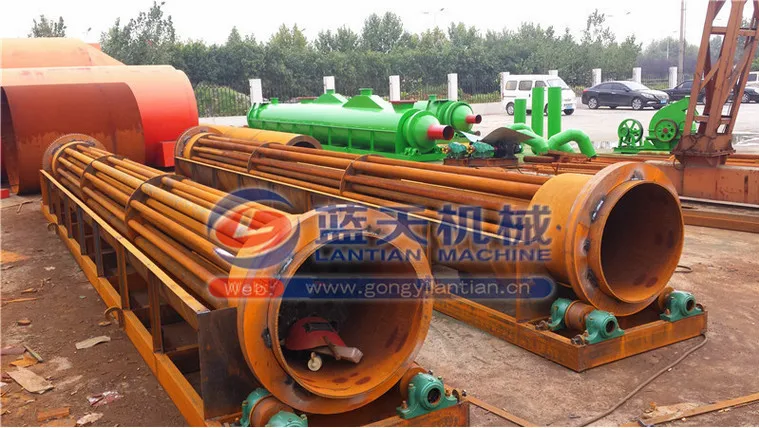

This dryer is specialied in drying sawdust, it is indirect dryer, because inside there are 31 pipes, hot air enter pipes and diffuse heat to rotary body, so it drys sawdust gradually.

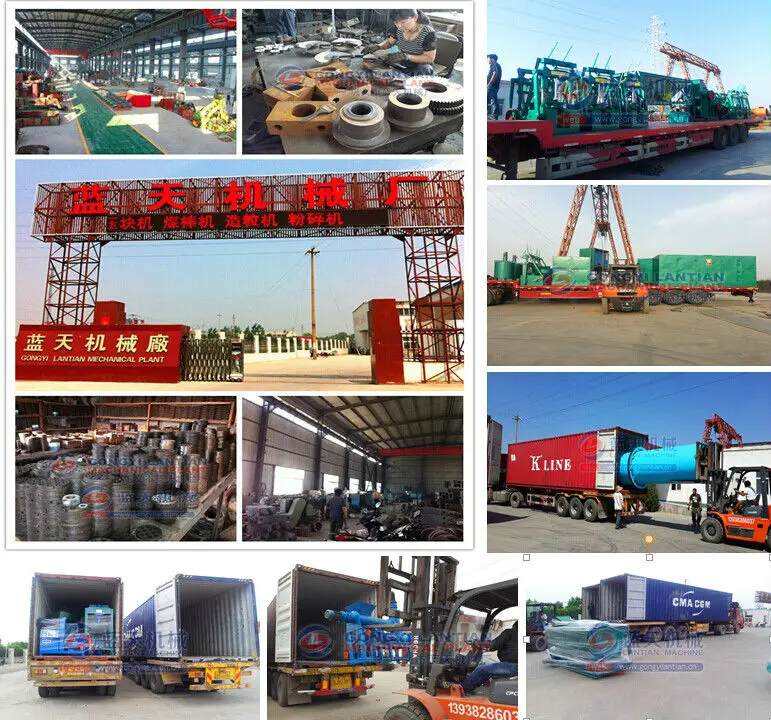

2. Packaging and shipping of wooden sawdust dryer

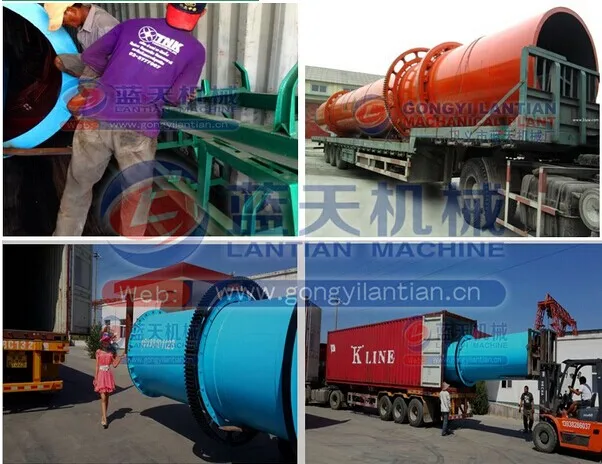

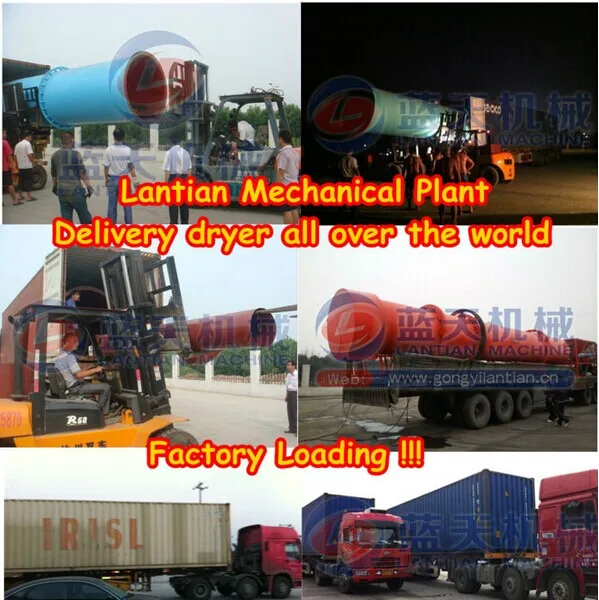

When shipping wooden sawdust dryer, the main machine is loaded in standard container 20GP, 40GP, 40HQ, etc. The small spare parts are wrapped with plastic, with nude package, or packed in free fumigation wooden case with steel frame.

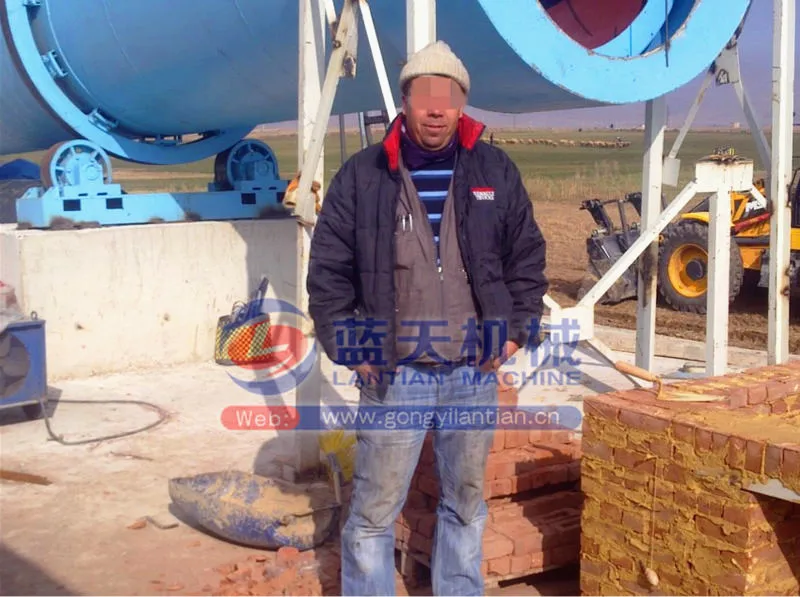

3. Install rotary dryer in different countries.

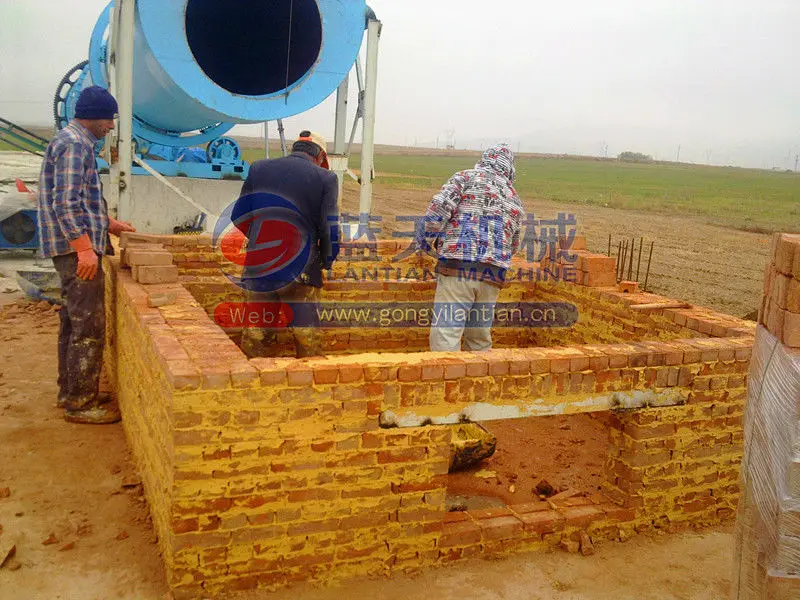

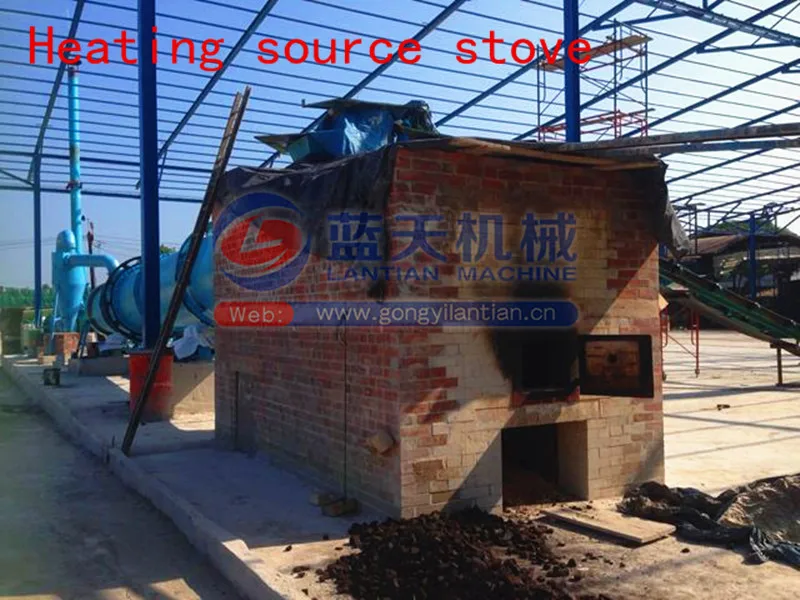

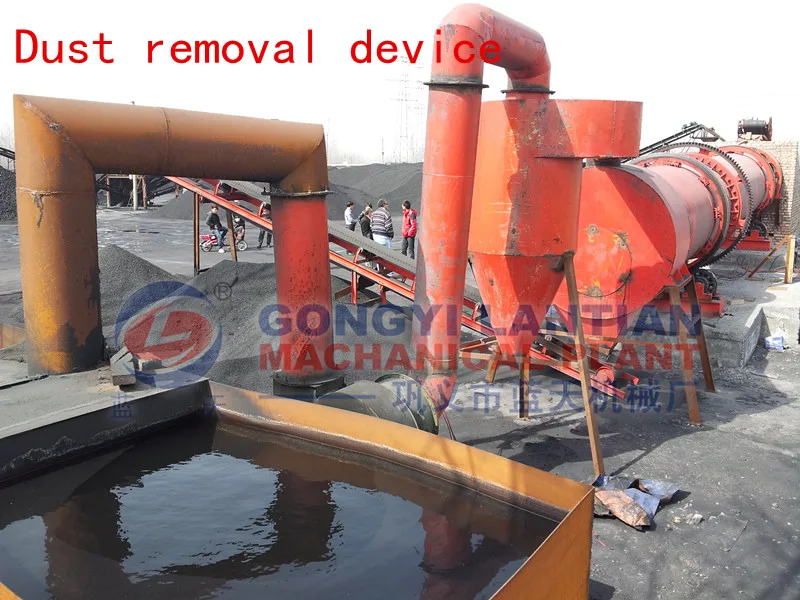

We will dispatch our engineer install dryer to your country, build up the heating source stove and dust removal device, etc.
4. Company information
We are a 29 years factory, located in Gongyi city (mechanical city), Henan Province, China. 30 years dedicated development, we have own patented products, we have many customers from home and abroad, some even become our long term parters and agents. Good product quality and perfect after-sales service alwalys are our purpose, and guarantee to our customers.
Our main products are coal briquette machine, charcoal briquette machine, shisha charcoal machine, biomass briquette machine, pellet machine, rotary dryer, box dryer, mesh belt dryer, vertical dryer, carbonization furnace, crusher, conveyor belt, etc.
5. Our service
Pre-sale service: After know all your requirements, we will make a detail project for you, then suggest suitable machines ( a single machine, several machines or a complete production line) for your reference.
Middle-sale service: Before you visit our factory, we will book hotel in advance, and pick up you at airport.
Also we will arrange some characteristic tours for you.
After-sale service: We will dispatch our engineer install machine to your country, also maintain overseas in future. All our machines have one year warranty.
