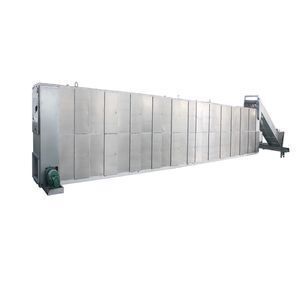

Stainless Steel Hemp Flower Seed And Hemp Stick Mesh Belt Drying Machine

Supplier: Gongyi Lantian Mechanical Plant
Region: Henan, China
Contact: Ms. Lina Wang
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	Carbon Steel or 304 SUS;	Installation:	Under Technician's Guidance;
Fuel:	Electricity Etc;	Applicable Industries:	Food & Beverage Factory,Farms,Restaurant,Home Use,Food Shop,Construction works ,Energy & Mining,Food & Beverage Shops;
Colour:	Customer's Riquirement;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	40GP continer;	Key word:	dryer machine;
Application:	Medicine Processing,Chemicals Processing,Food Processing;	Key Selling Points:	Multifunctional;
Place of Origin:	Henan China;	Weight:	3000kg;
Power(W):	1.1-11kw;	Brand Name:	Lantian;
Condition:	New;	Dimension(LWH):	1012.2m;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Certification:	CE, ISO;
Warranty:	1 Year;	Voltage:	220v, 380v, or customized;
Heating source:	Gas Coal Oil Electric;	Type:	Fluid Bed Drying Equipment;
Name:	Mesh Belt Dryer;	Control:	PLC Control System;

Product Description

Stainless Steel Hemp Flower Seed And Hemp Stick Mesh Belt Drying Machine

Product Application

Based on the characteristics of material and practical experience, our factory products the hemp drying machine, improve the drying efficiency, to solve the requirements of weather and site area; at the same time to solve the drying cost of labor, the quality of instability ,thus greatly reducing the cost of material drying, to achieve a large quantity material production.hemp drying machine is the continuous drying equipment in large quantities dehydrated production. The hemp drying machine running speed, drying temperature and humidity can be adjusted to meet the different water content, different varieties of materials.

If you interesting in our machine, please contact me

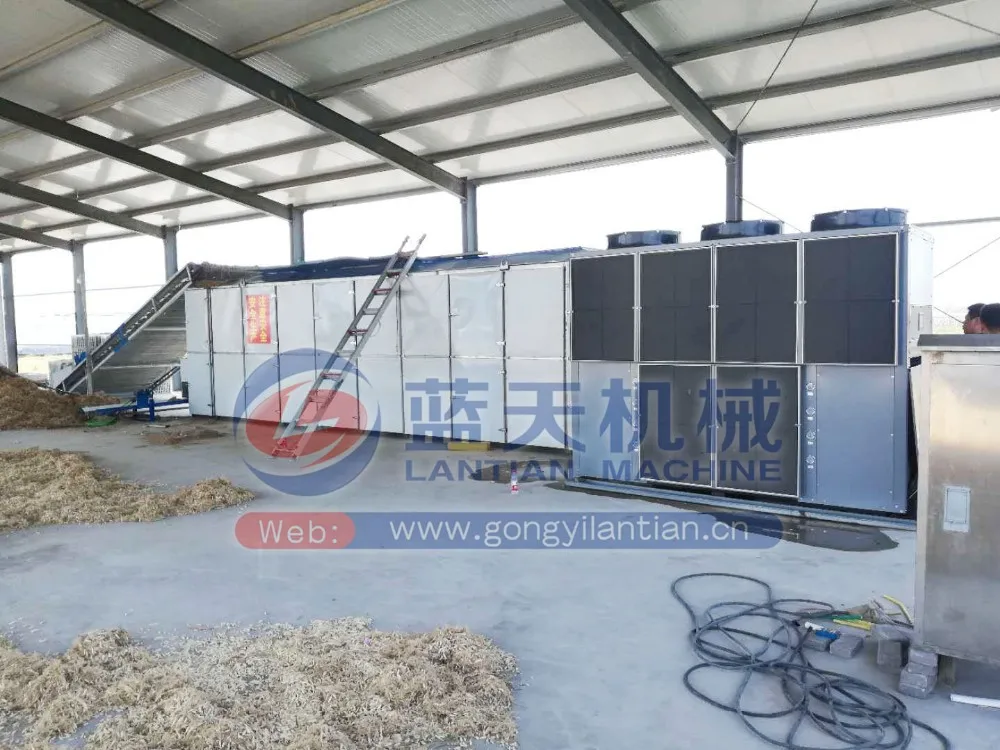

Brief introduction of Stainless Steel Hemp flower seed and hemp stick mesh belt drying machine

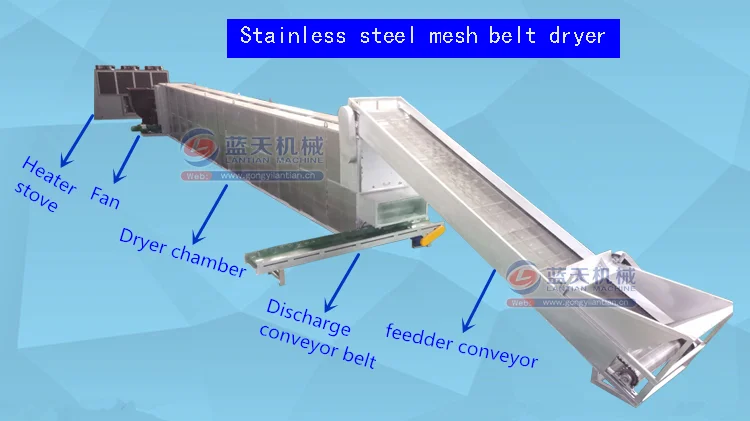

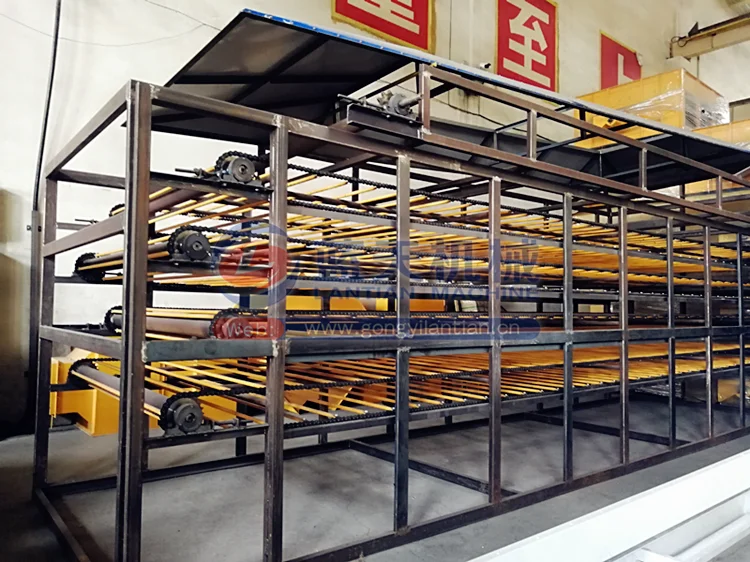

Mesh Belt dryer will have to deal with the maerial through the appropriate charging machine, distribution on the conveyor belt,conveyor belt through the hot air circulation system, circulation system has one or several wet system. Material from the conveyor belt, through the hot air after allocator, blowing into jet mesh belt, from the bottom up and from the top down through the conveyor belt material, so that the material uniform drying. Applicable to a variety of vegetables , fruits, sea food, etc.The temperature can up to 90 degrees. you can set the degree according to raw material, it belong to coutinus dryer, so the ouput is bigger than other type.

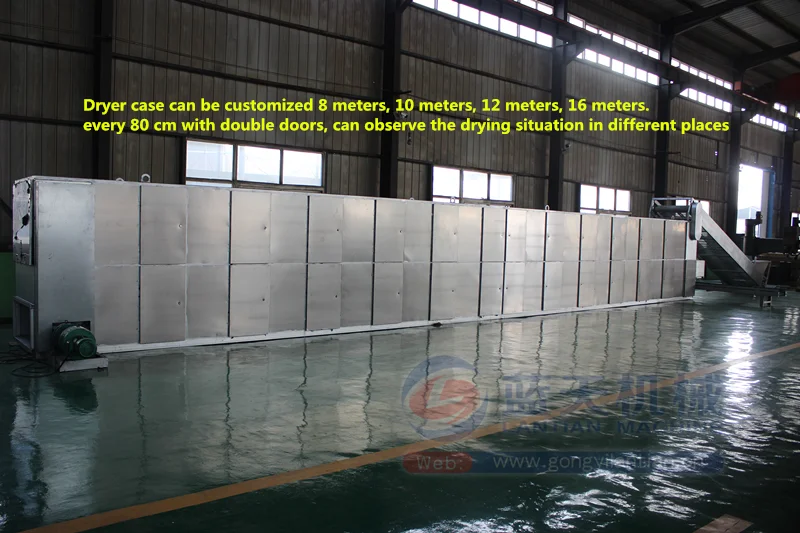

The utility model is provided with a door on both sides of the baking room to facilitate the installation and maintenance of the equipment in the baking room and the troubleshooting of the equipment;An observation hole is set on the door to observe the baking condition in real time.The baking tray is arranged on the chain. Driven by the chain, continuous baking can be realized.The chain and the baking sheet are connected by a movable matching connection, which can quickly remove the baking sheet and put the baking sheet on the baking sheet;The driving device is driven by a frequency conversion motor, which can adjust the running speed of the chain according to the required baking time.The utility model USES electric heating elements to heat and the temperature of the baking room can be adjusted by a temperature control device.The utility model can realize continuous baking operation with high thermal efficiency and baking efficiency.The utility model has simple structure, reliable operation and is suitable for drying the flower and leaf of industrial hemp.

Main Features

1.You can adjust the amount of air, heating temperature,residence time,and feed rate in order to achieve the best
drying results.
2.Device configuration flexibility, you can use mesh belt and material cooling system flushing system.
3.Heating source can be steam, oil, electricity or coeal fired(oil),stove supporting

The suitable raw material :

1>Fruit:Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple, lemon, hawthorn pills, bananas, etc.

2>Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus, tremella, papaya tablets, pills, bitter melon, radish, cucumber slices, mushrooms, mushrooms, ginger, garlic, etc.

3>Medicinal material:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae, codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc.

4>Others:Lily, rose, peony seed,fennel seeds,etc.

Certifications

Lantian mechanical plant

Lantian Mechanical Plant, which located in Gongyi, Henan province, is a modern enterprisewhich sets the scientific research, production and sales as a whole.We have a modern management system, the first-class processing art, perfect detection means. our factory have more than 20 years, we main supply many type fruit and vegetable and fruits washing machine, peeling machine, slicer machine, dryer machine.

Detailed Images

Machine Parts

Name:Intelligent control cabinet

Brand: lantian

Equipped with PLC, can be set during drying process,according to the moisture requirements of raw materials, different speeds can be set for drying.

Main Features

Name: Hot air stove

Brand: lantian
Dimension: 2200*1100 *2200
Weight :800kg
Heating fuel: Coal, wood, natural gas, propane, water vapor, electric heating.

Machine Parts

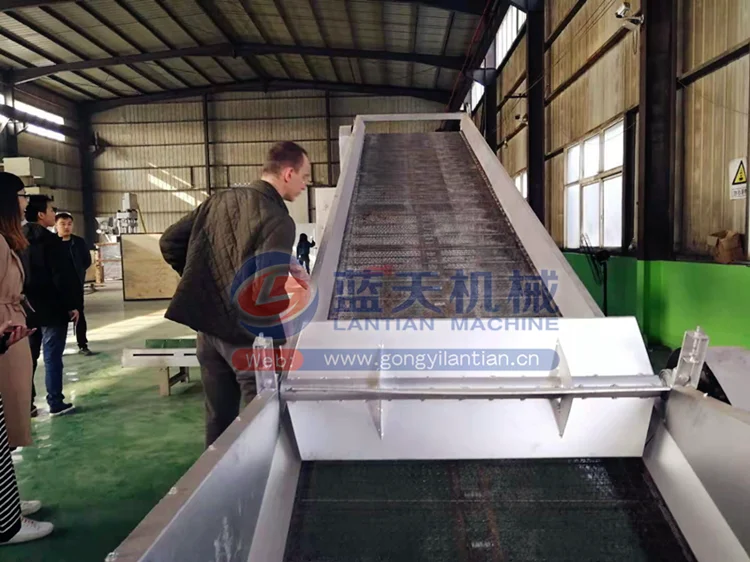

Name: Output conveyor
Brand: FESTO
Dimension: 4*0.6*0.3 m
Weight :100kg
Motor: 1.1kw
In order to facilitate loading, we support customized conveyor belt to adjust a certain Angle

Main Features

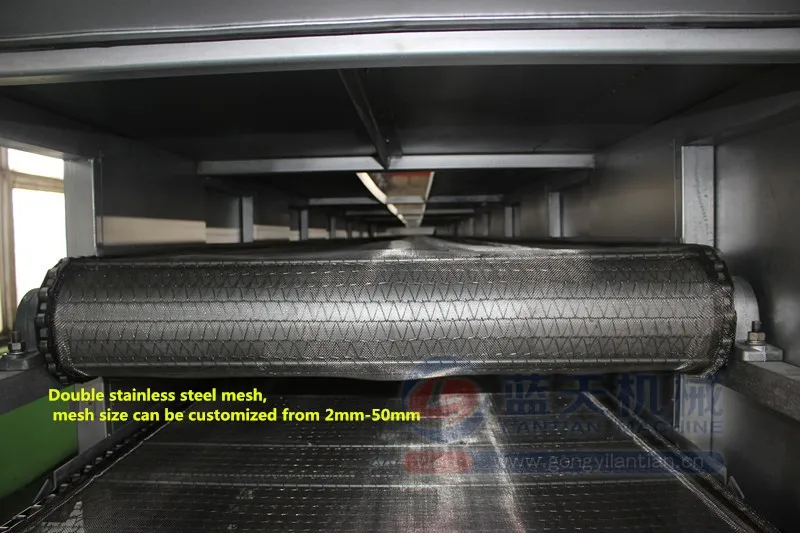

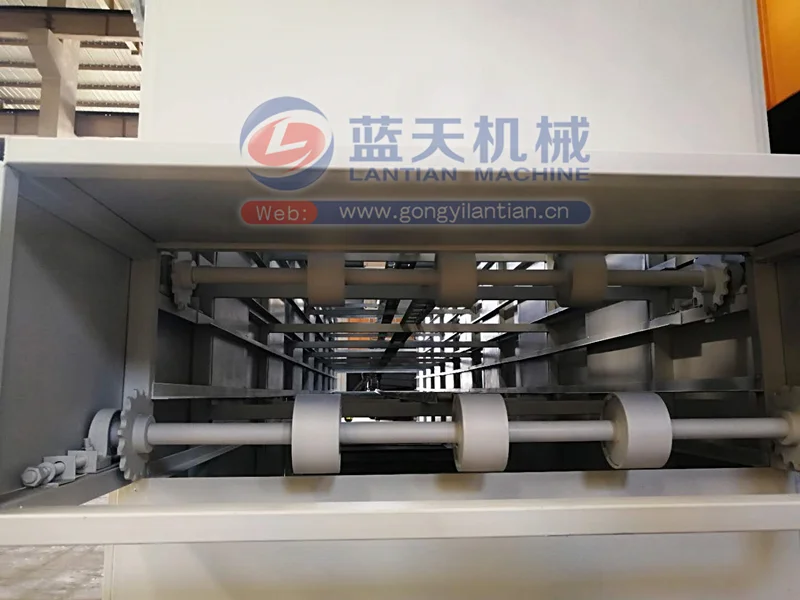

Name: mesh belt
Brand: lantian

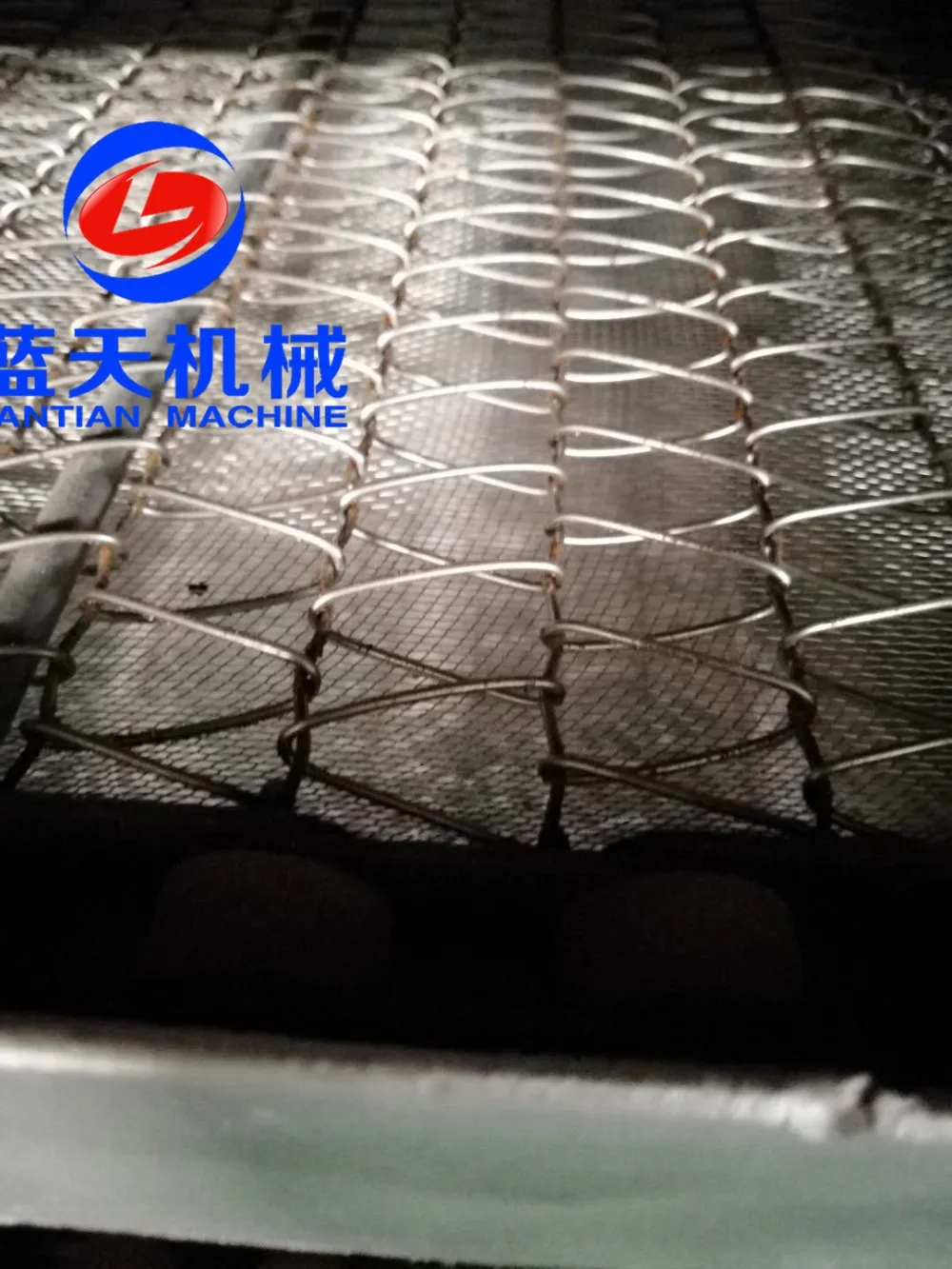

For the mesh chains inside the dryer, my factory designs to cover a fine stainless mesh. In this way, we can exchange only this fine stainless mess instead of changing mesh chains after using 2 years or 3 years ( this can reduce your future inusetment.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

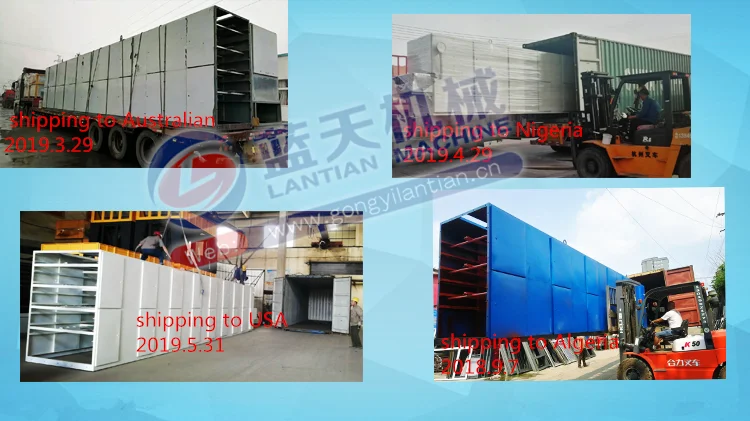

Packing & Delivery

Other type dryer machine

In addition to the mesh belt dryer we have other models of dryer to choose from.

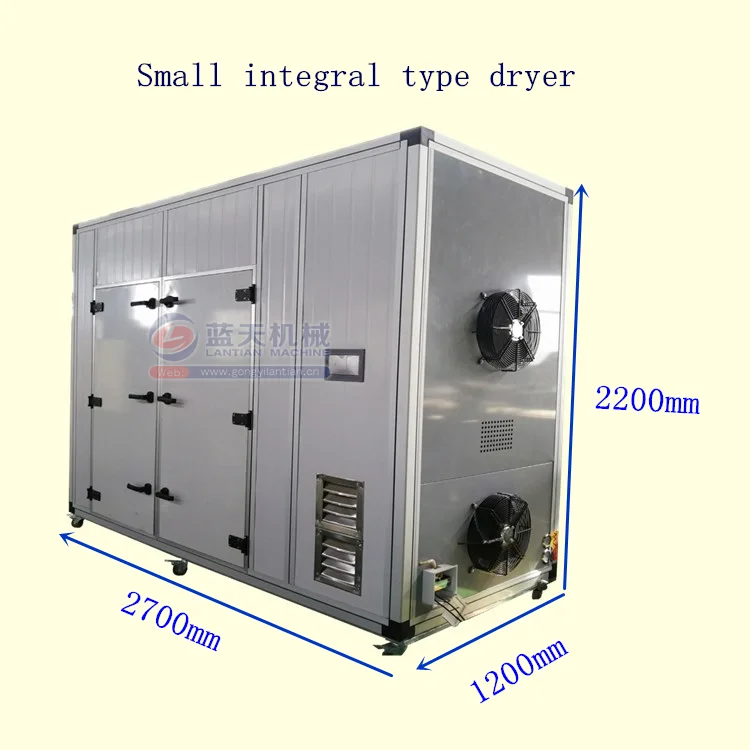

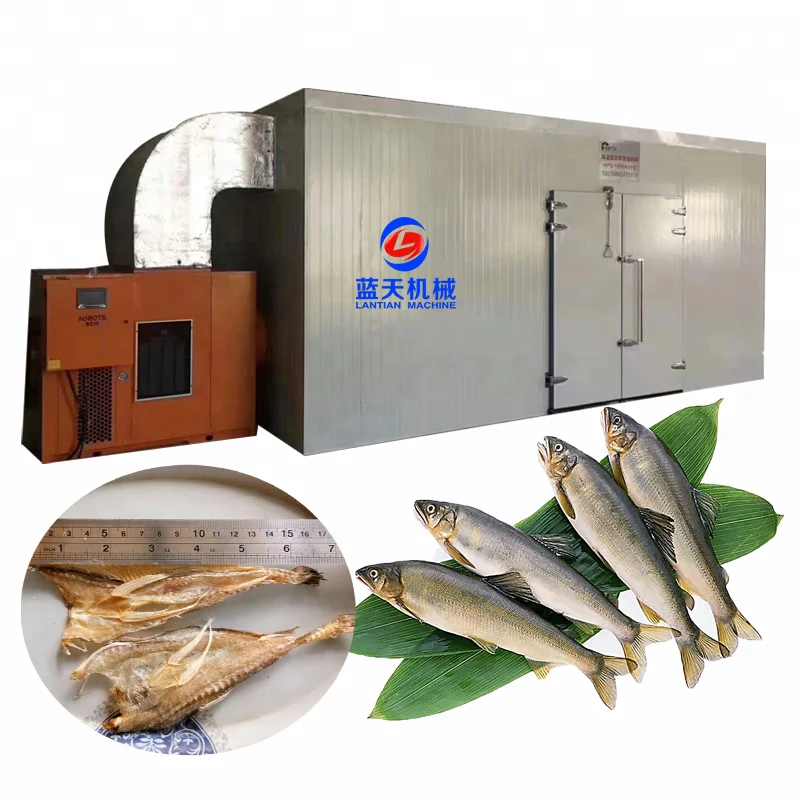

Because the mesh belt dryer machine suitable for big size capacity , if you capacity is small, you can choose 3P, 7P, 14P heat pump dryer machine.
