USB port: | 4*USB3.0+2*USB2.0; | Size: | 134*124*36mm(L*W*H); |
Key Feature1: | fanless mini pc core i5; | CPU: | Core i5 fanless; |
Model Number: | X5500M; | Graphics Card: | HD Graphics 4400; |
Widescreen: | Yes; | Optical Drive Type: | no; |
Products Status: | Stock; | Graphics Card Type: | Integrated Card; |
Certificates: | CE/CCC/FCC/ROHS/ISO9001; | Key Feature2: | mini pc 12V; |
Screen Size: | No Monitor; | Processor Brand: | Core i5; |
Warranty: | 3 Years; | Selling Units: | Single item; |
Package Preview: | https://sc02.alicdn.com/kf/HTB1.bORRkvoK1RjSZFN763xMVXak.png_640x640.png; | Power Adapter: | Output:12V(DC)/3A; |
Place of Origin: | Guangdong China; | Brand Name: | SHARERDP; |
Processor Main Frequency: | Dual Core 1.8GHz; | Key Feature3: | OEM/ODM; |
Display Type: | LCD; | Single gross weight: | 1.2 KG; |
Single package size: | 23X22X6 cm; | Type: | Barebone System; |

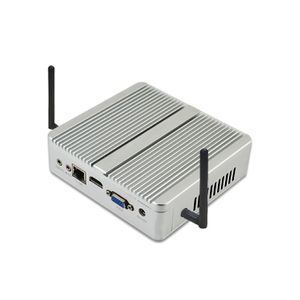

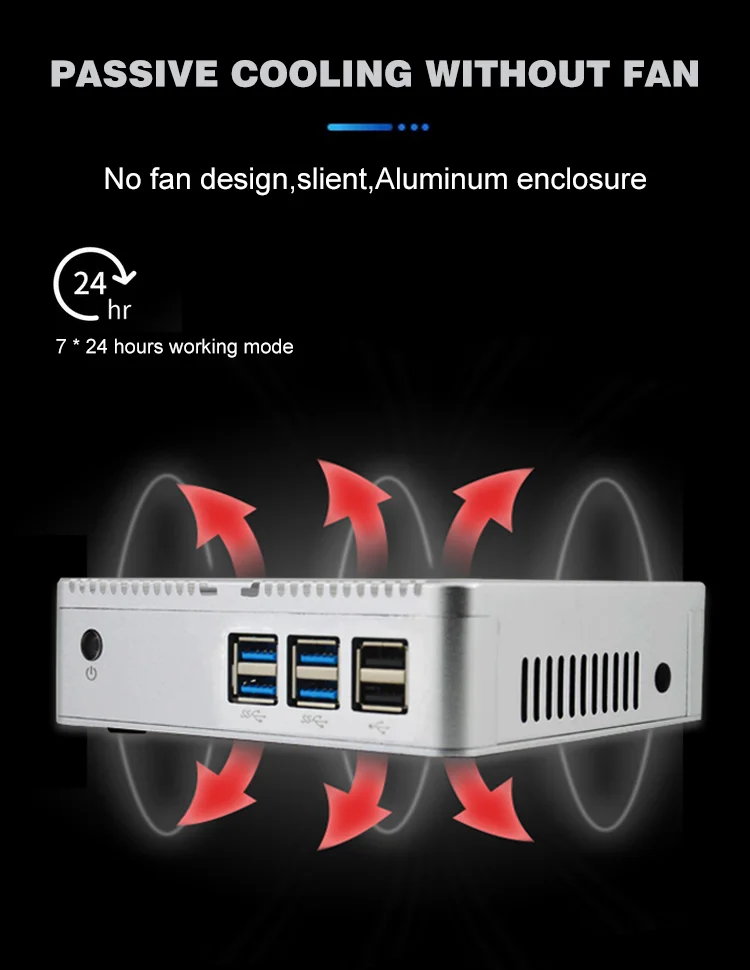

Mini PC X5500M has small size 130*135*40MM,perfect ports 4*USB3.0 2*USB2.0,saving space,very convenient to move,adopt the aluminum alloy metal shell,two colors for choosing,which looks very professional and high-end.Firm and Flexible enough.
Data sheet:
Model | X5500M | Net Weight | 580G | Warranty | 3 years | |
2.5HDD | Support | Consumption | 15W | CPU | 4200U | |
WIFI | 300M | Cores | 2 | Threads | 4 | |
CPU overview | ||||||
CPU | Core i5 2.3GHz | |||||
Cache | 3MB | |||||
Processor | Core I5 4th | |||||
RAM | DDR3L-1600 SODIMM 1.35V ,2GB RAM Max.8GB | |||||
Storage | SSD 8GB/16GB/32GB/64GB/128GB/256GB HDD: 2.5 inch HDD 500GB/1TB | |||||
Network | Onboard RTL8111E/BCM43224 100/1000Mbps | |||||
Video | Integration HD Graphics(HD4400) Graphics card fundamental frequency:200MHz Graphics card max fundamental frequency:1GHz Graphics output: EDP/DP | |||||

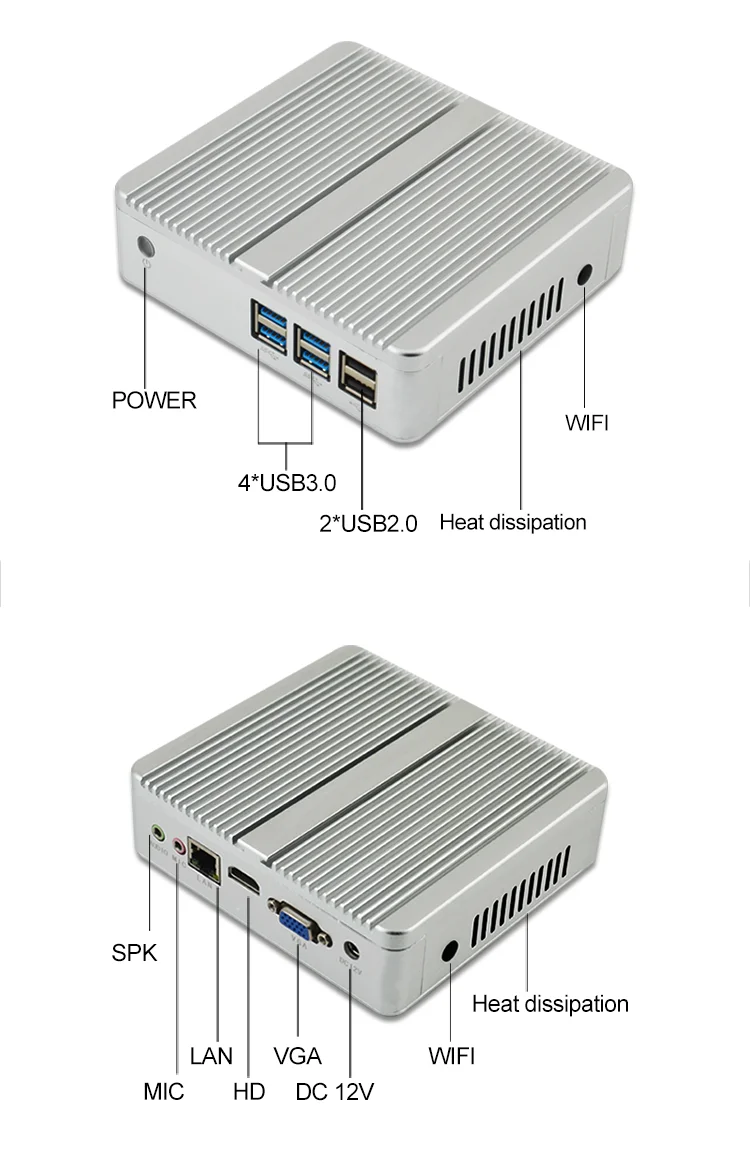

Front ports | 1*DC port 1*On/Off port 2*Audio ports 1*RJ45 port 1*VGA port | |||||
Back ports | 2*USB2.0 ports 4*USB3.0 ports 1*Switch button | |||||

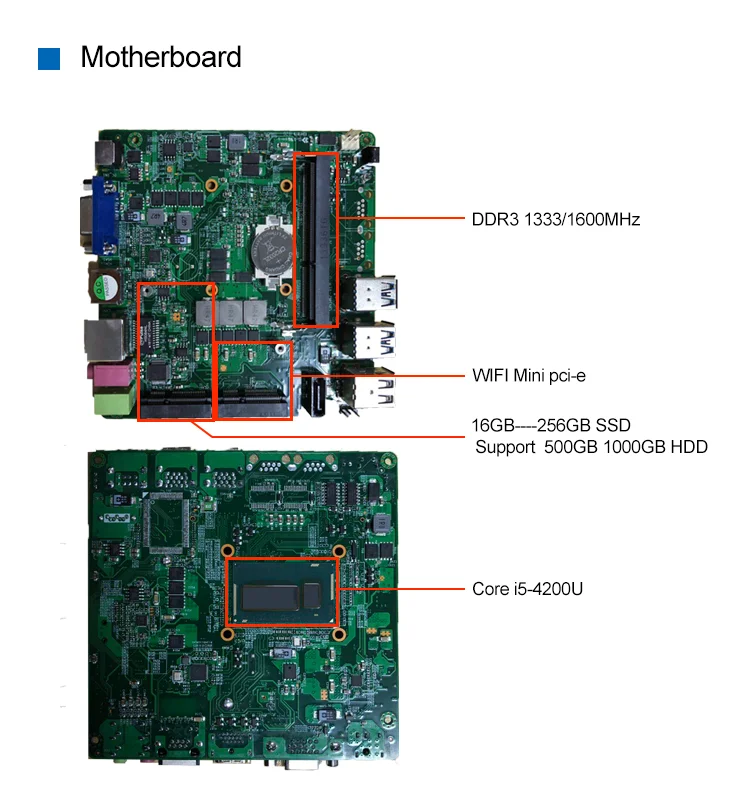

Internal ports | 1*SATA port 1*SATA HDD onboard 1*mini-PCIe port(SSD) 1*mini-PCIe port(WIFI) | |||||
Support OS | 7/8/10,and Linux Ubuntu 14.04 | |||||
Working Environment | ||||||
temperature | -20/+85 degree centigrade | |||||
64 bit computing | Support 64 bit computing |

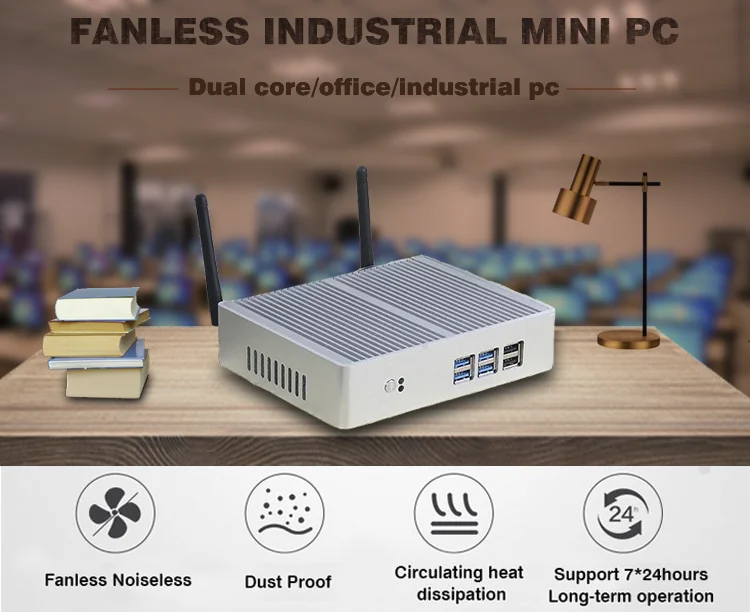

High performance
X5500M mini pc adopts i5 Core 4th 4200U dual core 2.3GHz,which has best strong office processing performance better consumption 15watts,high performance VGA chip set ,could be absolutely competent in 3D graphic design and Artistic Design.
Low consumption:
MINI PC X5500M uses brand new environmental protection and energy saving,energy consumption is the 1/6 of the traditional desktop,also the heat dissipation effect is outstanding.
Super high definition:
X5500M adopts the industry graphic processor,which has the Pure Video HD,16 core CUDA technology,it could easily set up the living room and bedroom high definition theater experience,and it will show you the HD visual exquisite.It is the best choice for visual enjoy.
Product detail:

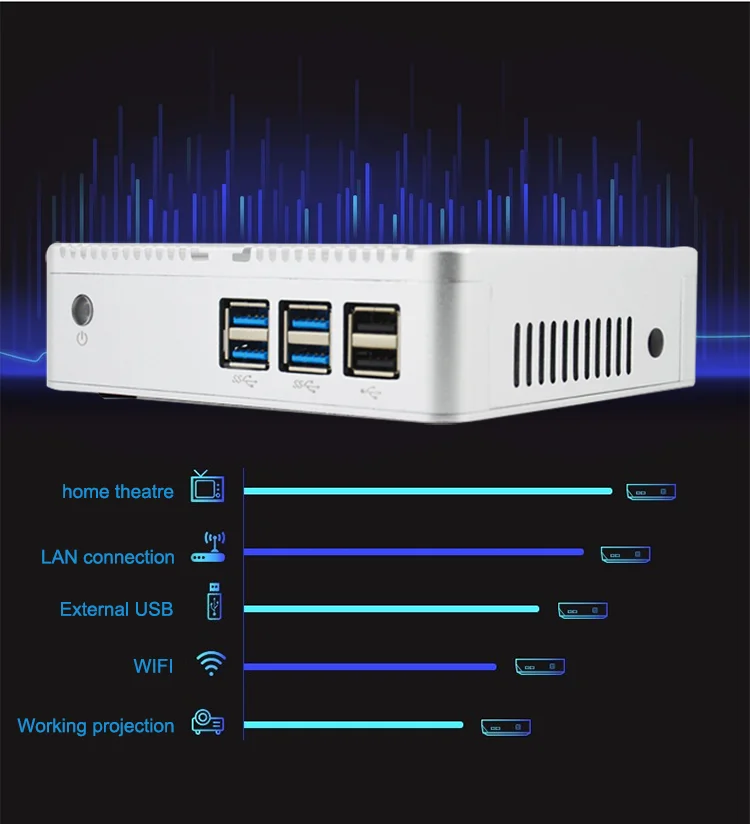

Can be used in many occasions:
Tips:
The CPU can be 4th/5th/6th generation of i3/i5/i7 ,the case can be metal,Aluminum alloy,We support OEM/ODM,if you need any other configuration,welcome to contact us.
Different Power Plug for Different Country.
ABOUT SHIPPING
1.Within 48HOURS dispatch your order.All items can be shipped by DHL,UPS,FEDEX,EMS,China Post,HK post and Singapore Post.All come with the TRACKING NUMBERS.
2.Orders will dispatch within 48 HOURS after payment cleared.
3.Important note:Items shipped by China Post,HK post and Singapore Post,reach most countries within 10 to 20 days.But to RUSSIA will takes over 30days as for LOCAL CUSTOMS CHECKING delay,if you don't receive the item after 40 days,please contact us,we'll investigate and solve the delivery problem.
A:we support OEM/ODM service.
B:The product is available for a three-year warranty.
C:Best quality and competitive price.
D:Protection of your sales area, ideas of design and all your private information.
E:We can provide a variety of logistics and transportation methods, and guarantee the fastest speed to transport to your side.
D:Your inquiry related to our products or prices will be replied in 24 hours.
Shenzhen Share Technology Co.,Ltd was established in 2006, located in ShenZhen city of China.Being an important member of Cloud Computing Association.

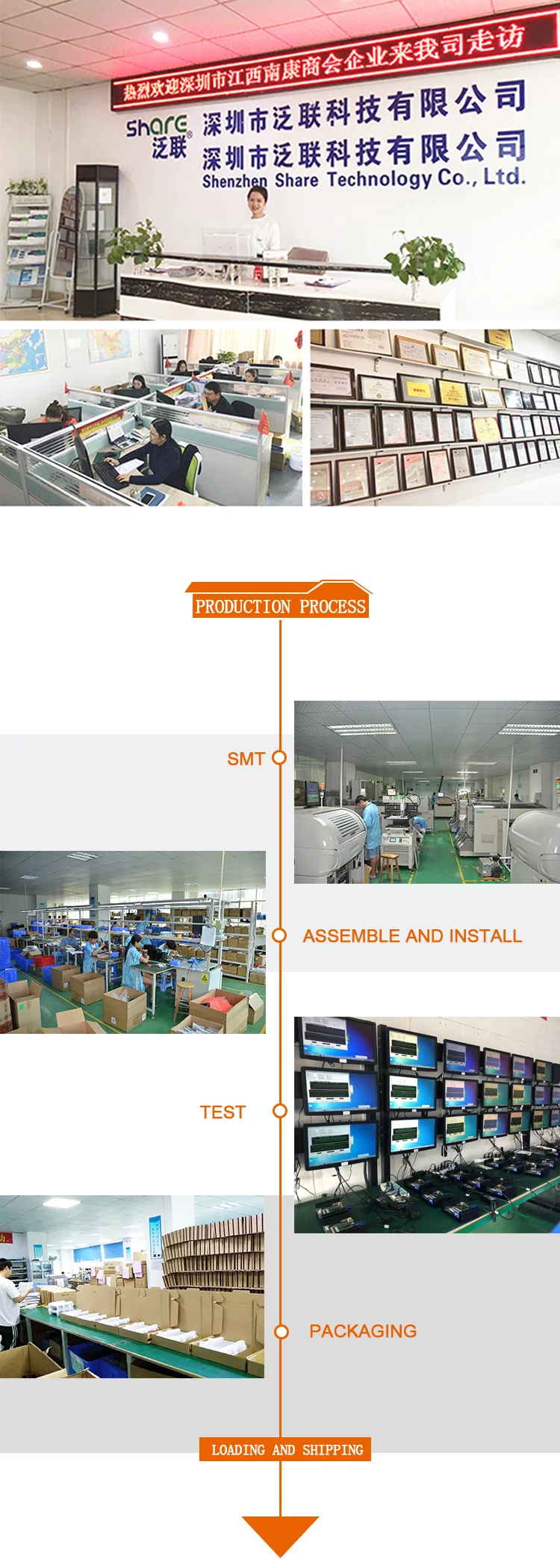

Now Share has an ownedautomatic production line, it contains SMT machine which
specialized in production of cloud computer, assembly & testing workshop.
After 11 years of continuous development and innovation, now three main product line are ARM cloud terminal, MINI PC & All In One PC with low power consumption,
all achieves a number of patents and leading-edge technology in current market.
Share Technology offers professionally different industry solutions, such as cloud terminal embedded educational software,hotel software,and customized cloud terminal for
Call centers and enterprises, dedicated SOP terminal for production line, etc.
Share Technology offers client hardware ODM & OEM for all domestic and international IT factory or companies which are specialized in professional development of virtualization.
1.Q:Can you put my brand name (logo) on these products?
A:Yes, We can support OEM/ODM service, Over 50 units can support printinf logo for you, over 100units can support Customized shell and packing box,the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: you confirm the design draft.
4. We start produce it.
2.Q: How much do I need to pay for your OEM service?
A: You should pay extra fee,but we will return the fee to you when your order over 100 pieces.
3.Q: What payment method do you accept?
A: T/T, Western Union, PayPal and so on.
4.Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
5.Q: What is the lead time of your products?
A: 3-7 days for sample, 15 working days for a large quantity.
6.Q:Do you have FCC,CE,ROSH Certificates?
A:yes,we have all of them.
7.Q:Do you have aftersales services?
A:Yes,we can provide after -sales services, once you have any questions, you can consult with our software and hardware engineers.
8.Q:What is your warranty?
A:All of our devices warranty is for 3 years.
9.Q:What is your MOQ?
A:MOQ=1 piece
10.Q:Are you manufacture?
A: yes, we are manufacture and our factory located in Shenzhen Pingshan District.
