plasticine for sale 500l play z blade extruder double arm heating chemical vacuum dough kneading machine lab mixer kneader machi

Product details
Condition:new;Place of Origin:Guangdong China;
Certification:SGE;Discharge mode:Hydraulic tilting, bottome pumping, screwing;
Brand Name:JCT;Motor type:Anti-explosion;
Speed conctrol:Inverter for frequency control;Machine type:z blade extruder double arm heating chemical lab mixer kneader machine;
Blades material:Stainless steel;After-sales Service Provided:Field maintenance and repair service;
Supply Ability:80 Set/Sets per Year kneader machine;Weight:200kg to 7000kg;
Paddle speed:28/42 rmp;name:kneader machine;
Voltage:110v-440v;Dimension(L*W*H):0.8 *0.5 *1m -1.6 *1 *2.5m;
Warranty:1 Year;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;
Model Number:NHZ;Paddles:SS304 sigma blades;
Vacuum degree:-0.098MPa;Year:customize;
Port:Shenzhen, Guangzhou, Foshan;Packaging Detail:plasticine for sale 500l play z blade extruder double arm heating chemical vacuum dough kneading machine lab mixer kneader machine :: Wooden case, container.;
Power(W):0.75KW-150KW;Main products:Silicone sealant, silicone rubber;

 plasticine for sale 500l play z blade extruder double arm heating chemical vacuum dough kneading machine lab mixer kneader machi

1.

1). China Foshan JCT Machinery Co., Ltd.



2). A professional chemical machinery manufacturer.



3). Specialize in reaction vessels, kneading machine, dispersion mixers, planetary mixers, powder mixers, high speed dispersers.



4). Set up at 2005, now with a 50-technician, 10-senior-engineers and 2-specialists designing & manufacturing team, and 15-sales team.



5). Main markets: Chian, Europe, Africa, South America and South Asia.

mixing machine



2.

1). Kneading machine does very well in mixing, kneading, crushing and dispersing for high-viscosity liquid materials, with no dead point.



2). Two sigma or Z-type blades.



3). Equipped with inverter for frequency control.



4). Vacuum and high pressure are available.



5). The cylinder is opened hydraulically.



6). Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing.



7). With jacket outside of the cylinder, for heating or cooling.



8). Heating mode: Hot oil, Electric or Steam.



9). All the parts that contact with material are made of stainless steel.

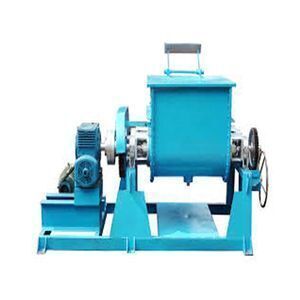

 Jaceted Heating Vacuum Kneading Machine (NHZ-600)

3.



Model



Chamber Volum(L)

Drive motor power

(KW)

Mixing Speed (rpm)

 Discharge mode

 Heating

Full volume

Feeding amount

Paddle fast / slow paddle

 Optional parametersOptional parameters

NHZ-5

5

3

2.2-4

75/50

Manual / Hydraulic tilting

Running Hot

oil

Electrical heating

Pressure Steam

NHZ-20

20

12

3-5.5

63/42

NHZ-50

50

30

4-7.5

63/42

NHZ-100

100

60

5.5-7.5

43/29

NHZ-200

200

120

7.5-15

43/29

Hydraulic tilting

The bottom pumping

Screw extruding

NHZ-300

300

180

11-18.5

43/29

NHZ-500

500

300

18.5-30

43/29

NHZ-1000

1000

600

22-55

32/22

NHZ-1500

1500

900

30-90

32/22

NHZ-2000

2000

1200

45-110

32/22

NHZ-3000

3000

1800

55-130

33/22

Remarks:

1,Temperature range: 0-300°,

2, Pressure range:-0.1-0.6MPa,

3,Inverter for frequency control if necessory.





4.

Chewing gum base kneading, rubber base kneading, DOW Corning, sealant,Silicone sealant, adhesive, ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc. Vacuum kneading machines.

  JCT Jacketed Heating Vacuum Kneading Machine (NHZ-600)



5.







The 600L vacuum kneading machine - 1



The 600L vacuum kneading machine - 2



6.





7.





8. Why choose us?

1). Profession:

We have focused on this area for over 10 years, and the boss of JCT is a professional engineer who has 20 years' experience in what we are concentrating on!



2). Powerful team:

A 5-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT big team.



3). Achievement:

JCT was set up at 2004, through about 10 years' endeavor, our products has been sold to most important industrial district in China, such as Guangdong, Shangdong, Jiangsu, Zhejiang, Fujian and so on. And we have edged ourselves into the top 5 in China.

From 2009, JCT started the international marketing. Now, we have set our feet in North America, Europe, South Aria, Africa etc.

9.
