Factory Price XN55 Rubber Kneader Mixer and Kneader Rubber Kneader

Product details
Main selling point:high productivitybrand:Hengsen
Dimensions (L*W*H):3280mm*2120mm*3090mmSupply capacity:50 sets per month
Machine Color:blue/green/as your requestport:Qingdao
Core components:PLC, motor, gearTilt angle (°):45
Unloading method:through the motorpayment terms:Western Union,L/C,D/P,D/A,T/T,MoneyGram
Voltage:custom madePackaging Details:standard packaging
Production capacity:80-100kg per batchMarketing Type:Hot Products of 2021
Health status:newplace of origin; place of origin:Shandong China
Power (kW):75 kWWarranty:1 year
model:X(S)N55year:2021
Core Components Warranty:2 yearsShowroom location:Sri Lanka, South Africa, Ukraine, Uzbekistan, Canada, Vietnam, Brazil, Indonesia, India, Mexico, Russia, Thailand
Video external inspection:ifAfter Warranty Service:Video technical support, online support, spare parts,
Compressed air pressure (MPa):0.8 MPaPackaging Preview:
Motor Type:Carbide weldingType of machine:Rubber kneader
Weight (kg):10000kgMechanical test report:if
Feeding method:frontStirring capacity (L):125 liters
Applicable industries:farm, rubber machine
Equipment application and operation requirements

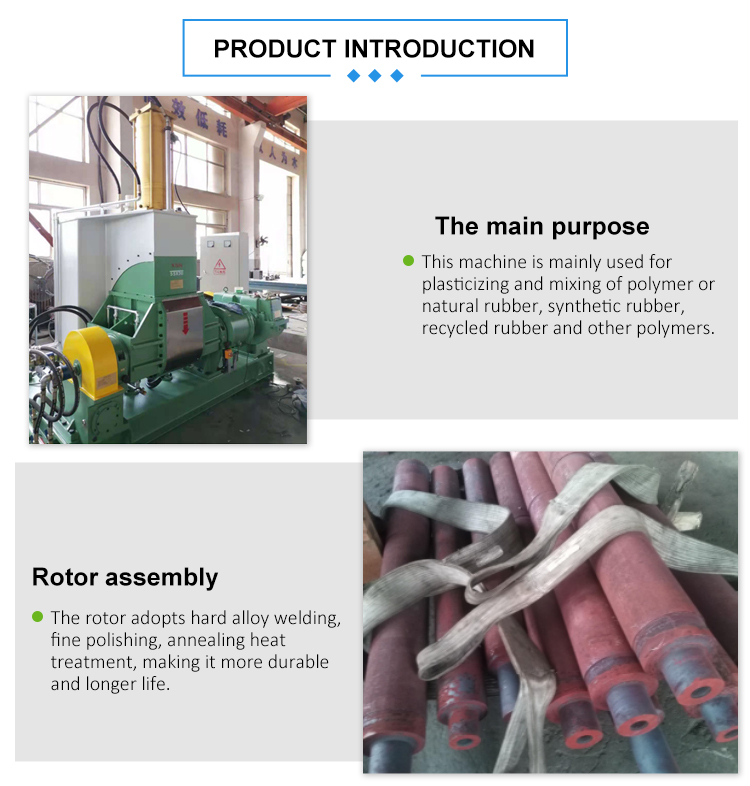

Main application: This machine is mainly used for plasticizing and mixing of polymers or natural rubber, synthetic rubber, regenerated rubber, and other polymers.
Operational Requirements
A. Operating environment: altitude <1000m,
Temperature: 5℃-40℃, max. Relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
Model
X(S)N35
X(S)N55
X(S)N75
X(S)N110
Total volume of mixing chamber (L)
75
125
180

250
Mixing chamber working volume (L)
35
55
75
110
Drive motor power (KW)
55
75
110
185
Tilt motor power (KW)
5.5
5.5
5.5
7.5
slope
110
110
110
110
Rotor speed (front/rear) (r/min)
36/30
36/30
36/30
30/24.5
Compressed air pressure (Mpa)
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
Cooling water pressure (Mpa)
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
Dimensions (L*W*H) (mm)
3150*1900*2880
3280*2120*3090
3280*2220*3250
4070*2712*3580
