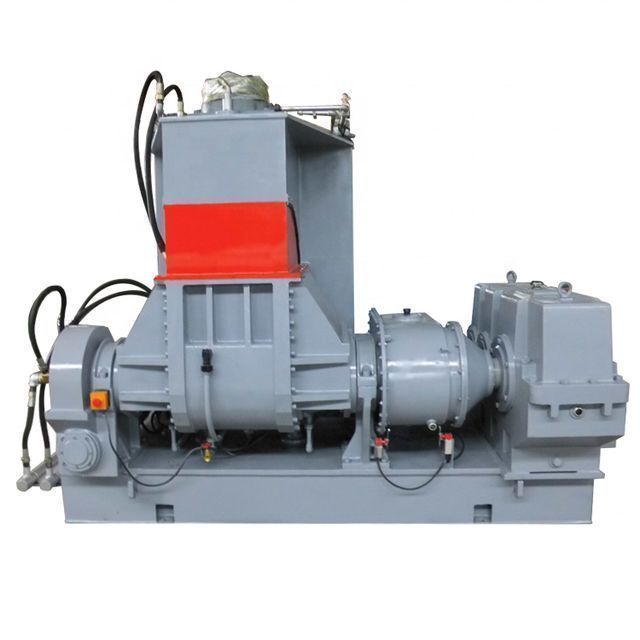

75L Rubber Kneader

Supplier: Qingdao Huicai Machine Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms SUNNY YIN
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	Open mill	Stirring capacity (L):	75 liters
After-sales service provided:	Engineers can repair machinery overseas	Supply capacity:	20 sets per month
Name:	Rubber Kneader/Banbury Mixer	Voltage:	220V, 380V, 440V
Applicable industries:	manufacturing plant	usage:	Rubber compounding
Health status:	new, new	Local service location:	Sri Lanka
brand:	Hui Cai	Showroom location:	Sri Lanka
Weight (kg):	10300kg	capacity:	75L
Compressed air pressure (MPa):	0.5 MPa	year:	2018
model:	X(S)N-75	port:	Qingdao
Dimensions (LWH):	376021433155mm	Card:	Hui Cai
port:	Qingdao	Feeding method:	back
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	color:	blue-green
Main selling point:	competitive price	place of origin; place of origin:	Shandong China
Packaging Details:	Plastic film or plywood enclosure	payment terms:	L/C,D/P,T/T
Warranty:	1 year	Power (kW):	110kW
Certification:	CE and ISO9001, ISO 9001/CE

Product Description

tilting mixer

drop mixer

Kneader/Internal mixer parameters

product name	Rubber mixer
Model	X(S)N-75x30
motor	110kW
capacity	75L
Compressed air flow	0.5-0.8
cooling water pressure	0.2-0.4
hot steam pressure	0.5-0.8
weight	10300kg

Workflow Operation Introduction

Specification

1.. Four-axis headseal, Adopt YG8 cemented carbide mosaic new technology, no leakage of powder or glue.

2. The mixing chamber adopts 20# boiler plate, which is processed by forging and burning.
3.. thetwo-axisIt is made of high-quality steel 42 Cr Mo (Grom) forging and heat treatment.

4. Therotor shaftSpindle Weld D632 Carbide Rod Welding.

5. The two rotor shaft bolts and the stirring chamber are polished and plated with hard chrome for 0.15-20m, which is not only anti-corrosion, anti-rust, but also wear-resistant.

6. The two rotor shafts, mixing chamber, top bolt, gearbox casing, etc., are polished after heat treatment furnace at a temperature of 6-700 degrees to eliminate stress, enhance toughness, and increase service life by more than 5 times.

Product display
