banbury rubber internal mixer dispersion kneader rubber kneader

Supplier: Qingdao Huicai Machine Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms SUNNY YIN
Price: $30000.00 / 1 - 1 sets
$10000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Video outbound inspection:	if	brand:	Huicai
Main selling points:	long lasting	Voltage:	According to your local needs
Package preview:		Warranty:	1 year
Certification:	ISO 9001/CE	Applicable industries:	Building material stores, manufacturing plants, food and beverage plants, construction works, energy and mining, food and beverage stores
Showroom location:	Chile, Russia, Thailand	Compressed air pressure (MPa):	0.7MPa
Packaging Details:	Use plastic film or plywood according to customer needs.	port:	Qingdao
Core component warranty:	1 year	payment terms:	L/C, T/T
Feeding method:	after, before	Dimensions (LWH):	1000400400mm
Year:	2022	Supply capacity:	Annual output of 100 rubber hydraulic presses
volume:	35-150L	Mechanical test report:	if
Origin:	Qingdao, China	Stirring capacity (L):	75 liters
Power (kW):	75 kW	application:	rubber mixing
After-sales service provided:	Video Technical Support	Material:	Stainless steel 304/316L
usage:	rubber products	Name:	banbury mixer
Weight (kg):	7500 kg	type:	Rubber kneader
brand:	Huicai	Core components:	PLC, engine, pressure vessel, gear, pump
Motor type:	Hard alloy welding	Tilt Angle(°):	140
Health status:	new

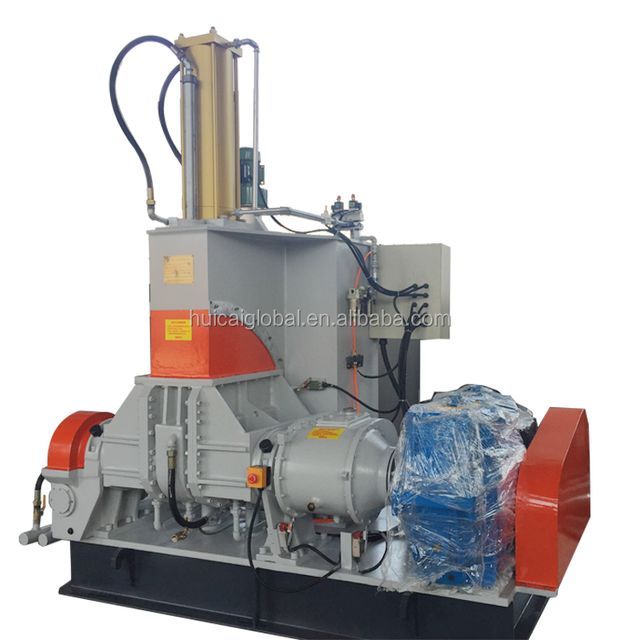

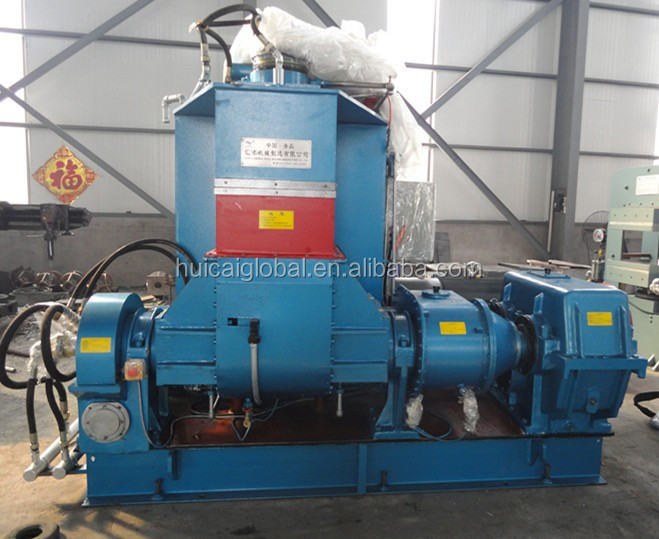

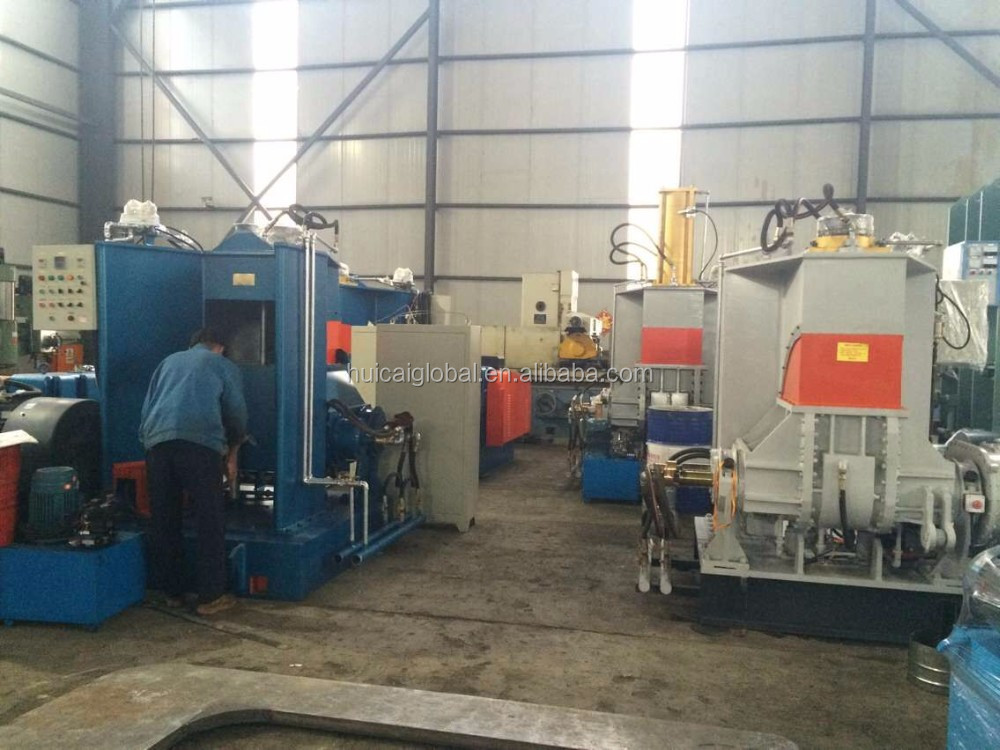

machine display

X(S)N-3*32/10*32/20*32/35*30/55*30/75*30/110*30/150*30

Can be customized according to your requirements

type	X(S)N-3*32	X(S)N-10*32	X(S)N-20*32	X(S)N-35*30	X(S)N-55*30	X(S)N-75*30	X(S)N-110*30	X(S)N-150*30
Total volume of mixing chamber	8	25	45	75	125	180	250	325
Mixing chamber working volume	3	10	20	35	55	75	110	150
Drive motor power	5.5 kW	15 kW	30 kW	55 kW	75 kW	110 kW	185 kW	220 kW
Tipper motor power	0.55 kW	1.1 kW	1.5KW	2.2 kW	2.2 kW	4.0 kW	4.0 kW	5.5 kW
tipping angle	135	140	140	140	140	140	140	140
Rotor speed	32/24.5	32/25	32/27	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Compressed air working pressure	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
compressed air flow	≥0.3 cubic meters/meter	≥0.5 cubic meters/meter	≥0.7 cubic meters/meter	≥0.9 cubic meters/meter	≥1.0 cubic meter/meter	≥1.0 cubic meter/meter	≥1.5 cubic meters/meter	≥1.5 cubic meters/meter
cooling water pressure	0.2-0.4Mpa	0.2-0.4Mpa	0.2-0.4Mpa	0.3-0.4Mpa	0.3-0.4Mpa	0.2-0.4Mpa	0.2-0.4Mpa	0.2-0.4Mpa
heating steam pressure	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
total measurement	16609601750mm	258013002280mm	263015202550mm	320019002945mm	336019503050mm	376021433155mm	407527123580mm	420032004000mm
weight	2000 kg	3300 kg	4000 kg	6300 kg	7500 kg	10300KG	14500 kg	19500KG
