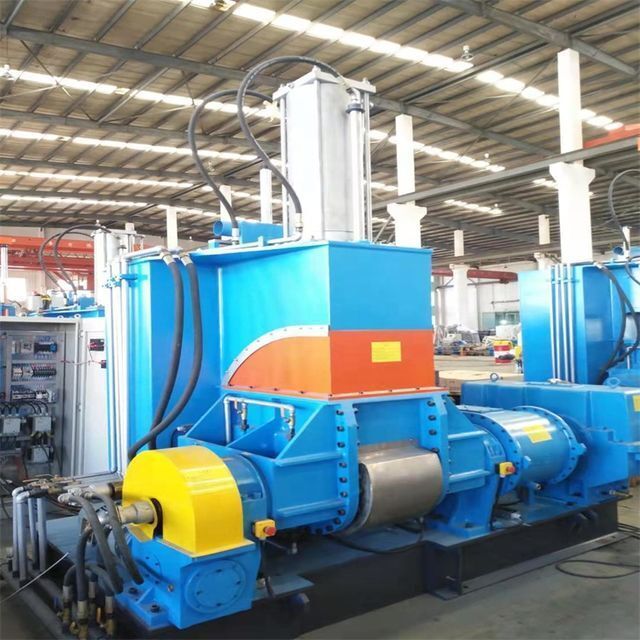

Manufacturer Custom High Quality Dispersion Kneader rubber kneader machine

Supplier: Qingdao Hangsen Industry And Trade Co., Ltd.
Region: Shandong, China
Contact: Ms suzen xue
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Farms,rubber machine;	Machine type:	rubber kneader machine;
Marketing Type:	hot product 2021;	Motor type:	Hard alloy welding;
Condition:	New;	Compressed Air Pressure(MPa):	0.8 MPa;
Package Preview:	;	Core Components:	PLC,Motor,Gear;
Power (kW):	110 kW;	Weight (KG):	10000 KG;
Payment Terms:	Western Union,L/C,D/P,D/A,T/T,MoneyGram;	Warranty:	1 years;
Production capacity:	80-100kg per batch;	Packaging Detail:	standard packing;
Machine color:	blue/ green/ as your requested;	Warranty of core components:	2 years;
Port:	Qingdao;	Discharging way:	by motor;
After warranty service:	video technical support, online support, spare parts,;	Place of Origin:	Shandong, China;
Feeding Mode:	Front;	Brand Name:	HangSen;
Showroom Location:	Sri Lanka,South Africa,Ukraine,Uzbekistan,Canada,Viet Nam,Brazil,Indonesia,India,Mexico,Russia,Thailand;	Year:	2021;
Mixing Capacity(L):	75 L;	Supply Ability:	50 Sets per Month;
Machinery Test Report:	Provided;	Tilting Angle(°):	45;
Voltage:	customized;	Video outgoing-inspection:	Provided;
Dimension(LWH):	3280mm2220mm3250mm;	Model Number:	X(S)N-75x30;
Key Selling Points:	High Productivity;

Equipment application and operation requirements

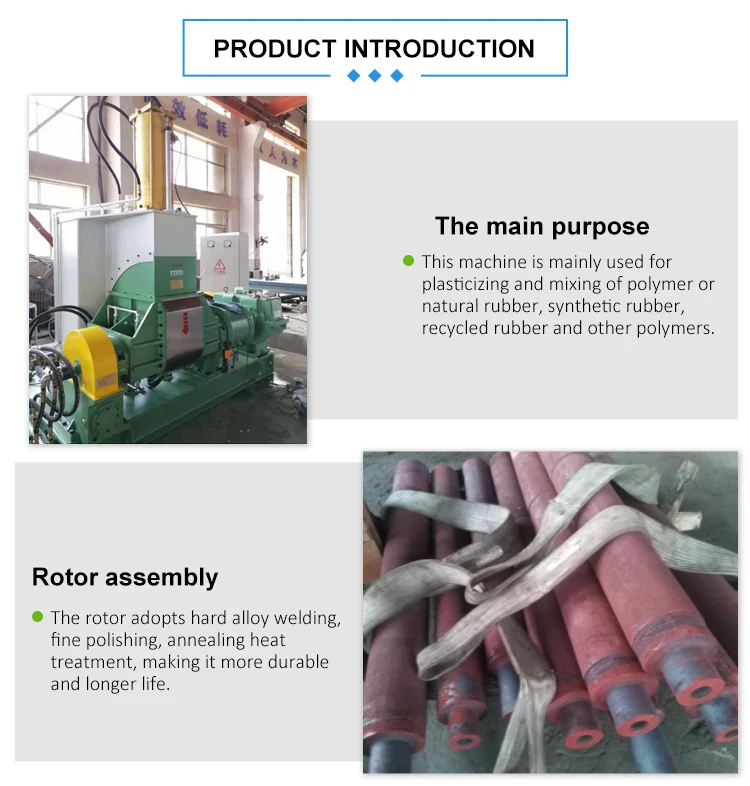

Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements

A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min

Model	X(S)N35	X(S)N55	X(S)N75	X(S)N110
Total volume of mixing chamber (L)	75	125	180	250
Working volume of mixing chamber (L)	35	55	75	110
Driving motor power (KW)	55	75	110	185
Tilting motor power (KW)	5.5	5.5	5.5	7.5
Tilting angle	110	110	110	110
Rotational speed of the rotor ( front/rear) (r/min)	36/30	36/30	36/30	30/24.5
Pressure of compressed air (Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure (Mpa)	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
*Size (LWH) (mm)*	315019002880	328021203090	328022203250	407027123580
