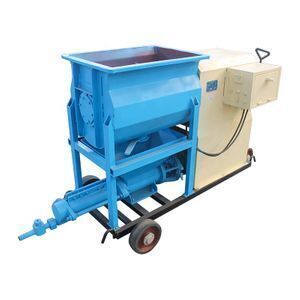

high pressure cement mortar grout injection pump with mixer

Product details
Package Type:plywood case suitable for shipment delivery Worm Screw Cement Grout Injection Pump with Mixer SJB Series High Pressure Mortar Pump for Sale ISO9001;Delivery Detail:0 days after payment;
Dimension(L*W*H):1955*550*1300mm;Certification:ISO9001;
Power Type:Electric;Single package size:2100X650X950 cm;
Selling Units:Single item;Max.Aggregate Dia.:<=2mm;
Outlet Capacity:2000-4500 L/H;After-sales Service Provided:Video technical support,Online support;
Feeding height:880-1200mm;Water Cement Ratio:>=0.3;
Working pressure:0.3-0.6Mpa;Weight:250-750kg;
Warranty:1 Year;Vertical Conveying Reach:20m;
Grouting pressure:2Mpa;Single gross weight:400 KG;
Air consumption:>=3m3/min;Product Name:Cement Grout Injection Pump;
Condition:New;Brand Name:TXSL;
Horizontal Conveying Reach:40m;Place of Origin:Henan China (Mainland);

high pressure cement mortar grout injection pump with mixer

Product Features

Grout pump

Main Features of

high pressure cement mortar grout injection pump with mixer

:
1, Compact structure and reliable performance.
2, SJBⅠ has the function of mixing, mixing and grouting can be completed synchronously by one machine .
3, Large range of water cement ratio: it is especially adaptable to mortar in high concentration.
4, Continuous grouting avoids instantaneous high pulsation produced by pumping work.
5, Grouting pressure will be released when getting setting pressure.
5, Equipped with air compressor and spray gun, it can be used for spraying protection of interior and exterior walls, building surface of civil engineering.

Product Show

high pressure cement mortar grout injection pump with mixer

is widely used for pressure grouting, including anchor grouting, backfill grouting, consolidation grouting in highway, railway, tunnel, subway, hydropower station, underground chambers, dam, slope, soft rock. In addition, it can also be applied in spraying protection of interior and exterior walls, building surface of civil engineering.

                                              grout pump without mixing function

                   grout pump without mixing function

Product Parameters

Model
SJB-20 I
SJB-20B II
SJB-50 I
SJB-50 BII
Grouting Capacity(l/h)
2000
2000
4200
4500
Main Motor Power(kw)
4
5.5
7.5
15
Mixing Motor Power (kw)

4

4
Grain size (mm)
2
2
2
2
Water Cement Ratio (w/c)
   0.3
0.3
0.3
0.3
Grout Pressure (MPa)
2
2
2
4
Mixing Volume (l)
-
160

160
Feeding Height (mm)
830
1300
880
1200
Dimension (mm)
1955x550x830
1955x600x1300
1670x600x880
2285x722x1200
Working Air Pressure (Mpa)
0.3-0.6
0.3-0.6
0.3-0.6
0.3-0.6
Air Consumption ( m³/min)
3
8
8



Product Details



       Pressurized Screw SJB20                Mixing Mechanism                           Hopper and Screen

  Continuous grouting is available without            Materials with high viscosity can be grouted.

  excessive instantaneous pulse pressure.

    Pressurized Screw SJB50                     Screw Pusher                                  Pressure Meter

                                                                 made of alloy material,                          stable performance,

                                                                         high wear resistance                                high precision

Product Application

Grout Pump is widely used for pressure grouting, including anchor grouting, backfill grouting, consolidation grouting

  • highway, railway, tunnel, subway, hydropower station, underground chambers, dam, slope, soft rock.
  • In addition, it can also be used as a mortar/cement spraying machine with an air compressor to spray interior and exterior walls, building surface in civil engineering.

         HIGHWAY                            RAILWAY               HYDROPOWER SATION            TUNNEL

Workshop Images

Because we are factory

Our quality and service will be better;

We have spare parts that dealers cannot provide;

We repair machines that retailers cannot repair;

We accept suggestions from customers and provide customized service.
