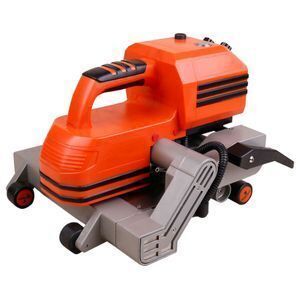

After-sales Service Provided automatic geomembrane pvc fabric hdpe liner welding machine

Supplier: Henan Weibang Intelligent Technology Co., Ltd.
Region: Henan, China
Contact: Mr Weibang J.
Price: $495.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weld strength:	>=85;	Warranty:	1 Year;
Voltage:	220v+-15%v;	Usage:	PVC Welding;
Welding materials thickness:	0.-2mm;	Place of Origin:	Henan China (Mainland);
Frequency:	50-60HZ;	Single gross weight:	10 KG;
Weld width:	(10-20)*2mm adjustable,interior cavity 12;	Power:	4000w;
Package Type:	Plywood pellet or Cases suitable for long-distance shipment Factory price After-sales Service Provided automatic geomembrane pvc fabric hdpe liner welding machine;	Selling Units:	Single item;
Heating temperature:	0-450degree;	Product Name:	PVC/PP/EVA/HDPE Geomembrane Welding Machine;
Max.current:	< 4 A(500C 7A);	Welding dia.:	20-90mm;
Working temperature:	25-45degree;	Weight:	7kg;
Brand Name:	TXSL-BESITIGER;	Welding Area:	20-90mm;
After-sales Service Provided:	No after-sales service,Online support;	Suitable materials:	HDPE,LDPE,EVA,PVC,PP etc.tunnel waterproof plates;
Dimensions:	307260125mm;	Materials seam welding landing:	100-200mm;
Delivery Detail:	0 days after payment;	Applicable Industries:	Construction works ;
Single package size:	40X35X35 cm;

After-sales Service Provided automatic geomembrane pvc fabric hdpe liner welding machine

Product Features

Main Features of After-sales Service Provided automatic geomembrane pvc fabric hdpe liner welding machine:
1, Large welding power, fast welding speed, and good welding effect
2, This machine has stable performance, convenient operation, high welding efficiency and reliability
3, Widely used in tunnel, subway, water conservancy, breeding, landfills, chemical mining, sewage treatment, roof building and other water-proof and anti-seepage projects.

Product Parameters

Model	HH-610	HH-615	HH-620
Voltage	220V or 110V
Frequency	50/60HZ
Power(w)	800	800	1000
Drive Speed(m/min)	0-5.5m/min(adjustable)	0-5.5m/min(adjustable)	0-5.5m/min(adjustable)
Heating Temperature (°C)	0-450(adjustable)	0-450(adjustable)	0-450(adjustable)
Thickness of Welding Material(mm)	0.2-2.0	0.2-2.0	0.2-2.0
Overlap Width(mm)	80-160	80-160	100-200
Welding Width(mm)	*10-15mm2 , interior cavity 12mm**
Seam Strength(%)	≥85% base material (tensile resistant in shear direction)
Weight(kg)	5.0	5.0	5.3

Product Details

Control System Pressure Regulation

The advanced control system with imported components and

has a long service life.

Speed control and temperature control

Heating System Knurling Steel Roller

Specially designed alloy bars with high power heating pipes Special knurling steel roller, anti-skid and anti-wear

(550w,800w) for welding 0.2-2.0mm thickness

provide faster heating, higher efficiency and longer service life

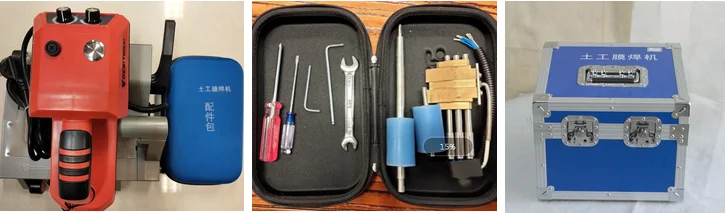

Product Show

Click here to get a special offer and discout!!!

Product Application

Application of After-sales Service Provided automatic geomembrane pvc fabric hdpe liner welding machine:

It is suitable for welding HDPE, LDPE, EVA, PVC, ECB, PP and other thermo plastic materials, which are widely used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on.
