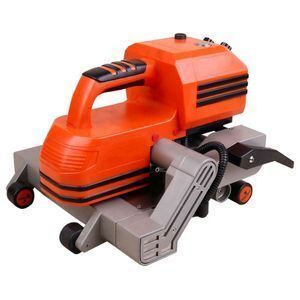

PVC/PP/EVA/HDPE Geomembrane Welding Machine HH-620 Plastic Welder Welding Machines

Supplier: Henan Weibang Intelligent Technology Co., Ltd.
Region: Henan, China
Contact: Mr Weibang J.
Price: $486.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Max.current:	< 4 A(500C 7A);
Heating temperature:	0-450degree;	Welding Area:	20-90mm;
Welding materials thickness:	0.-2mm;	Selling Units:	Single item;
Single package size:	40X35X35 cm;	Brand Name:	TXSL-BESITIGER;
Place of Origin:	Henan China;	Package Type:	Plywood pellet or Cases suitable for long-distance shipment Factory price PVC/PP/EVA/HDPE Geomembrane Welding Machine HH-620 Plastic Welder Welding Machines;
After-sales Service Provided:	No after-sales service,Online support;	Power:	4000w;
Working temperature:	25-45degree;	Product Name:	PVC/PP/EVA/HDPE Geomembrane Welding Machine;
Dimensions:	307260125mm;	Applicable Industries:	Construction works ;
Frequency:	50-60HZ;	Weld width:	(10-20)*2mm adjustable,interior cavity 12;
Materials seam welding landing:	100-200mm;	Weight:	7kg;
Welding dia.:	20-90mm;	Usage:	PVC Welding;
Suitable materials:	HDPE,LDPE,EVA,PVC,PP etc.tunnel waterproof plates;	Single gross weight:	10 KG;
Weld strength:	>=85;	Voltage:	220v+-15%v;

Product Description

PVC/PP/EVA/HDPE Geomembrane Welding Machine HH-620 Plastic Welder High Frequency Welding Machines

Application of PVC/PP/EVA/HDPE Geomembrane Welding Machine HH-620 Plastic Welder High Frequency Welding Machines:

It is suitable for welding HDPE, LDPE, EVA, PVC, ECB, PP and other thermo plastic materials, which are widely used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on.

Main Features of PVC/PP/EVA/HDPE Geomembrane Welding Machine HH-620 Plastic Welder High Frequency Welding Machines:
1, Large welding power, fast welding speed, and good welding effect
2, This machine has stable performance, convenient operation, high welding efficiency and reliability
3, Widely used in tunnel, subway, water conservancy, breeding, landfills, chemical mining, sewage treatment, roof building and other water-proof and anti-seepage projects.

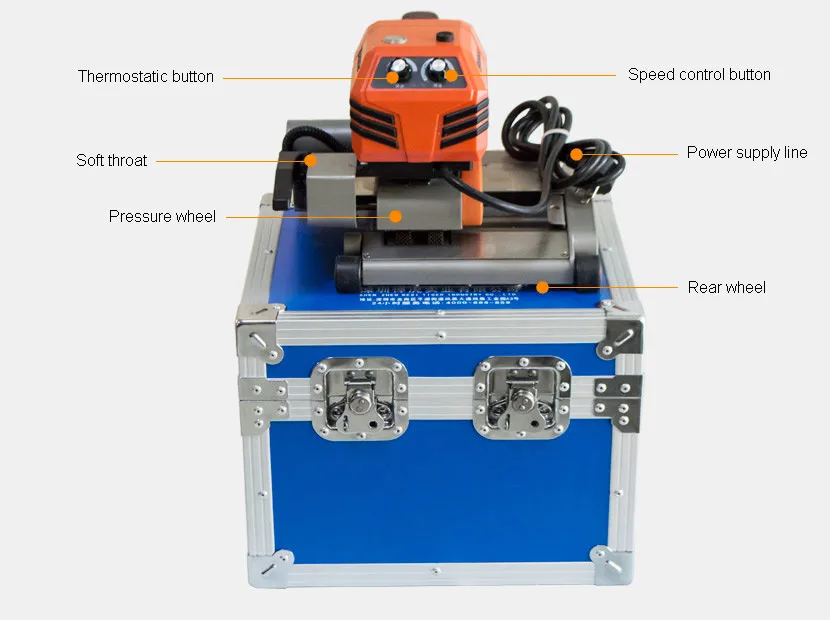

Control System

The advanced control system with imported components and has a long service life.

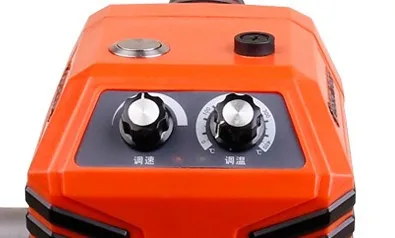

Speed control and temperature control

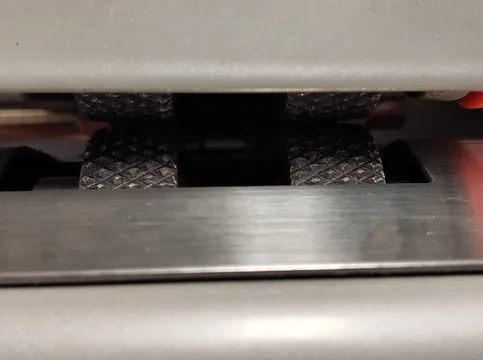

Knurling Steel Roller

Special knurling steel roller, anti-skid and anti-wear, for welding 0.2-2.0mm thickness

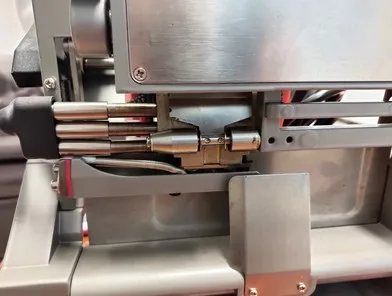

Heating System

Specially designed alloy bars with high power heating pipes (550w,800w) provide faster heating, higher efficiency and longer service life

Technical Parameters of PVC/PP/EVA/HDPE Geomembrane Welding Machine HH-620 Plastic Welder High Frequency Welding Machines:

Model	HH-610	HH-615	HH-620
Voltage	220V or 110V
Frequency	50/60HZ
Power(w)	800	800	1000
Drive Speed(m/min)	0-5.5m/min(adjustable)	0-5.5m/min(adjustable)	0-5.5m/min(adjustable)
Heating Temperature (°C)	0-450(adjustable)	0-450(adjustable)	0-450(adjustable)
Thickness of Welding Material(mm)	0.2-2.0	0.2-2.0	0.2-2.0
Overlap Width(mm)	80-160	80-160	100-200
Welding Width(mm)	10-15mm*2 , interior cavity 12mm
Seam Strength(%)	≥85% base material (tensile resistant in shear direction)
Weight(kg)	5.0	5.0	5.3

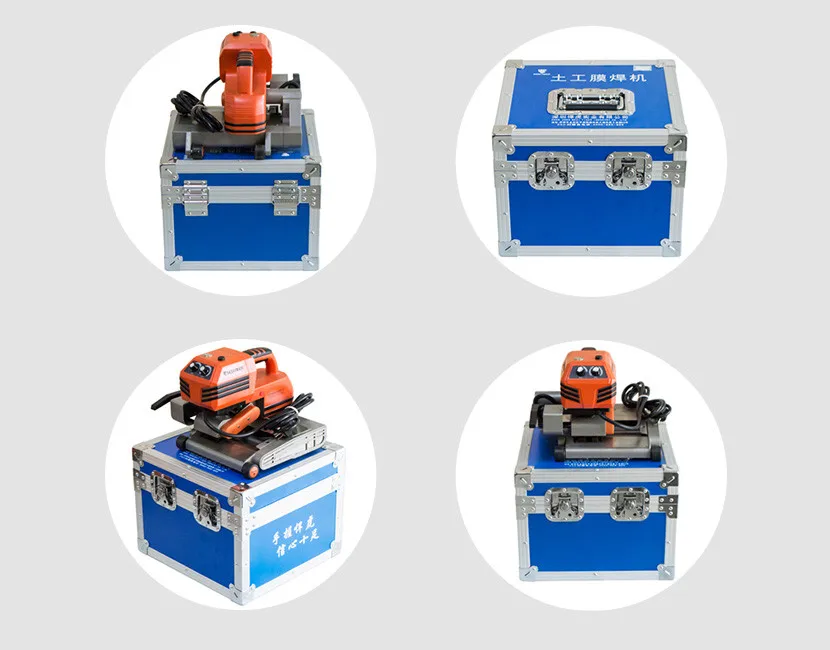

Packing

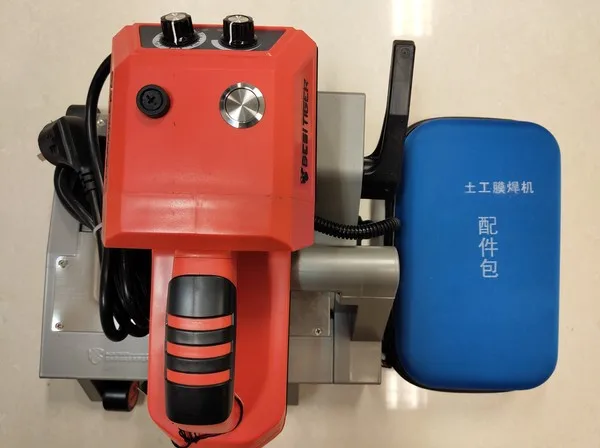

Geomembrane welding machine with a toolkit

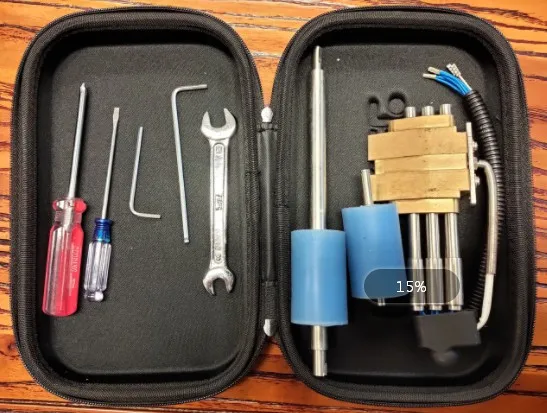

A set of tools

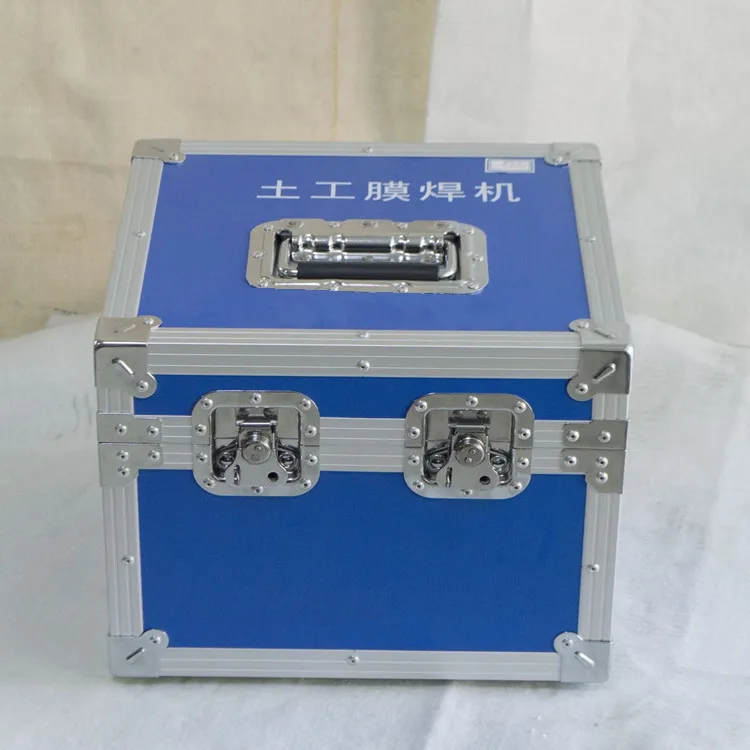

Aluminium Box

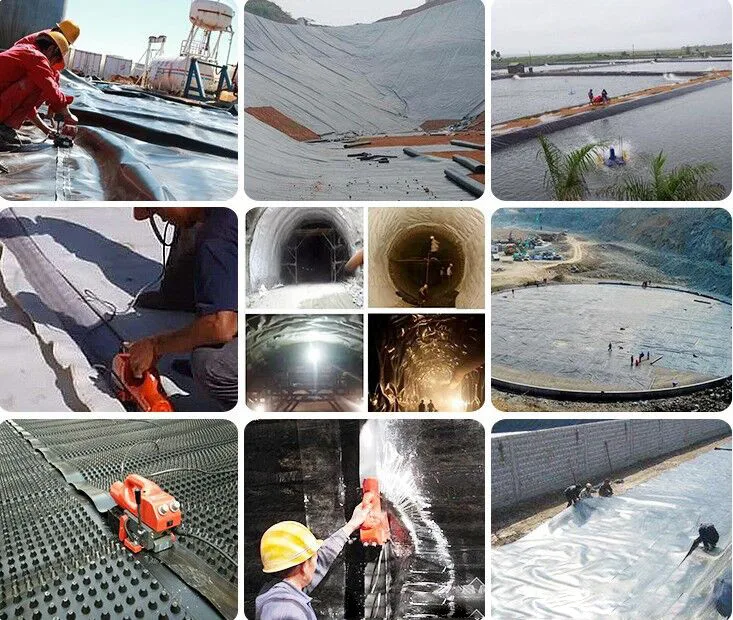

Job Site Images

waterproof projects such as railway, tunnel, subway, construction, reservoir, artificial lake, aquaculture, swimming pool and landfill.
Suitable for welding of PE, PVC, HDPE, LDPE, EVA, EECBE, PP, etc

Plant

We are manufacturer.
We provide you factory price Geomembrane Welding Machine.
We have all kinds of models of Geomembrane Welding Machine for our customers to chose.
