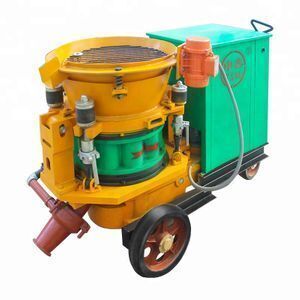

PZ5 lightweight shotcrete pump dry shotcrete machine for sale

Supplier: Henan Weibang Intelligent Technology Co., Ltd.
Region: Henan, China
Contact: Mr Weibang J.
Price: $1970.00 /set
Min. Order: 1 set

Click here to contact

Product details

Working Capacity (m3 / h):	7;	Accelerator Dosage (%):	2-10;
Max Aggregate Size:	20mm;	Model:	PZ-7 Dry Shotcrete Machine;
Spraying Hose Diameter (mm):	57/64;	Delivery Detail:	0 days after payment;
Feeding Height (mm):	1300;	Air Consumption (m3 /min):	10-12;
Condition:	New;	Certification:	ISO9001:2008;
Recommended Water-cement Ratio:	≤0.4;	Working Air Pressure (MPa):	0.4-0.6;
Warranty:	1 Year;	Voltage:	380V;
Brand Name:	TXSL;	Main Motor + Vibration Motor (kw):	7.5+0.25;
Air Consumption:	8-10m3/min;	Hose Inner Diameter:	57 mm;
Single package size:	160X90X140 cm;	Power(W):	5.5 KW;
Package Type:	Plywood pellet or Cases suitable for long-distance shipment PZ5 lightweight shotcrete pump dry shotcrete machine for sale;	After-sales Service Provided:	Video technical support,Online support;
Dimension(LWH):	1500mm800mm1300mm;	Application:	tunnel shotcreting;
Weight:	850kg;	Max. Conveying Distance:	30 mvertical, 100m horizontal;
Place of Origin:	Henan China (Mainland);	Single gross weight:	900 KG;
Selling Units:	Single item;

PZ5 lightweight shotcrete pump dry shotcrete machine for sale

Product Features

Main Features of PZ5 lightweight shotcrete pump dry shotcrete machine for sale

1, Enlarged feeding inlet facilitates the continuity of concrete output. Air flow can be set at a certain rate, also can be adjusted timely to ensure the continuity of the concrete and accelerator.
2, New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubb-er liner prevent concrete sticking and blocking in the machine.
3, Wear parts are made of the materials with unique structures. Elastic and automatic clamping device improves tightness of the machine and reduces the wear of parts.

Product Parameters

Main Features of PZ5 lightweight shotcrete pump dry shotcrete machine for sale

Model	PZ-6	PZ-7	PZ-9
Working Capacity (m³ / h)	6	7	9
Max. Convey Distance (m)	30 vertical, 100 horizontal	30 vertical, 100 horizontal	30 vertical, 100 horizontal
Recommended Water-cement Ratio	≤0.4	≤0.4	≤0.4
Accelerator Dosage (%)	2-10	2-10	2-10
Max. Grain Size (mm)	20	20	20
Spraying Hose Diameter (mm)	Φ51	Φ57/Φ64	Φ57/Φ64
Working Air Pressure (MPa)	0.4-0.6	0.4-0.6	0.4-0.6
Air Consumption (m³ /min)	8-10	10-12	10-12
Feeding Height (mm)	1100	1300	1300
Main Motor + Vibration Motor (kw)	5.5+0.15	7.5+0.25	11+0.25
Weight (kg)	750	850	900
Dimensions (mm)	1400×800×1100	1500×800×1300	1500×800×1300

Why choose us?

Are you concerned about high price of overseas purchasing?

Are you concerned about machine quality?

Are you concerned about after-sales service?

Are you concerned about quick-wear parts?

Product Application

We have models of PZ-5, PZ-7, PZ-9.

PZ-5 gunite machine is medium-sized shotcrete machine,to spray the dry or damp concrete mixture.

PZ-7 dry mix shotcrete machine is a universal medium-sized shotcrete machine.

PZ-9 is a large concrete spraying machine used to spray dry or wet concrete mixture.

PZ5/7/9 are mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.

Can be equipped with electric, pneumatic or diesel engine drive.
