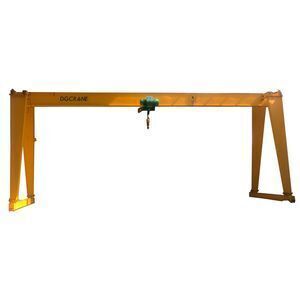

1ton 2ton 3ton 5ton 10ton 15ton 20ton Electric Single Girder Gantry Crane With Hoist

Product details
Payment Terms:L/C,T/T;Brand Name:DG;
Span:30m;Supply Ability:100 Set/Sets per Month;
Max. Lifting Height:15m;Feature:Gantry Crane;
Port:Qingdao;Tianjin;Place of Origin:Henan China;
Application:workshop;Rated Lifting Moment:10t;
Condition:New;Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Construction works ,workshop;
Certification:ISO;Rated Loading Capacity:100kn;
Warranty:1 Year;After-sales Service Provided:Free spare parts;

1ton 2ton 3ton 5ton 10ton 15ton 20ton Electric Single Girder Gantry Crane With Hoist



Breif introduction for Single Girder Gantry Crane



  • MH Type Electric Single-girder Gantry Crane forms a complete set with electric hoist.
  • The surface of facing wind is very small, because of its steel-piping leg.
  • It is the best light crane, which is used both in multi-wind area and workshop.It also has ground-controlling and emote-controlling.
  • Lifting capacity is 2-20t(Gn),and the span is 10-30m, working system is 25% and ambient temperature no more than 40°C.
  • Wind pressure is less than 125pa.

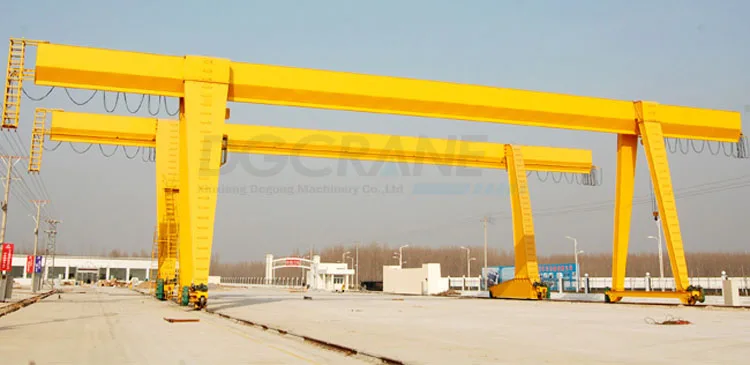

Other types of Single Girder Gantry Crane



        Single girder box gantry crane

  • Used together with CD MD model electric hoist.
  • Lifting capacity is 5 to 20 ton.
  • Span is 12 to 30 meters
  • Working temperature is -20°C to + 40°C.
  • Appication: used at open or room ground and warehouses, yards etc.
  • Control: ground controlling and room controlling.

        Single girder truss gantry crane

  • The best light crane
  • Application: used both in multi-wind area and workshop for inside and outside.
  • Composed of metal structure, cart operating mechanism, electric device and trolley (electric hoist).
  • Control model: ground-controlling and remote-controlling.

        Single girder semi gantry crane

  • Lifting capacity: 2 to 10 tons
  • Span: 10~20m
  • Application: it could be used in outdoor or indoor warehouse for loading and unloading.
  • Features: saving the investment and space, reasonable structure, favorable performance, easy installation, reliable traveling etc.

         L type single girder electric trolley gantry crane

  • Track traveling mid-light type crane,
  • Loading capacity is from 5 to 32t
  • Span is from 12 to 30m, and the
  • Working temperature within -25 to 40°C.
  • Features: compact in frame, light in weight, steady in performance and facilitated in operation.

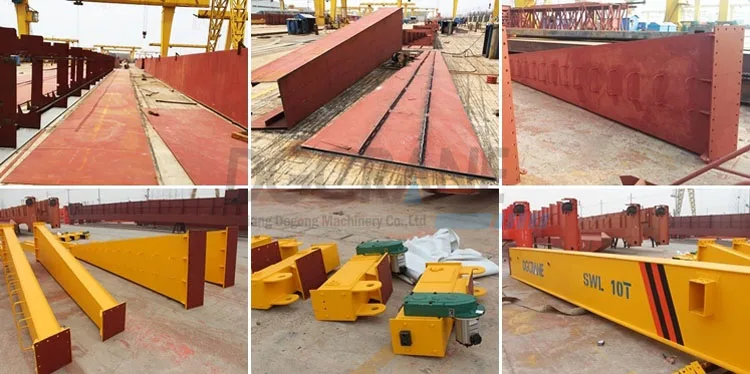

Production for Single Girder Gantry Crane





Safety features for Single Girder Gantry Crane



As safety is the most important concern for such big and heavy meachine, all of our cranes are equipped with the following devices:

  • Crane traveling limit switch
  • Weight overload protection device
  • Lifting height limit device
  • Voltage lower protection function
  • Phase sequence protection function
  • Emergency stop function
  • Rain cover for outside hoist, driving units, electrical cubicle.
  • Warning indicator: flashing lights and warning sound.
  • Wireless infra-detector for anti-collusion

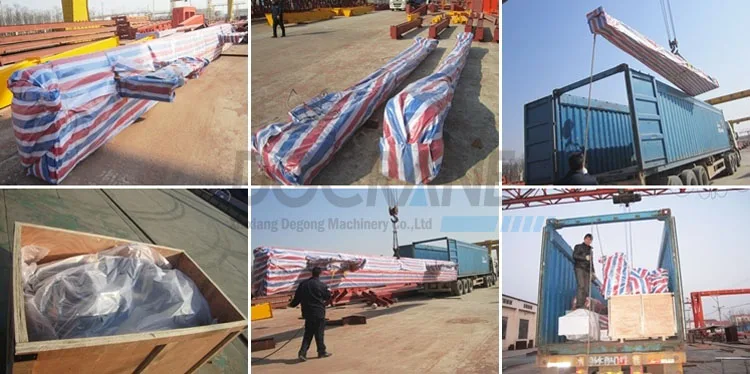

Packing and shipping for Single Girder Gantry Crane:





Component details for Single Girder Gantry Crane:



We choose the famous components with best quality for all of our products:

+

Name & Model

Manufacturer

Remarks

Electric control mechanism:

Electric hoist

Trolley control system

Crane traveling control system

Schneider or Siemens brand

International Famous brands

Electric lifting hoist/trolley:

Lifting motor

Traveling motor

Wuxi xindali brand

China famous material handling equipment production company

Reducer

Jiangsu taixing reducer co.,ltd

China famous brand

Wire rope

Jiangsu Nantong Taili Wire rope

Top-500 private enterprise in China

Overload limiter

Henan Hengda or Changzhou Changxin

Famous trademark of China

Stopper device

Hook group

Xinxiang Degong Machinery Co., Ltd.

China famous brand

Crane traveling mechanism:

Traveling Motor

Wuxi xindali brand

China famous material handling equipment production company

Reducer

Jiangsu taixing reducer co.,ltd

Professional reducer supplier

Wheel

Xinxiang Degong Machinery Co., Ltd.

China famous brand

Buffer

Liaoning Qingyuan or Shanxi Linfen

Top-500 private enterprise in China

Steel structure:

Main Girder

End truck

Service platform

Crane Travel Rail

Anyang Steel or Jinan Steel

One of the most influential enterprise in China

Crane Travel Rail

Xinxiang Degong Machinery Co., Ltd.

Hi-tech enterprise in China

Top 100 of Chinese Machinery industry

China famous bran

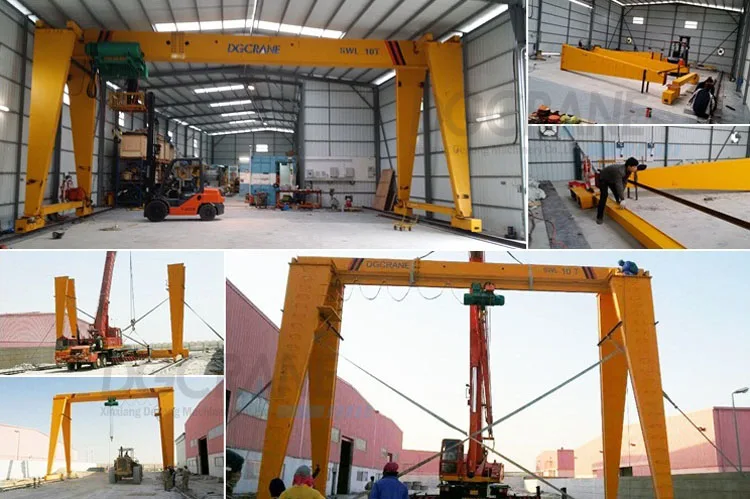

Abroad installation for Single Girder Gantry Crane:



Our installation engineers are available to be your workshop to help the installation:



Customer visits:



 We had got many of clinets from all over the world come here to see our factory by themselves.



About DGCrane







FAQ:



1. What kind of after-sale services will you supply?

     One year warranty.

      Providing free quick-wear part.

      Low charge for continue maintenance when warranty is expired.

      Exclusive engineer support at any time.

      We can provide free training to end-users.

 2. Can you make customized products?

      Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands,

      our engineers can make suitable design for you

 3. Can you book the boat for me, as we do not have our own forwarder?

     Sure, we have our own forwarder, and we had cooperated with the forwarder more than 5 years

 4.  Can you supply the quality certification?

      Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,

      or you can let some third-partied to do the inspection for you.

 5.   How can I install the crane?

      Our engineers can come to your work site to guide the installation.

 6.   Can I have a visit to your factory?

      You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
