Phoenix uk 2.5b Screw Power Electric Din Rail Terminal Block

Supplier: Zhejiang Keyi Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Matt Shi
Price: $0.115 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Conductor Size:	11 - 20 AWG;	CONWELL:	Factory;
Voltage:	800V;	Wire Range:	0.2-2.5 sqmm;
Current:	24A;	OEM/ODM/Sample:	Offer;
Certificate:	ISO9001/CE/ROHS;	Color:	Gray / Customized;
Port:	SHANGHAI/NINGBO;	Material:	PA66;
Number of Contacts:	1 - 10;	Model Number:	UK2.5B;
Type:	Screw;	Product name:	terminal blocks;
Application:	Wire Connecting;	Packaging Detail:	Normal export package;
Brand Name:	CONWELL;	Supply Ability:	10000 Piece/Pieces per Week;
Place of Origin:	Zhejiang China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;

Product Description

Terminal Blocks Details

Product Parameter

Type

SAK-2.5EN

SAK-4EN

SAK-6EN

SAK-10EN

SAK-16EN

SAK-35EN

SAK-70EN

Wire Section

0.2-2.5

0.2-4

0.2-6

0.2-10

0.5-16

10-35

25-95

Voltage

800V

Current

24A

32A

41A

57A

76A

125A

192A

Material

PA66

Standard

According to IEC 60947-7-1 Standard

Product Dimension

W/T/H

40/6/40.5mm

40/6.6/45.5mm

40/8/46mm

40.2/10/46mm

51/12/52mm

59/18/62.5mm

76/22/78.3mm

Screw Type

M2.5

M3.5

Torque

0.4-0.8Nm

0.5-1.0Nm

0.8-16Nm

2.0-2.4Nm

0.4-0.8Nm

0.5-1.0Nm

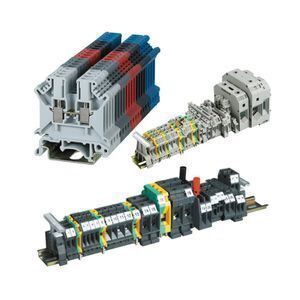

Product Picture

Product Installation

A flat bottom can ensure the very fine wires to be pressed and connected firmly.	When the monolithic terminal block in installed on the TH35-7.5 guide rail as shown in figure lock the right installing support to the rail and then push down along arrow's direction pushing it in place is the completion	We can customize you color

Packaging & Shipping

Packaging

1.Normal Package: inner box +carton

2.Specific packaging can be made to order.

Shipping

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.

And also can send by sea or air, kindly send me the port of yours.

Company Information

ABOUT CONWELL

For the product quality, we offer inspection the goods by visual telephone before send the goods.

Exhibition

FAQ

1. Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.
And we made many moulds for our customers alread.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.Just have to point out that ,it will cause some additional cost.

2. Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.But you have to pay for the shipping cos.
If you need many items, or need more qty for each item,we will charge for the samples.

3. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union and Paypal. Please be sure that we can receive the
same amount of the Invoice. And you can pay money In RMB. No problem.

4. Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.

5. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year.

Any requirements or question,welcome to "Send" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
