application: | powder, granule, plastic,crystallization; | Weight: | 550kg-16000kg; |
Motor Power: | 15KW; | option 3: | spraying system; |
option 2: | heating/cooling jacket; | Charging Capacity: | 1200L; |
material: | stianless steel 304; | Outline Dimension: | see drawing; |
option 1: | heavy/normal duty; | Working Cycle Period: | 3-8mims; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Mixing Power: | 15KW; |
Supply Ability: | 60 Set/Sets per Month TBA; | UNIQUE SELLING POINT: | High digging power; |
Warranty: | 1 Year; | After-sales Service Provided: | Video technical support,Online support; |
Discharge Way: | manual/pneumatic; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Packaging Detail: | wooden case; | Condition: | New; |
barrel volume: | 2000L; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining; |
Water Supply Mode: | spraying; | Reclaiming capacity: | 1200L; |
Place of Origin: | Shanghai China; | Port: | Shanghai; |
Brand Name: | shengli; |

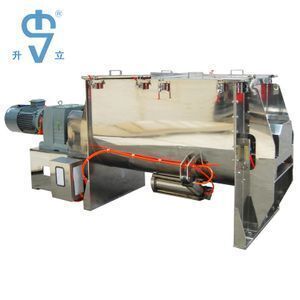

dry cement powder double ribbon mixer
LHY horizontal ribbon mixer is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule.
Under the driven of motor, the double ribbon agitator mix the material quickly.
Working principle:
The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention.The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.
specification | LHY-0.3 | LHY-0.5 | LHY-1 | LHY-2 | LHY-3 | LHY-4 | LHY-5 | LHY-6 | LHY-8 | LHY-10 | LHY-15 | LHY-20 | LHY-30 | |
wrking capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.8 | 6 | 9 | 12 | 18 | |
working capacity(kg) |
| 200 | 300 | 600 | 1200 | 1800 | 2500 | 3000 | 3600 | 4800 | 6000 | 9000 | 12000 | 15000 |
speed (r/min) | 62 | 62 | 49 | 33 | 33 | 27 | 27 | 27 | 22 | 14 | 14 | 14 | 12 | |
power(kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | |
weight | 600 | 900 | 1200 | 2000 | 2500 | 3500 | 4000 | 4500 | 5000 | 6000 | 7500 | 10500 | 13000 | |
Length | 2280 | 2670 | 3140 | 3860 | 4460 | 4950 | 5280 | 5530 | 5100 | 5610 | 5820 | 6300 | 7000 | |
width | 680 | 780 | 980 | 1200 | 1300 | 1400 | 1550 | 1560 | 1720 | 1750 | 2000 | 2350 | 2600 | |
Height | 880 | 1240 | 1400 | 1650 | 1700 | 2000 | 2100 | 2200 | 2500 | 2650 | 2900 | 3160 | 3350 |
1.Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different
material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer

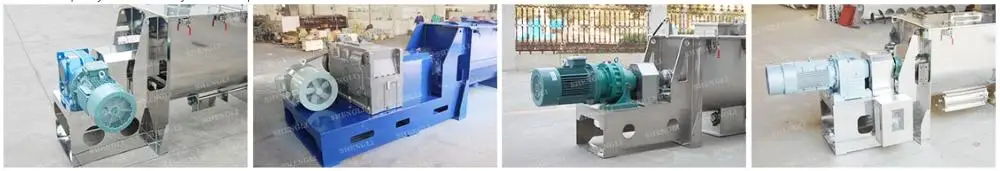

2.The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

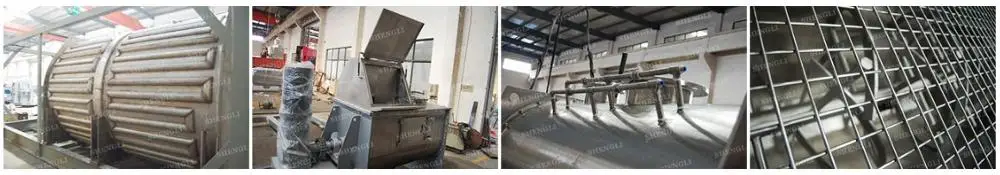

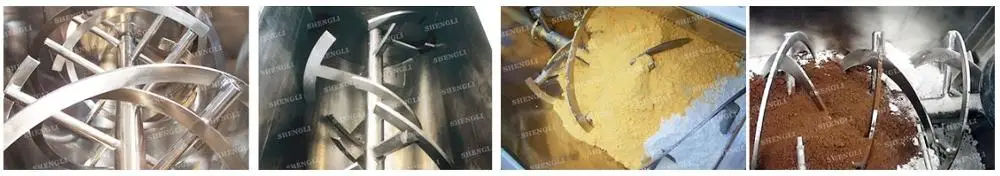

3.High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.
Materials commonly mixed are: different kinds of powder to be mixed with each other, batches mixing for the same material, powder with a small quantity of liquid,liquid with some powder, like slurry, thickening or diluting slurry, granule with powder, granule with granule.

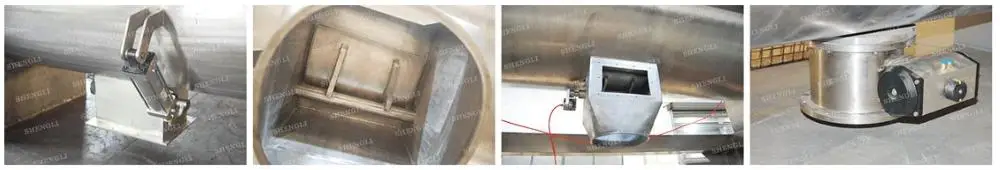

4.Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

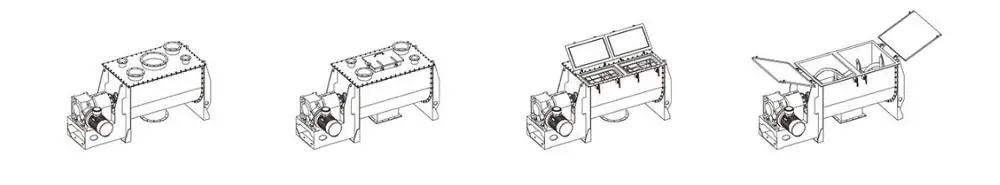

5.Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.
They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.
The top cover can be designed as fully-opened lid for easy cleaning.
6.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacket,sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 30 years,we go deeply mixing processing filed and related technology, devote to research different kinds of mixer,modify and perfect existing mixing system, and develop new-type mixer equipment.Under working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high quality ,and professional service team.Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems,providing more suitable mixer, promoting upgrades, and creating maximum value for customers.
Which payment terms can we accept? |
1. Normally we can work on T/T term or L/C.
2. On T/T term,30% down payment is required in advance. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clauses can be accepted. Please seek the advice form the individual sales manager whom you work with.
Which incoterms 2010 terms can we work? |
Shengli company is a professional and sophisticated international supplier, can handle all INCOTERMS 2010 terms, and we normally work on EXW, FOB, CIF
Delivery time |
Normally, our delivery time is 45 days after we receive the deposit. If the order is big, we need to extend the delivery time.
What logistics ways we can work for shipment? |
We can ship construction machinery by various transportation tools.
Normally, we will go by sea, to main continents, for light spare parts in urgent demand, we can ship it by international courier service. Such as DHL, TNT, UPS or FedEx.
Warranty time |
We ensure one year warranty, life-long service and provides technical support free of charge within or after warranty. Within the warranty period, we provide repair services for free. After the warranty period, we only charge cost of the required materials.
