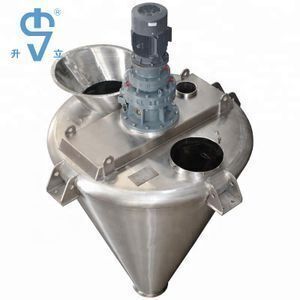

Double Screw Cone powder Mixer

Conical mixer is widely used in chemical, dyestuff,battery and rare earth line.

Product features:
1. full discharge and no leftover.
2. Gentle mixing no damage to fragile material.
3. Low-energy,more adaptable to chemical&physical reaction.

1.Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; different material can also be used in parts between the part contact with the raw material and the parts don’t contact with the raw material. Surface treatment for stainless steel can be sandblasting, wiredrawing, polishing, mirror polishing.

2.Reliable driven unit
The driven unit and power is varied according to different raw material, starting method, and processing.Double screw conical mixer is equipped with appropriative double output reducer, which combines pinwheel, gear and warm and gear.

3.Excellent discharging unit
Spherical valve or plum-blossom dislocation valve is matched to the double screw conical mixer.

The surface of the valve match the track of the bottom of screw, to reduce the mixing dead zone to the maximum,and to make the largest discharging area, so as to make sure no leftover.

Spherical valve has excellent sealing effect to powder, liquid and even in the negative pressure state.Plum-blossom dislocation valve is easy to operate and control the discharging speed

4.Powerful auxiliary components
Equipped with circulation medium of jacket, the double screw conical mixer can realize the temperature control in mixing process.In the mixer barrel, the part contact with material can coat some antiriot, anti-caking and metal isolation material according to different ingredient.

In some severe wear conditions, the screw surface can be overlaid by some wear proof alloy.
If a small quantity of liquid is required during mixing, spraying or atomizing unit is necessary in order to mix the liquid evenly with the main ingredient. The liquid-adding system is basically composed by the three parts: pressure source, liquid storage pot and spraying nozzles

Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 30 years,we go deeply mixing processing filed and related technology, devote to research different kinds of mixer,modify and perfect existing mixing system, and develop new-type mixer equipment.

With much working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high quality ,and professional service team.

Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems,providing more suitable mixer, promoting upgrades, and creating maximum value for customers.

Shengli company is a professional and sophisticated international supplier, can handle all INCOTERMS 2010 terms, and we normally work on EXW, FOB, CIF

Normally, our delivery time is 45 days after we receive the deposit. If the order is big, we need to extend the delivery time.

We can ship construction machinery by various transportation tools.

Normally, we will go by sea, to main continents, for light spare parts in urgent demand, we can ship it by international courier service. Such as DHL, TNT, UPS or FedEx.

We ensure one year warranty, life-long service and provides technical support free of charge within or after warranty. Within the warranty period, we provide repair services for free. After the warranty period, we only charge cost of the required materials.
