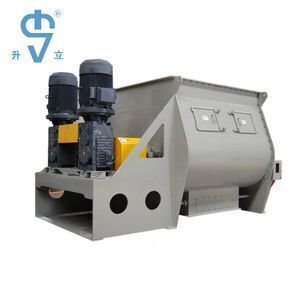

Double Shaft Paddle Mixer for Cement Powder Mixer
-
Supplier: Shanghai Shengli Machinery Manufacture Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Grace Sun -
Price: $5000.00 /set -
Min. Order: 1 set
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Certification: | CE ISO; |
| Supply Ability: | 30.0 Set/Sets per Month; | Features: | High Efficiency; |
| Marketing Type: | Ordinary Product; | Core Components: | Gearbox,MOTOR,GEAR; |
| Local Service Location: | none; | Application: | Dry Mortar Mixing; |
| Dimension(L*W*H): | referring; | Packaging Detail: | Wooden case package; |
| Voltage: | 380V/220V; | Power(W): | 7.5-45KW; |
| Machinery Test Report: | Provided; | Brand Name: | SHENGLI; |
| Weight: | 10-15T; | Place of Origin: | Shanghai China; |
| Condition: | New; | Showroom Location: | none; |
| Key Selling Points: | High-accuracy; | Raw Material: | Carbon Steel; |
| Packaging: | Wooden Case; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory; |
| Warranty: | 12 Months,1 YEAR; | Port: | Shanghai China; |
| Video outgoing-inspection: | Provided; | Warranty of core components: | 1 YEAR; |

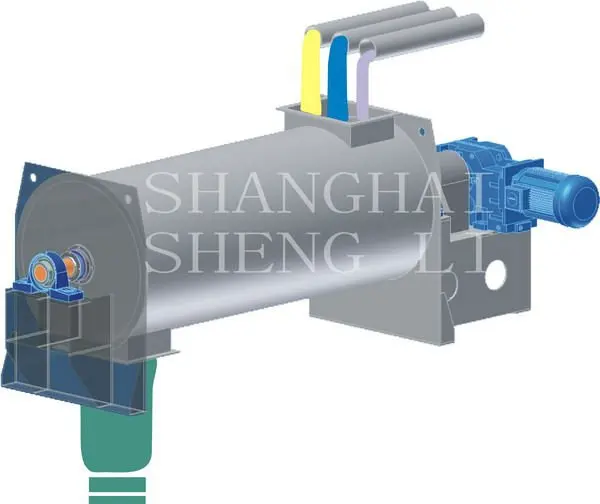

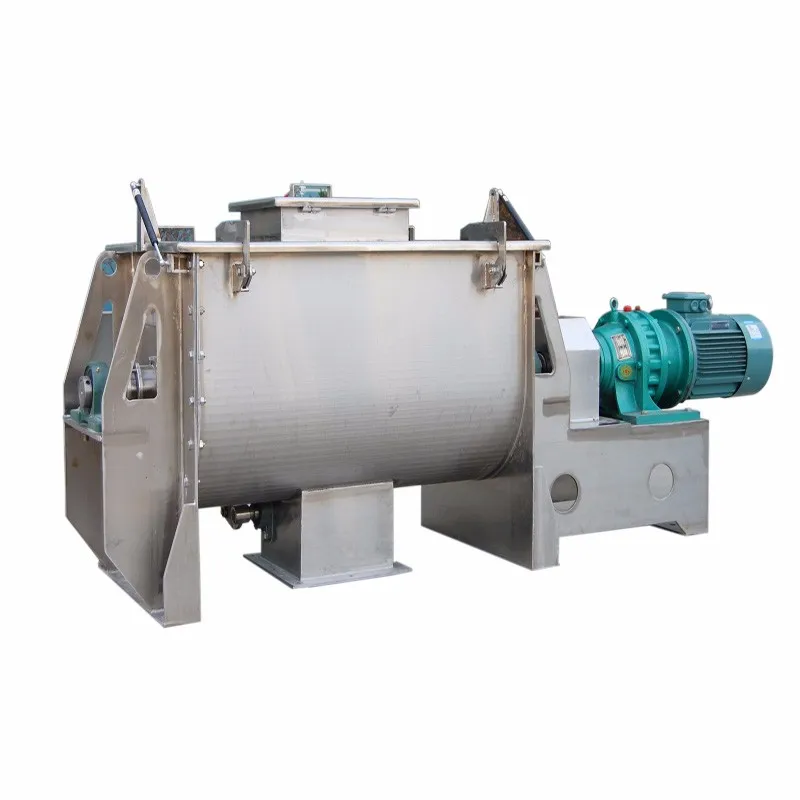

Double Shaft Paddle Mixer for Cement powder
Double shaft mixer is widely applied in chemical, biological, and construction material.
It can mix powder, granule, and fiber especially in battery, construction, environmental, mineral and agricultural line.
| specification | WZL-0.3 | WZL-0.5 | WZL-1 | WZL-2 | WZL-3 | WZL-4 | WZL-6 | WZL-10 | WZL-15 | WZL-20 |
| working capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 6 | 9 | 12 |
| working capacity(kg) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3600 | 6000 | 9000 | 12000 |
| speed(RPM) | 60 | 60 | 53 | 43 | 43 | 35 | 35 | 29 | 22 | 18 |
| power(KW) | 5.5 | 7.5 | 11 | 22 | 30 | 37 | 44 | 60 | 90 | 150 |
| weight | 650 | 900 | 1300 | 2300 | 2800 | 3400 | 5000 | 6000 | 8500 | 12000 |
| length | 1600 | 1800 | 2400 | 2800 | 3200 | 3400 | 3700 | 4000 | 4600 | 5200 |
| width | 850 | 1000 | 1400 | 1700 | 1950 | 2000 | 2200 | 2600 | 3100 | 3500 |
| height | 950 | 1100 | 1800 | 1950 | 2000 | 2000 | 2300 | 2600 | 2800 | 3000 |

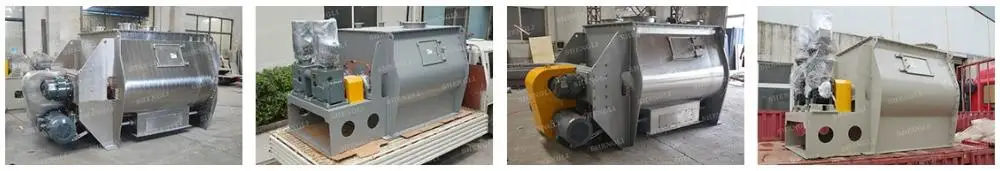

1.Flexible Material Selection
Material can be carbon steel, manganese steel, ss304, 316L and 321;
Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer

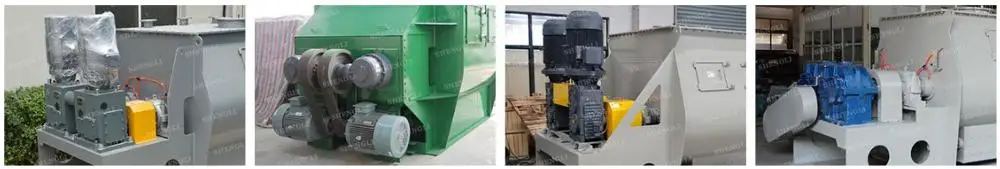

2.Reliable driven unit
The four different driven combination launched by Shengli Co. can meet different requirements of two synchronous gear box, double output gear box ,double synchronous planetary gear box, and the combination of reducer and chain.

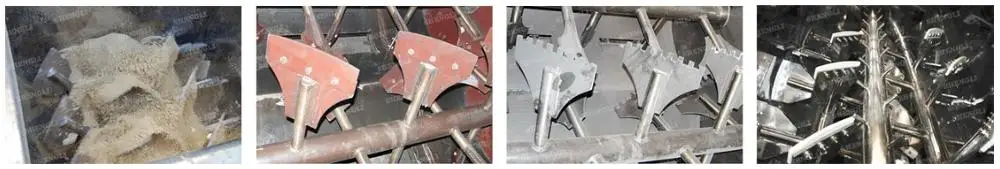

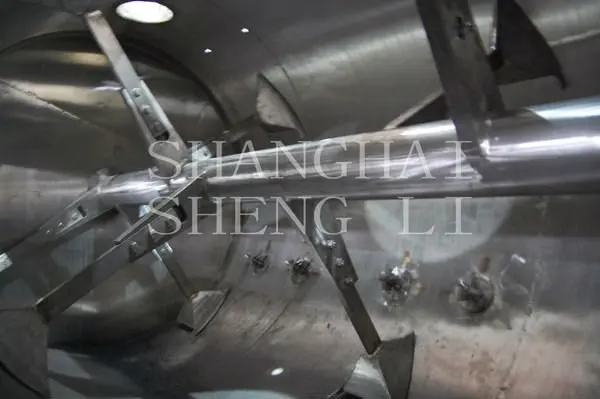

3.High efficiency mixing unit
Double shaft paddle mixer can be also added high speed breaking bar inside the barrel, scattering material following its flow.

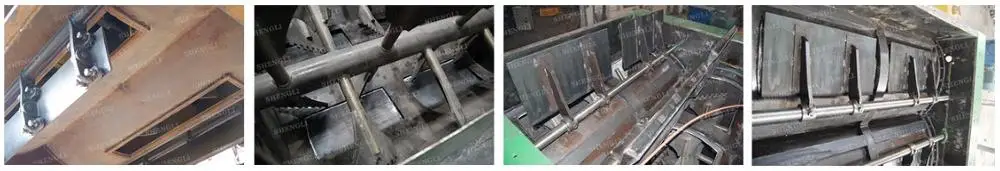

4.Excellent discharging unit
Standard valve for double shaft paddle mixer is twin pneumatic planar flap valves.
https://www.alibaba.com/product-detail/Conical-Screw-Mixer-Vertical-Mixer-For_213830212.html?spm=a2747.manage.0.0.322b71d2qWrDoMhttps://www.alibaba.com/product-detail/Conical-Screw-Mixer-Vertical-Mixer-For_213830212.html?spm=a2747.manage.0.0.322b71d2qWrDoM
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service.
In past 30 years, we go deeply mixing processing filed and related technology, devote to research different kinds of mixer
modify and perfect existing mixing system, and develop new-type mixer equipment.
Under working experience, we developed mixer processing machinery independently.
Pre-Sales Service
Inquiry and consulting support

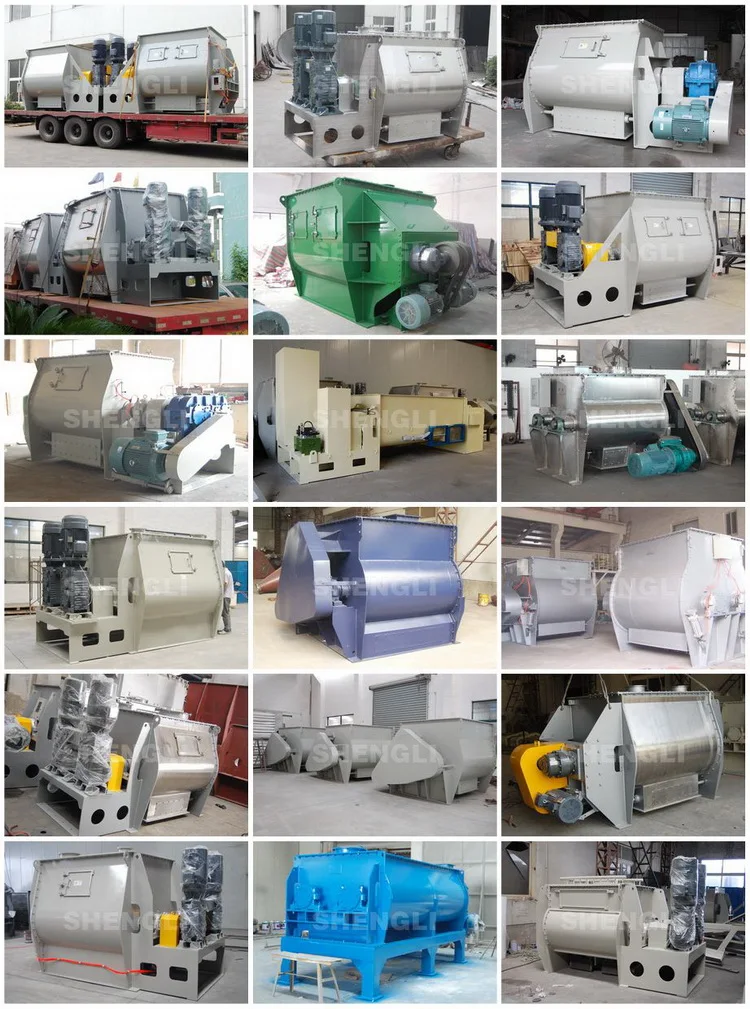

View our Factory
After-Sales Service
Training how to instal the machine, training how to use the machine
Engineers available to service machinery overseas.
|
Which payment terms can we accept? |
1. Normally we can work on T/T term or L/C.
2. On T/T term,30% down payment is required in advance. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clauses can be accepted. Please seek the advice form the individual sales manager whom you work with.
|
Which incoterms 2010 terms can we work? |
Shengli company is a professional and sophisticated international supplier, can handle all INCOTERMS 2010 terms, and we normally work on EXW, FOB, CIF
|
Delivery time |
Normally, our delivery time is 45 days after we receive the deposit. If the order is big, we need to extend the delivery time.
|
What logistics ways we can work for shipment? |
We can ship construction machinery by various transportation tools.
Normally, we will go by sea, to main continents, for light spare parts in urgent demand, we can ship it by international courier service. Such as DHL, TNT, UPS or FedEx.
|
Warranty time |
We ensure one year warranty, life-long service and provides technical support free of charge within or after warranty. Within the warranty period, we provide repair services for free. After the warranty period, we only charge cost of the required materials.
-
