ETCR010KD Split Type High Accuracy DC Leakage Current Sensor-----Factory, ODM,OEM

Click here to contact

Product details

Single package size:	16X8X5 cm;	Selling Units:	Single item;
Output:	Digital Sensor;	Package Preview:	https://sc02.alicdn.com/kf/HTB1jkbvKXOWBuNjy0Fiq6xFxVXaT.jpg_640x640.jpg;
Theory:	Current Sensor;	Place of Origin:	Guangdong China;
Brand Name:	ETCR;	Single gross weight:	0.15 KG;
Model Number:	ETCR010KD;	Usage:	Current Sensor;

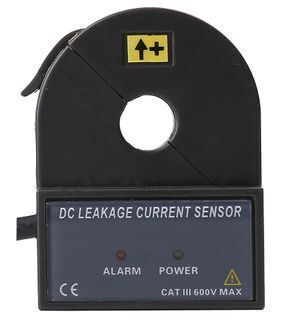

ETCR010KD Split Type High Accuracy DC Leakage Current Sensor

Our Services

Our buyers have stayed with us for 12 years

12 years of specialized meters

ISO Patent and CE certificate

OEM ODM services available

More information, please kindly view our web site: http://www.etcr.com.cn

Product Description

DC leakage current, current measurement, range: 0.0mA~100mA

Output DC voltage: 0.0V~5.0V (50mV/1mA)

Supply voltage: ±12V DC (±5V DC or 9V DC available)

Line voltage: below 600V

CT structure: Split Type

CT size: Φ10mm

. Technical Specification

Power	DC 9V(or±5VDC)
Clamp size	Φ10m
Range	AC 0.0mA~100mA
Voltage output	50mV/1mA,0 to 100mA corresponds to output 0 to 5V
Resolution	0.1mA
Linearity	±3.0%FS(50Hz/60Hz;23℃±2℃)
Power consumption	≤20mA
Linearity	≤1.0%
Coils Turn	800:1
output method	Voltage sensing output
Output Interface	5P terminal
Detection method	Split Type CT,suitable for online installation
Wire position	The wire under test is in the center of the jaws
Line voltage	below AC 600V
working environment	-20℃~50℃; below 80%Rh
Storage environment	-10℃~60℃; below 70%Rh
Insulation	AC 2kV/rms (Between core and shell)
Protection Type	IEC1010-1,IEC1010-2-032,Pollution 2,CAT Ⅲ(600V)
Weight	65g
Current sensor size	53mm×42mm×28mm
