Brand Name: | ETCR; | Size of Jaw: | 32(mm); |
Stored data: | 99 groups; | Resistance Meter: | Clamp Earth Resitance Tester; |
Place of Origin: | Guangdong China; | Single package size: | 35X22X11 cm; |
Operating Temperature: | -20-55 degree; | Dimensions: | 260*90*66mm; |
Accuracy Class: | ±(1%+0.01)Ω; | Display Type: | Digital Only; |
Model Number: | ETCR2100A+; | Selling Units: | Single item; |
Measuring Range: | 0.01-200ohm; | Single gross weight: | 2.5 KG; |
Testing Voltage: | ~; |

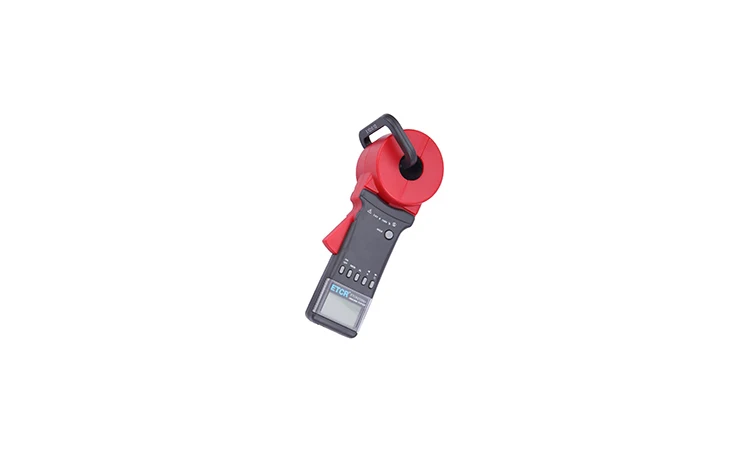

ETCR2100A+ Clamp Earth Resitance Tester
Function | Ground resistance test, Loop resistance test |
Power Supply | 6VDC 4 PCS of AA Alkaline batteries |
ResistanceRange | 0.010-200Ω |
Resistance Resolution | 0.001Ω |
Highest Resistance Accuracy | ±1%±0.01Ω |
Data memory | 99 Sets |
AlarmThreshold Setting Range | Resistance: 1-199Ω |
Alarm Sound and Light | "du-du-du” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. |
Interference Signal Recognition | “du-du-du” tone, NOISE symbol blinking |
Working Temperature and Humidity | -20°C-55°C; 20%RH-90%RH |
LCD Screen | 4 Digits LCD display, Screen L×W: 47mm×28.5mm |

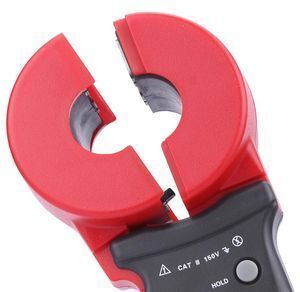

Clamp Size | Φ32mm |
Clamp Opening Extent | 32mm |
Tester Weight | 1120g (With batteries) |
Clamp Dimension | L×W×T: 260mm×90mm×66mm |
Protection Level | Dual Insulation |
Structural Feature | ClampCT |
Shifting | Automatic shifting |
External magnetic field | < 40A/m |
External electrical field | < 1V/m |
Single measurement time | 0.5 second |
Resistance measurement frequency | > 1KHz |
Measured current frequency | 50/60Hz Automatic measurement |
Low Battery Indication | Low battery symbol displays when battery is lower then 5.3V |
Memory Full Indication | MEMsymbol blinks when all 99 sets memory is full |
Over Range Indication | Out of range indication “OLΩ”, "L0.01”or “OL A” |
Auto Power-off | 5 minutes after Boot up |
Power Consumption | Max 50mA either in booting up or normally working, Continuously working for 30 hours |
RS232 Interface (Optional) | The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files |
Accessories | Meter: 1 piece, Test Ring: 1 Piece, Meter Suitcase: 1 Piece |
1.Q: Are you trading company or manufacturer?
A: We are factory.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We will arrange shipment in 3~5 days after check the payment.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, PayPal, Western Union, Money Gram, Cash etc.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the product warranty?
A: 2 years.
