ETCR2100C+ manufacturer digital clamp-on earth ground resistance tester meter clamp on ground resistance tester

Supplier: Guangzhou ETCR Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Johnson Zhang
Price: $177.62 /piece
Min. Order: 1 piece

Click here to contact

Product details

Measuring Range:	0.01-1200ohm,0.0mA-20A;	Single gross weight:	3 KG;
Interface:	RS232;	Dimensions:	2609066mm;
Testing Voltage:	no;	Sound and light alarm:	"du-du-du -" alarm sound;
Clamp meter:	Clamp on ground resistance tester;	Brand Name:	ETCR;
Single package size:	36X23X12 cm;	Model Number:	ETCR2100C+;
Operating Temperature:	-20-55 degree;	Package Type:	Weight:2.5KG/PCS Package:6 PCS/CARTON Size:703724cm;
Display Type:	Digital Only;	Accuracy Class:	0.001ohm, 0.05mA;
Selling Units:	Single item;	Stored data:	99 groups;
Place of Origin:	Guangdong China;	Package Preview:	https://sc01.alicdn.com/kf/HTB1N3dWJFuWBuNjSszbq6AS7FXaV.jpg_640x640.jpg;

Product Description

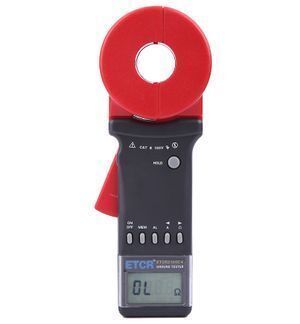

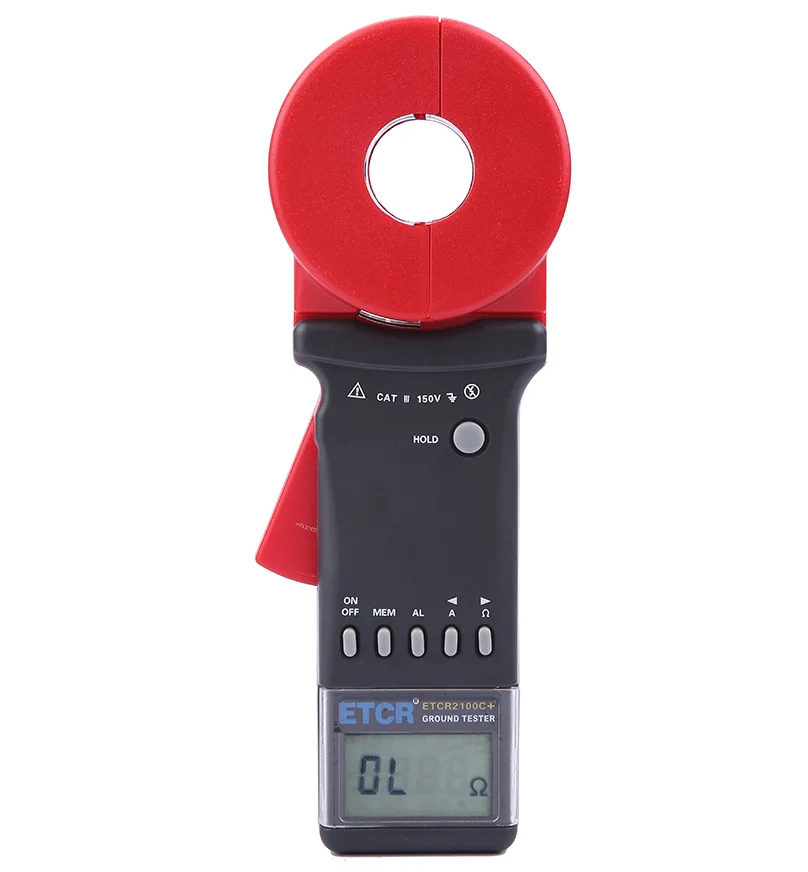

ETCR2100C+ manufacturer digital clamp-on earth ground resistance tester meter clamp on ground resistance tester

Function	Ground resistance test, Loop resistance test
Power Supply	6VDC 4 PCS of AA Alkaline batteries
Resistance Range	0.01-1200Ω
Resistance Resolution	0.001Ω
Highest Resistance Accuracy	±1%±0.01Ω
Current Range	0.00mA-20.0A
Current Resolution	0.05mA
Highest Current Accuracy	±2.5%±1mA
Data memory	99 Sets
Alarm Threshold Setting Range	Resistance: 1-199Ω
Alarm Sound and Light	"du-du-du” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.
Interference Signal Recognition	"du-du-du” tone, NOISE symbol blinking
Working Temperature and Humidity	-20°C-55°C;20%RH-90%RH
LCD Screen	4 Digits LCD display, Screen L×W: 47mm×28.5mm
Clamp Size	Φ32mm
Clamp Opening Extent	32mm
Tester Weight	1120g (With batteries)
Clamp Dimension	L×W×T: 260mm×90mm×66mm
Protection Level	Dual Insulation
Structural Feature	ClampCT
Shifting	Automatic shifting
External magnetic field	< 40A/m
External electrical field	< 1V/m
Single measurement time	0.5 second
Resistance measurement frequency	> 1KHz
Measured current frequency	50/60Hz Automatic measurement
Low Battery Indication	Low battery symbol displays when battery is lower then 5.3V
Memory Full Indication	MEMsymbol blinks when all 99 sets memory is full
Over Range Indication	Out of range indication “OLΩ”, "L0.01”or “OL A”
Auto Power-off	5 minutes after Boot up
Power Consumption	Max 50mA either in booting up or normally working, Continuously working for 30 hours
RS232 Interface (Optional)	The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files
Accessories	Meter: 1 piece, Test Ring: 1 Piece, Meter Suitcase: 1 Piece
