Winnsky SMD saw resonator 433.92MHz QCC2A with quartz frequency stabilization

Product details
Tolerance from 433.92MHz:±75KHz;Size:7.5*3.5mm;
Item:saw resonator 433.92mhz;Place of Origin:Guangdong China (Mainland);
center Frequency:433.92MHz;Delivery Detail:0 days after payment;
Package:QCC2A SMD;Insertion Loss:2.2dB;
Absolute Frequency:433.845-433.945MHz;Package Preview:https://sc02.alicdn.com/kf/HTB1o0EBNmzqK1RjSZFpq6ykSXXaB.jpg_640x640.jpg;
Single gross weight:0.85 KG;Model Number:NDR4208;
name:Winnsky SMD saw resonator 433.92MHz QCC2A;Warranty:Global 180 Days Return;
Package Type:Anti-static plastic bag & carton box :1 reel/bag, 5bags/box (5000pcs) (Winnsky SMD saw resonator 433.92MHz QCC2A with quartz frequency stabilization);Selling Units:Single item;
Type:MHz Crystal;Single package size:19X19X9.5 cm;
Brand Name:WINNSKY;
Product Description

 Winnsky SMD saw resonator 433.92MHz QCC2A with quartz frequency stabilization

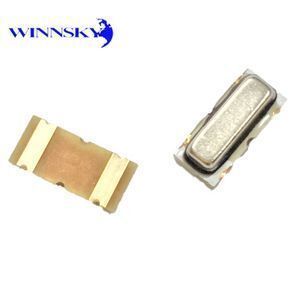

 Product Show

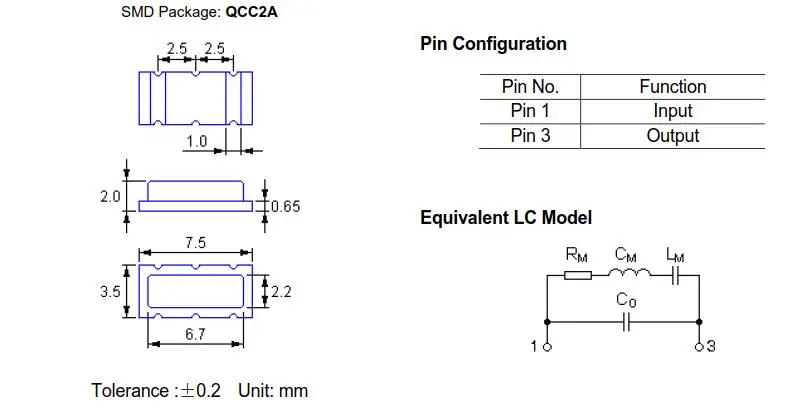

Package Dimension

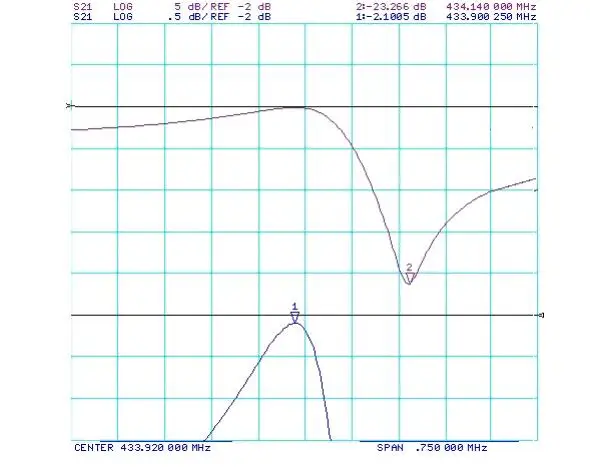

Typical Frequency Response

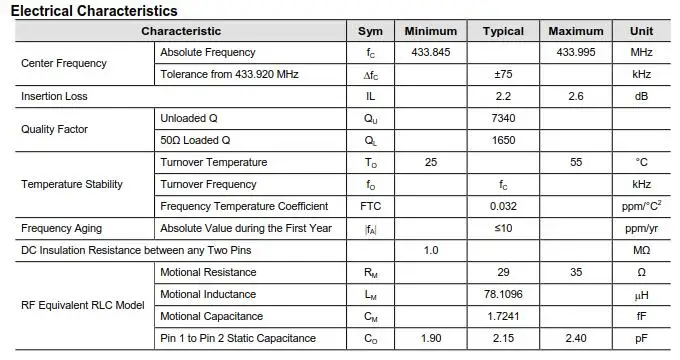

Electronic Characteristics







Company Information

Company Information

Winnsky was established in 2007,focus on rf and microwave frequency components,PIR sensor and module R&D/Production/Selling.



Company located in Shenzhen and only 20minutes driving to Shenzhen Bao'an International Airport.Our main categories contains SAW filer/SAW resonator/SAW duplexer series;DIP/Microstrip/SMD/Coaxial/Dual/Waveguide/Broadband/Low IMD/High Power circulator and isolator;Dielectric material series filter and resonator;PIR sensor and module series;Microwave and milliterwave module series products.



Seperately set up R&D/production base in Nanjing and Shenzhen,more than 100 master/doctor degree R&D staff graduated from 985/211 universities,factory area covered 30000sqm and building area 1000sqm with ISO9001/TS16949 certificates approved.



Taking "profession,focus,innovation,leading"as business philosophy,we can offer the all-around service from design/application/production/logistics,our products have been exported tomore than 30countries and regions like Japan,Korea,Brazil,Russia, Taiwan..etc, built the long-term relationship with world-famous companies like Sony/Philips/Huawei/ZTE/Greatwall Motor/Geely Auto/Honda/Nissan.







Related Products

SAW Filters

Model

Center Frequency

Bandwidth

Insertion Loss

Package

NDF110L

110MHZ

1.152MHZ

3.5dB

F-11

NDF3068

340MHZ

8MHZ

3dB

3.8*3.8mm

NDF4039

448MHZ

4MHZ

3dB

3.8*3.8mm

NDF4050

455MHZ

5MHZ

2.1dB

3.8*3.8mm

NDF4098

455MHZ

5MHZ

1.6dB

3.0*3.0mm

NDF5029

787MHZ

22MHZ

2dB

3.0*3.0mm

NDF8010

836.5MHZ

25MHZ

2.7dB

3.0*3.0mm

NDF9295

1842.5MHZ

75MHZ

2.8dB

3.0*3.0mm

NDF9124

1950MHZ

60MHZ

2.5dB

3.0*3.0mm

NDF9498

3700MHZ

200MHZ

4.7dB

3.0*3.0mm











Our products range:


A, SAW:SAW FILTER\SAW RESONATOR\DUPLEXER


B, RF Circulator


C, RF Isolator


D, PIR Sensor


E, Dielectric Resonator



F, waveguide





Shipment and Payment

Shipment and Payment

Contact information

 Contact information

Contacts :
 Mr. Eonsun Huang
Tel :
 +86-755-29163599
Phone :
 +86-13902942895
Fax :
 +86-755-33230856
Homepage:
 https://winnsky.en.alibaba.com/



Our Services

-Why Choose US

1.11 Years Experience in electronic componet R&D,producing and selling

2.Certification: ISO9001,ISO14001,RoHS

3.Provide A Full Set of Reliability Lab

4.Door to Door Service

5.Global 180 Days Return

6.OEM/ODM service can be provided base on customer requesting

7.Excellent pre and after-sale service,professional engineers will always stand by to service



FAQ

FAQ

1.What is your general lead-time for mass and sample?
Normally 3-4weeks for mass,and same for samples.Depends on the reality situation.

2.Can you offer the free samples?
Small quantity samples can be free offered base on customer requesting.

3.What basic information we needed when ordering?
Generally the center frequency,holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc,or your OEM requesting.
