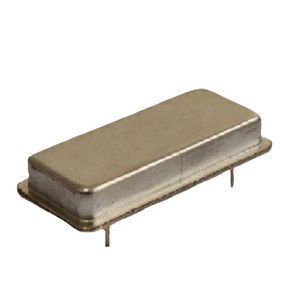

WINNSKY SAW (Surface Acoustic Wave) Filter Intermediate/Medium Radio Frequency IF RF MF with High Insertion Loss Factory Offer

Supplier: Shenzhen Winnsky Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Bryan Huang
Price: $0.50 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Center / Cutoff Frequency:	190MHz;	Supply Ability:	1000000 Piece/Pieces per Month;
Height (Max):	5.5MM;	Model Number:	WINNSKY1488 SAW Filter;
3dB Bandwidth:	1.76MHz;	Type:	SAW Filter;
Mounting Type:	Through Hole;	Bandwidth:	1.76MHz;
Packaging Detail:	High Quality Anti-static Package for Guaranteed Delivery;	Brand Name:	WINNSKY;
Input Impedance:	50ohm;	Port:	SHENZHEN;
Transfer Function:	Band Pass;	Stopband Attenuation:	56;
Size / Dimension:	34.812.65.5MM;	D/C:	2021Q2;
Filter Type:	Band Pass;	Nominal Center Frequency:	190MHz;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Insertion Loss:	23.5dB;
Operating Temperature:	-40~85;	Frequency:	190MHz;
Package Type:	Throught Hole;	Applications:	Wireless Communication;
Brand:	WINNSKY 190MHz IF SAW Filter;	Impedance:	50Ohm;
Place of Origin:	Guangdong China;

SPECIFICATION:

Model: WINNSKY1488

Brand: WINNSKY

Central Frequency: 190MHz

Package: DIP3512J

Insertion Loss: 22.9dB

Dimension: 34.8*12.6*5.5mm

Operation Temperature: -40~85℃

Supply Ability: 100000PCS/Day, able to raise if needed.

Lead Time: for regular models, 1-2 weeks;

for customized models, 3-4 weeks

Packing&Delivery:

High quality EPE, best protection for the products.

Special requirement regarding package is acceptable.

ABOUT WINNSKY:

Winnsky is specialized in SAW components (SAW filter and SAW resonator), RF Circulator, RF isolator, Multiplexer, Antenna, Microwave and Milimeter wave group series product:

Filter Series:SAW Filter, Dielectrical Filter, Multi-layer Filter

Circulator Series: Drop-in Circulator,SMD Circulator, Duplexer Circulator, Microstrip circulator, Coaxial Circulator. Stripline Circulator

Isolator Series: Drop-in Isolator,SMD Isolator, Duplexer Isolator, Microstrip Isolator

Resonator Series: SAW Resonator,Dielectrical Resonator, Ceramic Resonator

Multiplexer series: SAW Duplexer, Dielectrical Duplexer, Multi-layer Duplexer, Triplexer,

Antenna series: Dielectrical Antenna, Multi-layer antenna

Microwave module series: Microwave and Milimeter Wave Series

Our products are widely used in cellular, 4G LTE, 5G Telecommunication, Bluetooth, GPS and Beidou (BDS) navigation, positioning, time service, wireless headphones, wireless microphone, Unlimited number, Electronic Warfare, telemetry, remote control, radar, Surveillance, IOV, NB-IoT.
