Shenzhen WINNSKY amostras gratis 6pins 433.92 mhz quartz crystal Saw Resonators

Product details
Frequency Range:433.895-433.945MHz;Frequency:433.92MHz;
Package:smd dcc6c saw resonator;application:remote control;
Brand Name:WINNSKY;Packaging Detail:Anti-static bag(Shenzhen WINNSKY amostras gratis 6pins 433.92 mhz quartz crystal Saw Resonators );
Insertion Loss:1.5dB;Tolerance from 433.92MHz:±25KHz;
Supply Ability:1000000 Piece/Pieces per Month SAW Resonator;name:1year;
Place of Origin:Guangdong China;Package Dimensions:3.0*3.0 mm 6pins;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Materials:quartz crystal oscillator;
Model Number:NDR4127;Impedance:50 Ohm;
Port:Shenzhen;
Product Description

 Shenzhen WINNSKY amostras gratis 6pins 433.92 mhz quartz crystal Saw Resonators

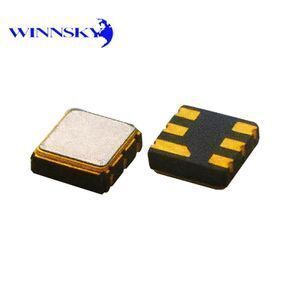

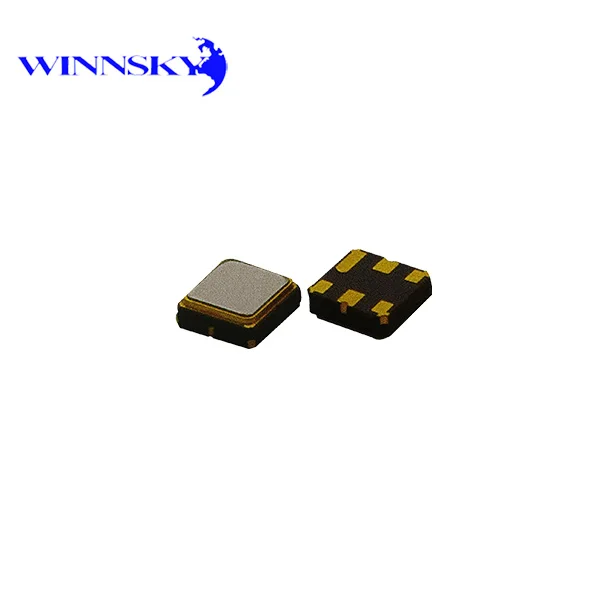

 Product Show

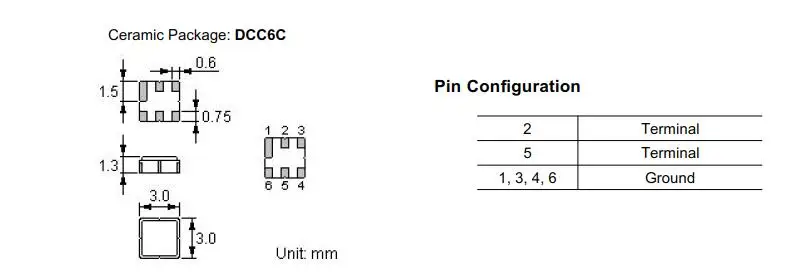

Package Dimension

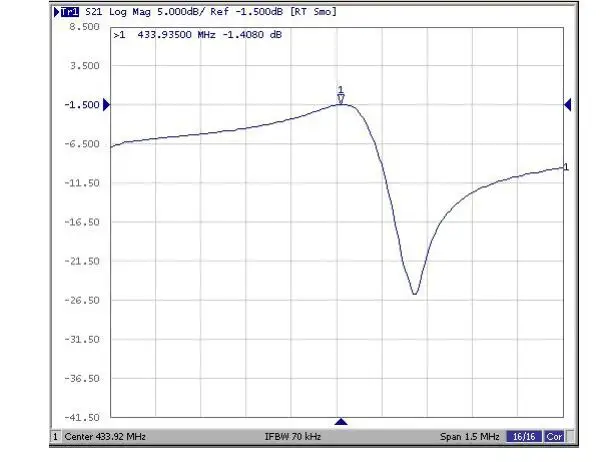

Typical Frequency Response

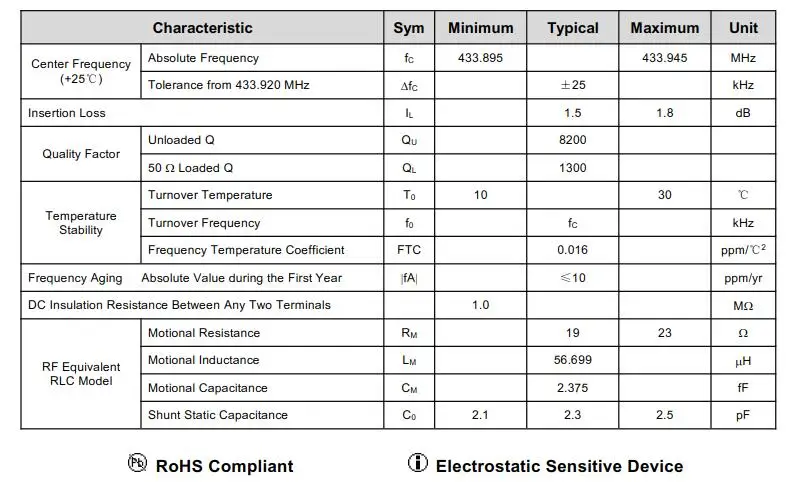

Electronic Characteristics





Related Products

One-Port SAW Resonators

Model

Center Frequency

Tolerance

Insertion Loss

Package

NDR154

154MHZ

±80KHZ

2.2dB

F-11

NDR3098

306MHZ

±75KHZ

1dB

5.0*3.5mm

NDR4111

311MHZ

±75KHZ

1.5dB

5.0*5.0mm

NDR3013

330MHZ

±75KHZ

1.2dB

5.0*5.0mm

NDR3039

390MHZ

±75KHZ

1.2dB

5.0*5.0mm

NDR4007

418MHZ

±75KHZ

1.2dB

5.0*3.5mm

NDR4047

418MHZ

±75KHZ

1.7dB

3.8*3.8mm



NDR4133

433MHZ

±75KHZ

1.6dB

3.0*3.0mm





















NDR809

809MHZ

±150KHZ

1.2dB

TO-39

NDR868

868MHZ

±150KHZ

1.2dB

TO-39

NDR915

915MHZ

±150KHZ

1.6dB

TO-39















































Our products range:


A, SAW:SAW FILTER\SAW RESONATOR\DUPLEXER


B, RF Circulator


C, RF Isolator


D, PIR Sensor


E, Dielectric Resonator



F, waveguide



Shipment and Payment

Shipment and Payment

Contact information

 Contact information

Contacts :
 Mr. Eonsun Huang
Tel :
 +86-755-29163599
Phone :
 +86-13902942895
Fax :
 +86-755-33230856
Homepage:
 https://winnsky.en.alibaba.com/



Our Services

-Why Choose US

1.11 Years Experience in electronic componet R&D,producing and selling

2.Certification: ISO9001,ISO14001,RoHS

3.Provide A Full Set of Reliability Lab

4.Door to Door Service

5.Global 180 Days Return

6.OEM/ODM service can be provided base on customer requesting

7.Excellent pre and after-sale service,professional engineers will always stand by to service



FAQ

FAQ

1.What is your general lead-time for mass and sample?
Normally 3-4weeks for mass,and same for samples.Depends on the reality situation.

2.Can you offer the free samples?
Small quantity samples can be free offered base on customer requesting.

3.What basic information we needed when ordering?
Generally the center frequency,holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc,or your OEM requesting.
