C51/52 cnc and conventional vertical lathe machine/vtl vertical lathe for sale

Click here to contact

Product details

Supply Ability:	100 Set/Sets per Year;	Automatic Grade:	Manual;
Model Number:	C5225/C5232/C5240/C5250 vtl;	Max. Swing Diameter:	12500mm;
Condition:	New;	After-sales Service Provided:	Online support,Video technical support,Free spare parts;

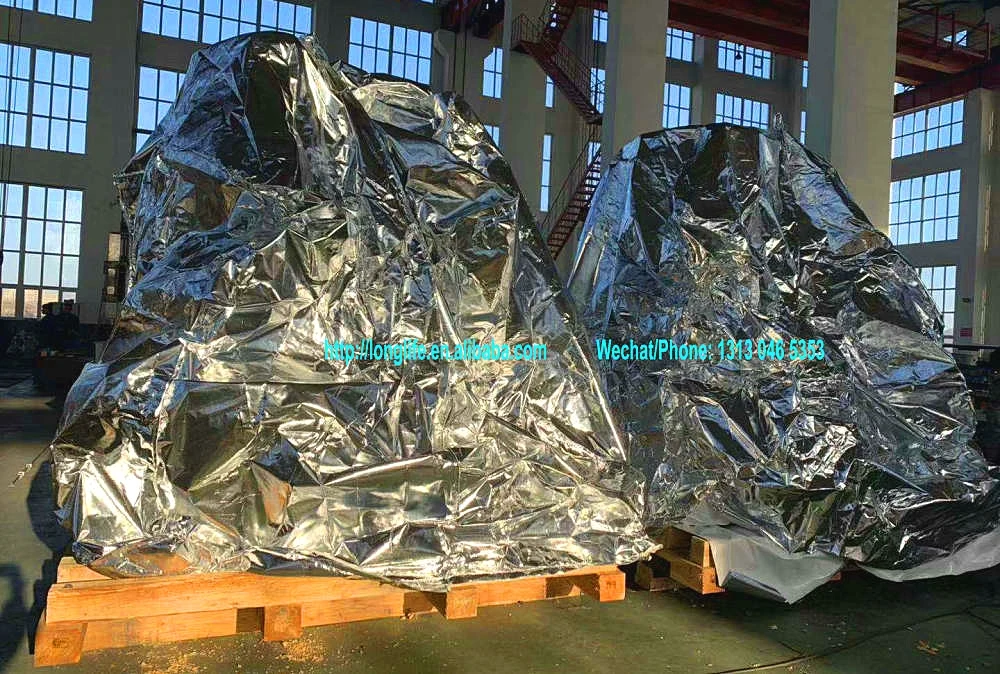

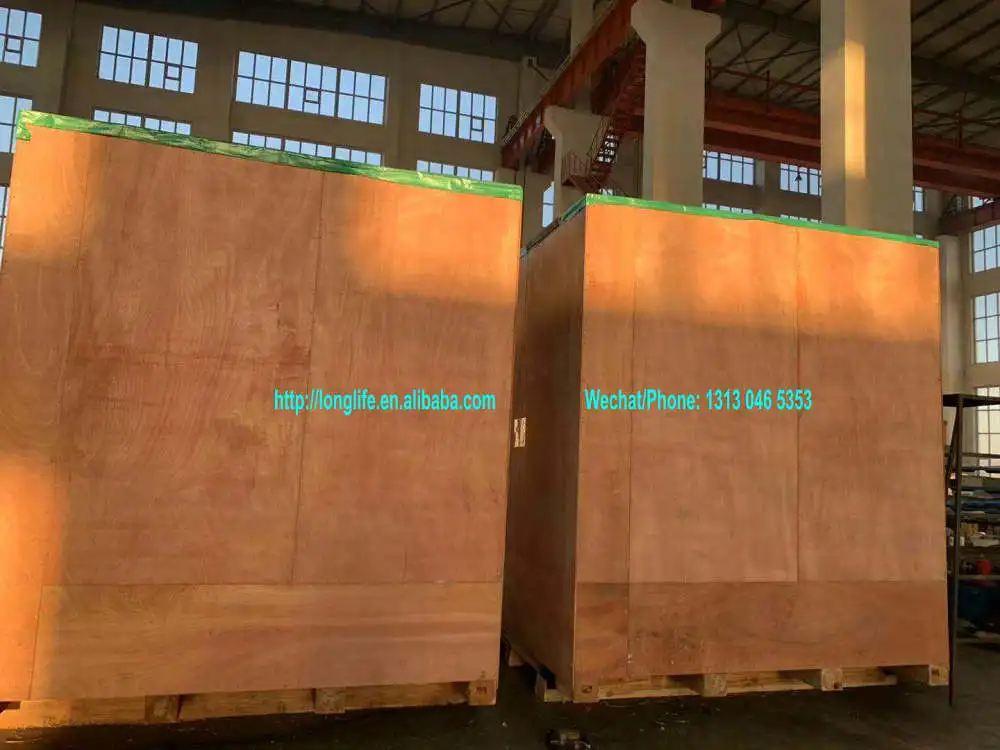

Packaging Detail:	Standard Wooden Case for vertical lathe machine/vtl export;;	Place of Origin:	Liaoning China (Mainland);
Certification:	CE; ISO9001:2008;;	Power(W):	15~132 kW;
Color:	Customized Option;	Machine Type:	cnc and conventional vertical lathe machine;
Weight:	depends;	Warranty:	1 Year;
After-sales Service Provided:	Engineers available to service machinery overseas;	Applicable Industries:	Manufacturing Plant;
Type:	Vertical;	Brand Name:	LFM;
Port:	Dalian/Tianjing/Shanghai/Qingdao,China;	Voltage:	Customer's Requirement;
DRO:	equipped on 2 axies for free;	Dimension(LWH):	depends;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Key Selling Points:	High Productivity;
CNC or Not:	Normal;

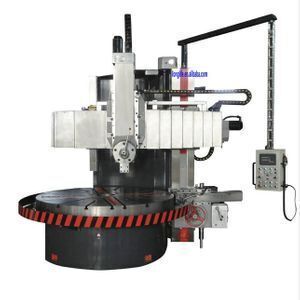

C51/52 cnc and conventional vertical lathe machine/vtl

Related Vertical VTL

C5116(Ø1600mm) Hot-sale Vertical Lathe Machine

C5225(Ø2500mm) 2-column Vertical Lathe Machine

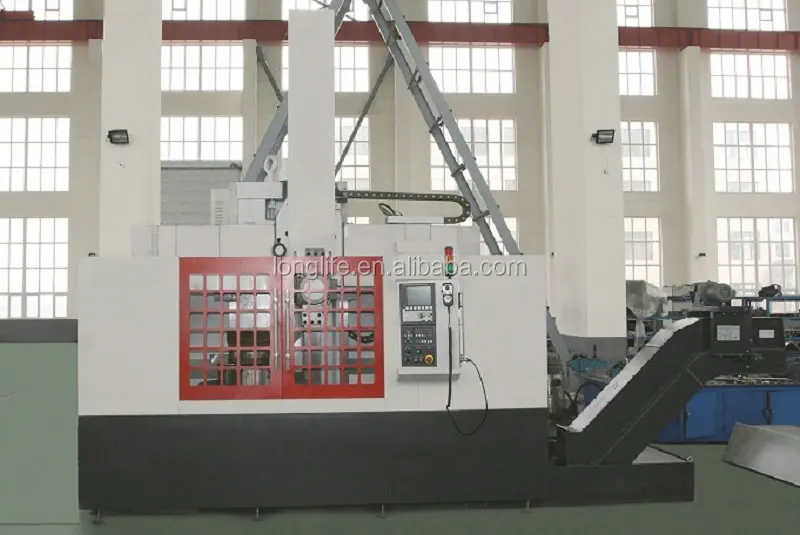

CKX5112(Ø1200mm) 3-axis CNC Vertical Turning and Milling Center

Main features:

1. CE is approved;

2. There are four series of vertical lathe machine in our company:

Universal single-column vertical lathe, universal dual-column vertical lathe; CNC single-column vertical lathe and CNC dual-column vertical lathe.

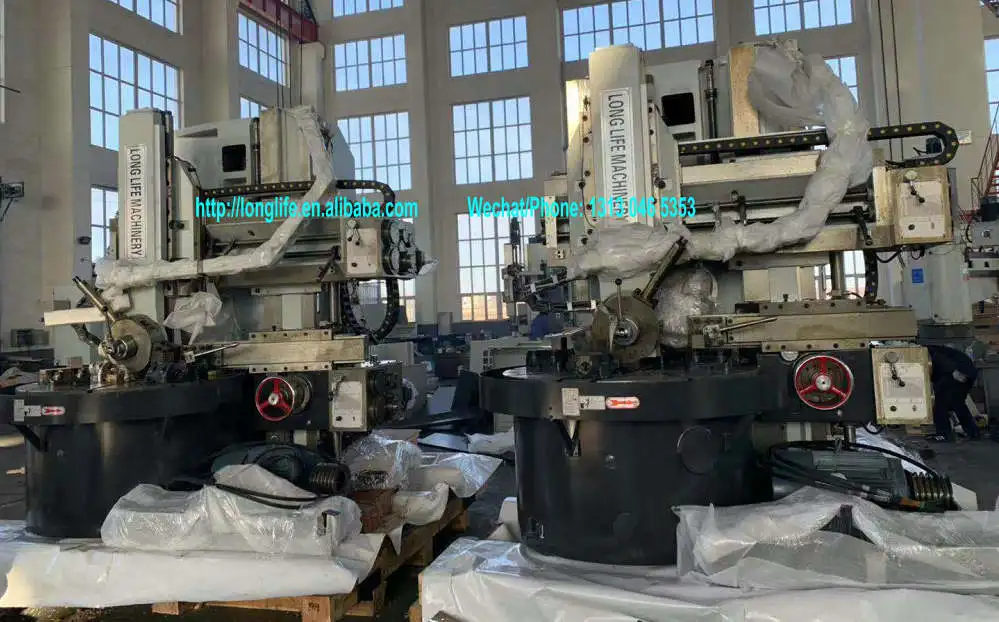

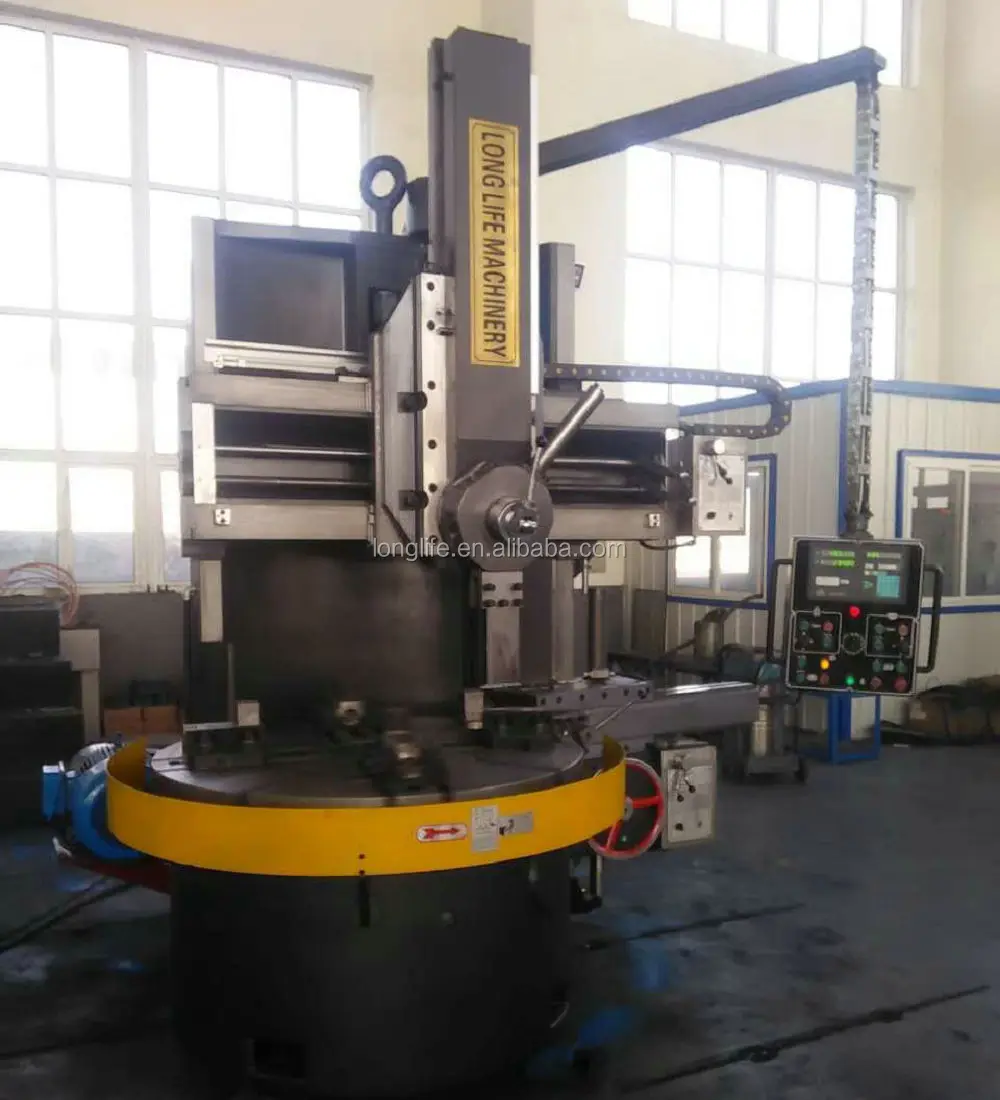

3. Universal Single-column Vertical Lathe: C517 C518 C5110 C5112 C5116 C5120 C5123 C5126 C5132;

4. CNC controllers: Fanuc, Siemens and other world famous brands;

Main Technical Data:

Universal Single-column Vertical Lathe Machine: C517 C518 C5110 C5112 C5116 C5120 C5123 C5126 C5132:

Specifications	Unit	C518A	C5110	C5112A	C51120	C5126	C5132
Max. turning diameter of railhead	mm	800	1000	1250	2000	2300	3200
Max. working height	mm	800	800	1000	1200	1500	1600
Max. weight of workpiece	T	1.2	2	4	8	10	10/30
Table diameter	mm	720	900	1000	1800	2300	2830
Speed range of table	r/min	10~315	8~250	6.3~200	4~125	1.2~40	2~63
Speed-step of table	steps	16	16	16	16	16	16
Power of main motor	kW	15	22	22	30	37	37

Universal double column vertical lathe machine: C5225 C5232 C5240 C5250 C5263 C5280 C52100 C52125:

Specifications	Unit	C5225	C5232	C5240	C5250	C5263	C5280	C52100	C52125
Max. turning diameter	mm	2500	3150	4000	5000	6300	8000	10000	12500
Max. working height of workpiece	mm	1600	2000	1600	2000	3000	4000	4000	4000
Max. weight of workpiece	T	10	10/30	10/32	30/50	50	100	100	100
Table diameter	mm	2250	2830	2830/3200	3600/4500	3800	5700/6000	7100	7500
Speed range of table	r/min	2~63	2~63	2~63	0.2~40	0.5~50	0.2~20	0.16~16	0.16~16
Speed-step of table	steps	16	16	16	16	16	16	16	16
Travel of right tool post (Vertical)	mm	1300~1500	1000~1500	1000~1500	1250~1600	1600~2000	2000	2520	2520
Travel of left tool post (Horizontal)	mm	1400	1735	2150	20~2630	3415	50~4400	50~4400	50~4400
Power of main motor	kW	55	55	55/75	75/75	75	DC132	DC132	DC132
