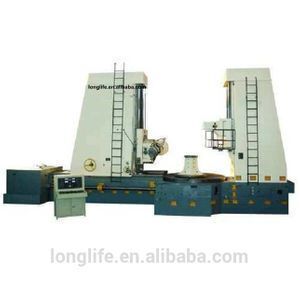

Y31 series gear hobbing machine/gear creator

Product details
Key Selling Points:High Productivity;Voltage:Customer's Requirment;
Warranty:1 Year;Type:Gear Hobbing Machine;
Weight (KG):25000;Power(W):21~61kW in all;
Brand Name:LFM;Supply Ability:100 Set/Sets per Year N/A;
Max. workpiece diameter:8000mm;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Place of Origin:Liaoning China;Applicable Industries:Manufacturing Plant,Machinery Repair Shops;
Packaging Detail:Standard Wooden Case for gear hobbing machine/gear creator export;;Port:Dalian/Tianjing/Shanghai/Qingdao, China;
After-sales Service Provided:Engineers available to service machinery overseas;Color:Customized;
Dimension(L*W*H):depends;CNC or Not:Normal;
Max. modulu:10~40mm;Certification:CE; ISO9001; GB/T19001:2008;;
Condition:New;Machine Type:gear hobbing machine/gear creator;
After-sales Service Provided:Online support,Video technical support,Free spare parts;

Y31 series gear hobbing machine/gear creator/gear hobber

Recommended Hobbing

Y3180(Ø800mm) Conventional Gear Hobbing Machine



Y31315(Ø3150mm) Widely-used Mid-sized Gear Hobbing Machine with PLC

Machine Featurers:

Y31 series gear hobbing machine/gear creator/gear hobber has following features:

1. It is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece.

2. This machine provides with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.

3. It can process gear with down milling and up milling method in axial or radial way.

4. According to the requirements of customer, this machine can be equipped with Siemens or Fanuc CNC System to process crown gear and Small Taper Gear, and it can also heighten or lengthen machine tool.

5. CNC is available, too.

Main Technical Data:

Specifications

Unit

Y31125E

Y31200E

YA31160E

YAQ31200E

YQ31250E

Y31315B

YDQ31400

Y31800B

Maximum hobbing modulus

mm

12 (Steel)

12 (Steel)

12 (Steel)

12 (Steel)

12 (Steel)

30(Steel)

30(Steel)

30(Steel)

Maximum hobbing modulus

mm

16 (Cast iron)

16 (Cast iron)

20 (Cast iron)

20 (Cast iron)

20 (Cast iron)

30(Cast iron)

40(Cast iron)

40(Cast iron)

Maximum workpiece diameter when processing straight tooth gear

mm

1000 (With rear column)

1500 (With rear column)

1300 (With rear column)

1760 (With rear column)

1950 (With rear column)

3150(With rear column)

5000 (With rear column)

8000(With rear column)

Maximum workpiece diameter when processing straight tooth gear

mm

1250 (Without rear column)

2000 (Without rear column)

1600 (Without rear column)

2000(Without rear column)

2500(Without rear column)

1600(Without rear column)

1400(Without rear column)

Rotary range of spindle

r/min

16~125

16~125

19~125

19~125

16~100

5~50

5.5~40

5.5~40

Total power of the machine

kW

21

21

24

24

24

32.8

61

61

Minimum workpiece diameter

mm

130

130

130

130

130

130

130

130

Maximum spiral angle



±450

±450

±450

±450

±450

±450

±450

±450

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353

7, Fax us:+86-411-84410129
