YDZ-200 200L self-pressurised liquid nitrogen tanks with top valves

Supplier: Xinxiang Jinxin Import And Export Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Mr Wang
Price: $1998.00 /set
Min. Order: 1 set

Click here to contact

Product details

Delivery Detail:	3days after pament;	Packaging Detail:	Standard export carton packing;
Capacity:	200L;	Name:	YDZ-200 200L self-pressurised liquid nitrogen tanks with top valves;
Transfision Volume:	≥8L/min;	Model Number:	YDZ-200;
Accessories:	valves; level gauge, pressure gauge, moving cart, transfer hose;	Pressure of safety valve:	1.5bar or based your requirements;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Working Pressure:	1bar or based your requirements;
Mode:	YDZ-200;	External Dimension:	706*1450mm;
Supply Ability:	500 Set/Sets per Month;	Brand Name:	JX;
Classification:	Laboratory Refrigeration Equipments;	Place of Origin:	Henan China;
No. of safety valve:	2pcs;	Port:	any port of China;
Empty Weight:	112kg;

Pressure LN2 Tank

YDZ Self-pressurized Liquid Nitrogen Tanks

YDZ series self-pressurized liquid nitrogen tanks are made of high quality stainless steel materials, which equipped with booster system.This booster system itself can produce pressure to discharge liquid continuously.

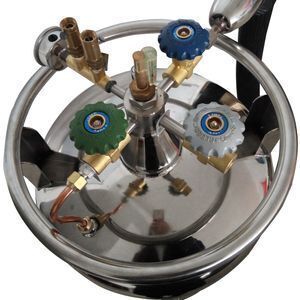

This kind of dewar is composed of a control system and tank. The control system mainly includes liquid inlet and outlet valve, pressure building valve, release valve, double safety valves, liquid level gauge and pressure gauge.

Manufacturing Range: Tanks from 15L to 2000L

(namded YDZ series, like 200L tank for liquid nitrogen, YDZ-200)

YDZ-200

200L pressure liquid nitrogen tanks with cryogenic valves and transfer hose
Capacity	Dimension	Empty Weight	Working Pressure	Pressure of Safety Valves	Transfusion Volume
200L	706*1450	112	1bar	1.5bar	≥8L/min
Accessories: Valves: discharge valve; double safety valve; air release valve; pressure valve; Others: liquid level gauge; pressure gauge; moving cart; 2-3meter transfer hose

Pictures

Packign & Delivery

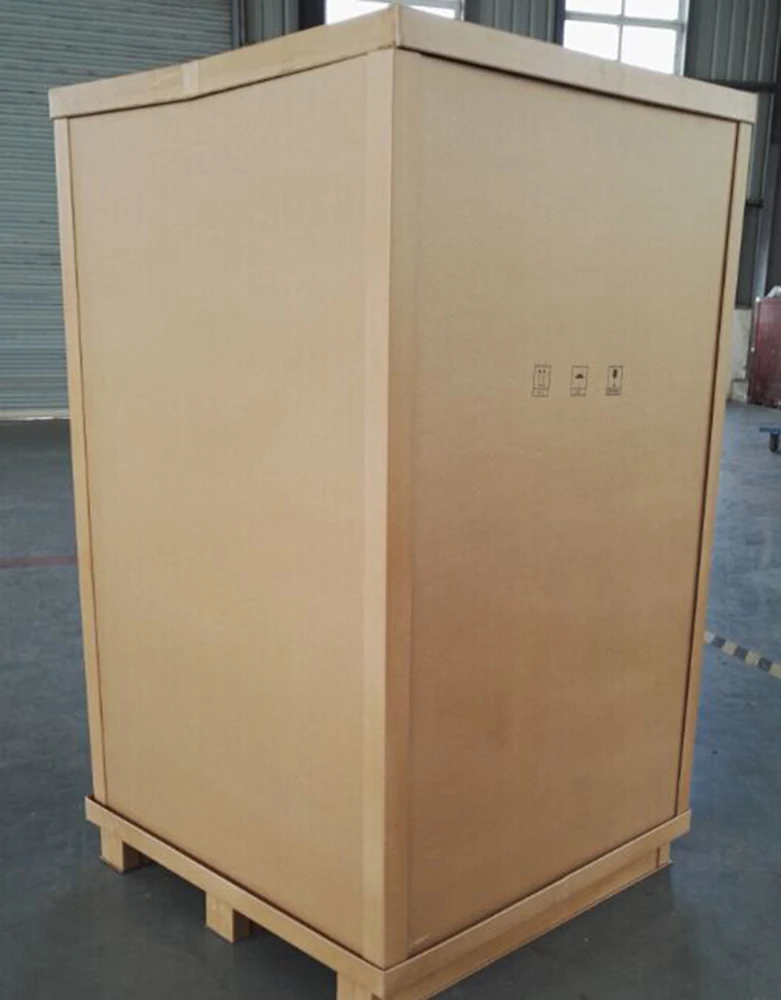

Packing

Standard export carton package or customize according to customers' requirements

Delivery:

we accept to delivery by air, air express, sea, and land.

Speed of Shipment:

Fist, by air express/air (most fast, in one week);

Second, by sea/land

Other LN2 Tanks

We also manufacture aluminum liquid nitrogen tanks, which can be used for storing biological samples; only for LN2 storage; or making liquid nitrogen ice cream, etc.

We manufacture aluminum liquid nitrogen tanks from 2L to 400L.

Types:

1>. storage tanks

2>. lab tanks;

3>. dry (vapor) shippers

Related products for aluminum liquid nitrogen tanks:

1>. manual pump for tanks to transfer LN2 out;

2>. roller base for easily moving tanks;

3>. liquid level rod for measuring level of liquid nitrogen in the inner tank;

Company

In order to cooperate with the development of China's aerospace industry, Jinxin Machinery Co., Ltd was founded in 1978, with the mission of cryogenic system in military projects. In the past four decades, Jinxin gradually focused its capacity on civil cryogenic equipments and solutions.

Under our innovation and market’s driving, Jinxin Cryogenic product portfolio now includes Stainless Steel Cryogenic Freezers, Aluminum Dewars, Bulk Storage tanks, Supply Systems and relevant accessories. Jinxin items are widely used in Biotech and Pharmaceutical, Animal Husbandry, Research Facilities, Food and Beverage, Metallurgy and more.

What we provide is not only the first-class equipment, but also the first-class service since customers’ initial consultation. Stable quality, perfect service, rapid delivery and reasonable price help JX brand win high reputations in the market. We have exported to more than 50 countries such as US, UK, France, Germany, Australia, Brazil, Uruguay, Ghana, Kenya, Turkey, Cambodia and so on.

Keep moving is a faith of every Jinxin staff. We highly appreciate your frank comments and suggestions. Welcome to be our strategy partner worldwide! Jinxin is always ready to work together with you for brighter future!
