50l/100l/200l ydz-50 ln2 liquid nitrogen dewar with transfer hose for cryosauna

Product details
Brand Name:JX;Dimension:506*991mm;
Port:Qingdao, Shanghai, Guangzhou, Tianjin or any port of China;Pressure of the first safety valve:0.99bar;
Packaging Detail:Standard Fumigation free wooden case 50l/100l/200l ydz-50 ln2 liquid nitrogen dewar with transfer hose for cryosauna;Classification:Laboratory Refrigeration Equipments;
Standard working pressure:0.5bar;Supply Ability:2000 Set/Sets per Month;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Maximum working pressure:0.9bar;
Name:50l/100l/200l ydz-50 ln2 liquid nitrogen dewar;Weight empty:54kg;
Delivery Detail:Shipped in 3 days after payment;Model Number:YDZ-50;
Pressure gauge:0--2.5bar;Place of Origin:Henan China;
Material:Stainless Steel;Pressure of the second safety valve:1.5bar;
Effective capacity:50L;

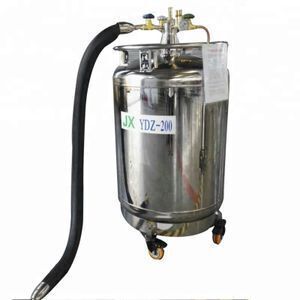

YDZ-50 Details

As you have seen below, our self-pressure liquid nitrogen cylinder can be equipped : a standard 1.5-meter vacuum hose for transferring liquid nitrogen use; double safety valves for relieving pressure in the inner tank and protect the stability of tank; a release valve; a discharging valve; a pressure building valve for easily discharging liquid nitrogen; a pressure gauge.

Important specifications for normally working
Standard working pressure: 0.5bar
when the data in pressure gauge reaches 0.5bar, open the discharging valve, then the cylinder will automatically discharging liquid nitrogen itself. This is an economic way to transfer LN2 at pressure 0.5bar
Maximun working pressure: 0.9bar
Generally, for safety and economical use, our cylinders usually are set at the range of 0.5bar--0.9bar, which is a safe and economic operating way. Because we should take the pressure of safety valves into consideration
Furthermore, we can provide you a suitable solution according to your demand on pressure.
The pressure of safety valves: there are double safety valves to keep the stability of inner tank
Pressure of the first safety valve: 0.99bar
Pressure of the second safety valve: 1.5bar
Indication of pressure gauge: 0--2.5bar
Whatever you want to fill liquid nitrogen to this cylinder, or discharge liquid nitrogen from this cylinder to another one, we can provide you a professional filling methods and discharging instruction.
WhatsApp/Mobile: +86 18336073803;          Skype: miracle-vicky;           Website: www.jxcryo.com
Other Models

Model
Capacity
(L)
Effective
capacity (L)
Dimension
(D*H)mm
Daily evaporation rate
Maximun working pressure
Standard working pressure
YDZ-15
16.5
15
404*750
2.5L/d
0.9bar
0.5bar
YDZ-30
32
30
454*879
2.5L/d
0.9bar
0.5bar
YDZ-50
55
50
506*991
2L/d
0.9bar
0.5bar
YDZ-100
110
100
606*1185
1.3L/d
0.9bar
0.5bar
YDZ-150
165
150
706*1188
1.3L/d
0.9bar
0.5bar
YDZ-200
220
200
785*1265
1.2L/d
0.9bar
0.5bar
ATTENTION:
1.Each model is equipped two safety valves:
Pressure of the first safety valve: 0.99bar
Pressure of the second safety valve: 1.5bar
2.Each models is also euqipped a pressure gauge: 0--2.5bar

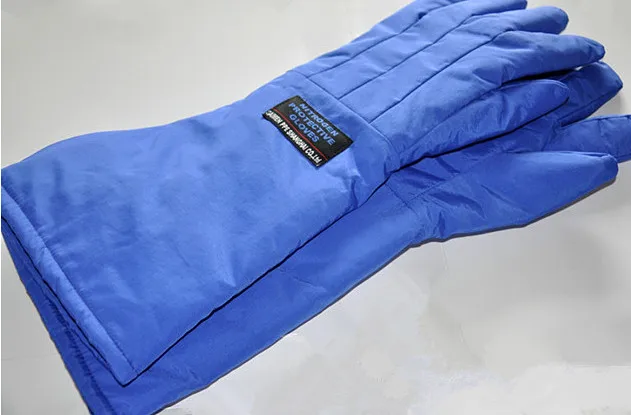

Cryogenic Gloves

Whatever ice cream making methods you prefer to, please pay attention to prevent the liquid nitrogen from freezing your hands. Maybe you need cryogenic gloves/apron against the low temperature.

(Click here, view more>>>)

Packing & Delivery

Packing: Standard Fumigation free export wooden case

Delivery: By sea; by air; by air express; by land, we need provide you more suitable shipping way according to your quantity

Other Cryogenics

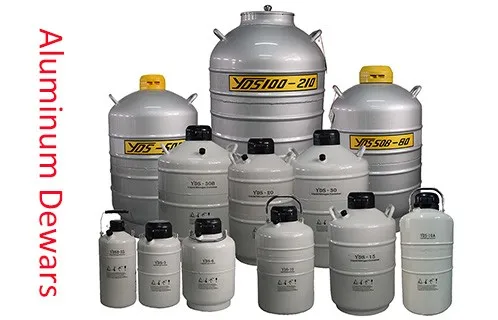

Aluminum liquid nitrogen dewars

Click here>>>

Cryobanking

Click here>>>

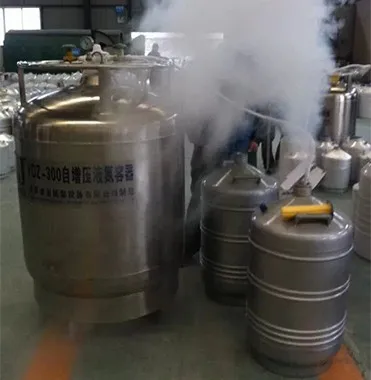

Through YDZ series to fill liquid nitrogen to dewars & cryobanking

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for sample order?
A:Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping are optional.
Q4. How to proceed an order for liquid nitrogen container?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
