Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Max Stroke: | 500-4000MM; |
Supply Ability: | 100 Piece/Pieces per Week; | Model Number: | HSG; |
Structure: | Piston Cylinder; | pressure: | 160bar; |
Maximum Stroke: | 4000; | keyword: | dump truck telescopic hydraulic cylinder; |
Place of Origin: | Guangdong China; | Power: | Hydraulic; |
Contamination: | NAS9-12; | Brand Name: | raypoo; |
Body Material: | Aluminum; | Port: | shenzhen; |
Delivery Detail: | Shipped in 7 days after payment; | name: | car lift cylinder; |
size: | 40-250mm; | Shaft Diameter: | 180; |
Packaging Detail: | carton We also could make the package according the customers request . In clude the name plate , the carton pattern .Also include the pallet size , weight of every box ,carton .The design of the outside; | viscosity: | 16-400m㎡; |
Standard or Nonstandard: | Standard; | operating tempearture: | 30-60℃; |

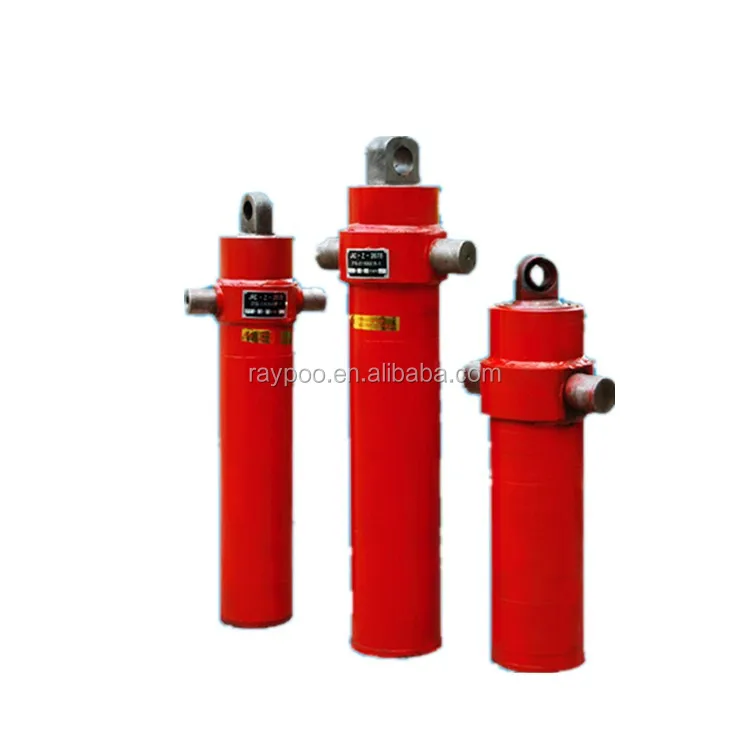

dump truck telescopic hydraulic cylinder parameter:
pressure:160bar bore size: 40-250 max stroke : 500-4000mm
hydraulic single cylinder car lift
1.Technical Specifications :
Bore D/mm | Rod diameter d/mm | Working pressure 16mpa | Max stroke s/mm | |||||
Speed ratio | Thrust/kN | Tension/kN | ||||||
1.33 | 1.46 | 2 | 1.33 | 1.46 | 2 | |||
40 | 25 | 22 | 25 | 20.11 | 15.08 | 14.02 | 12.25 | 500 |
50 | 25 | 28 | 32 | 31.42 | 23.58 | 21.56 | 18.55 | 600 |
63 | 32 | 35 | 45 | 49.88 | 37.01 | 34.48 | 24.43 | 800 |
80 | 40 | 45 | 33 | 80.42 | 60.32 | 54.98 | 42.41 | 2000 |
90 | 45 | 50 | 63 | 101.79 | 76.34 | 70.37 | 51.91 | 2000 |
100 | 50 | 55 | 70 | 125.66 | 94.25 | 87.65 | 64.08 | 4000 |
125 | 63 | 70 | 90 | 196.35 | 146.47 | 134.77 | 94.56 | 4000 |
140 | 70 | 80 | 100 | 246.30 | 184.73 | 165.88 | 120.64 | 4000 |
150 | 75 | 85 | 105 | 282.74 | 212.06 | 191.95 | 144.2 | 4000 |
160 | 80 | 90 | 110 | 321.7 | 241.27 | 219.91 | 169.65 | 4000 |
180 | 90 | 100 | 125 | 407.15 | 305.36 | 281.49 | 210.8 | 4000 |
200 | 100 | 110 | 140 | 502.65 | 376.99 | 350.6 | 256.35 | 4000 |
220 | 110 | 125 | 160 | 608.21 | 456.16 | 411.86 | 286.51 | 4000 |
250 | 125 | 140 | 180 | 785.4 | 589.05 | 539.1 | 378.25 | 4000 |
2.Special design
1) end cushioning
2) integrated displacement
3) integrated proximity switches
4) valve mounting faces
5) flanged cover/bottom construction
6) complete 45 steel design
7) high temperature seals VITON
8) low friction seals
How are orders packed and shipped?
Different products with the suitable package such as carton, wooden box or wooden pallet, to protect the products from the overseas transportation.
Can be customized according to customer requirements
We provide hydraulic systems, hydraulic power pack, hydraulic parts(pumps, valves, motors, cylinders, accumulators and other accessories), pneumatic products (valves, cylinders, fittings and other accussories).
We also provide hydraulic system design and technical consulting
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.
The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.
The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.
The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.
The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.
The products are sold as individual components or integrated into high performanceapplications.
Plant and equipment Photos :
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
